MyFireplaceBlower GFK-160A Fireplace Blower Kit Instruction Manual

შესავალი

This manual provides detailed instructions for the installation, operation, and maintenance of your MyFireplaceBlower GFK-160A Fireplace Blower Kit. This kit is designed to enhance the heat circulation from your fireplace into your living space, improving energy efficiency and comfort. Please read this manual thoroughly before installation and use.

უსაფრთხოების ინფორმაცია

Always disconnect power to the fireplace before attempting any installation, maintenance, or service.
დარწმუნდით, რომ ყველა სადენიანი შეერთება უსაფრთხოა და შეესაბამება ადგილობრივ ელექტრო კოდებს.
Do not operate the blower if any part is damaged or if the power cord is frayed.
Keep children and pets away from the fireplace and blower during operation.
Refer to your fireplace owner's manual for specific safety guidelines related to your fireplace model.

პაკეტის შიგთავსი

ინსტალაციის დაწყებამდე დარწმუნდით, რომ ყველა კომპონენტი ხელმისაწვლელია:

GFK-160A Blower Assembly
ცვლადი სიჩქარის კონტროლი
Thermodisc (Heat Sensor)
Cord Set with 3-prong Power Cord
Magnetically Mounting Base
Hardware (screws, connectors)
3-Prong to 2-Prong Adapter (if applicable)
Installation Instructions (detailed in this manual)

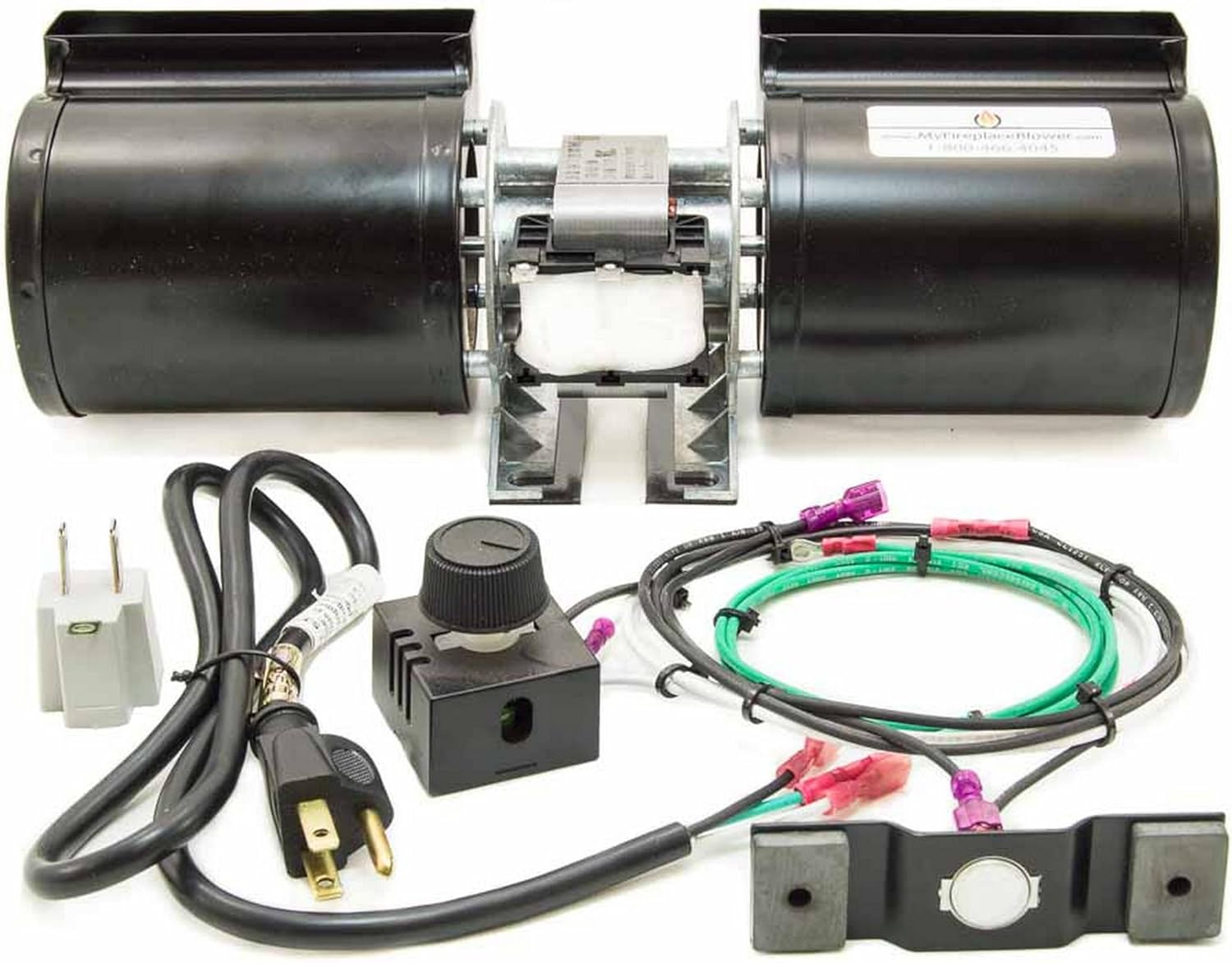

GFK-160A Fireplace Blower Kit components — Image 1: All components included in the GFK-160A Fireplace Blower Kit, including the blower unit, variable speed control, thermodisc, power cord, and mounting hardware.

Table of GFK-160A Fireplace Blower Kit components and quantities — Image 2: A table listing the components of the GFK-160A kit, including Blower Magnetic Mount, Thermodisc/Heat Sensor, Variable Speed Control, Power Cord, 3-Prong to 2-Prong Adapter, Mounting Bracket for Fan, Jumper Wire (Black), and Installation Instructions, each with a quantity of 1.

მახასიათებლები

Sealed Ball Bearing Motor: Engineered for powerful and quiet operation.
გამძლე კონსტრუქცია: Blower housing manufactured in the USA with high-grade materials.
ცვლადი სიჩქარის კონტროლი: Allows adjustment of airflow and noise level.
Automatic Heat Sensor (Thermodisc): Activates and deactivates the blower based on fireplace temperature.
მაღალი ჰაერის ნაკადის გამტარუნარიანობა: 165 Cubic Feet Per Minute (CFM).
მარტივი ინსტალაცია: Streamlined wiring kit and magnetic mounting base for quick setup.

დაყენება და ინსტალაცია

The GFK-160A blower kit is designed for DIY installation in the lower vent space under your fireplace firebox. Follow these steps for proper setup:

უსაფრთხოება პირველ რიგში: Ensure the fireplace is completely cool and disconnect all power to the fireplace unit at the circuit breaker before proceeding.
იპოვნეთ ინსტალაციის ადგილი: Identify the lower vent space beneath the firebox where the blower will be installed. This area is typically designed to accommodate a blower.
Position the Blower: Place the GFK-160A blower assembly within the designated space. The magnetic mounting base allows for flexible positioning. Ensure the blower is stable and does not obstruct any critical fireplace components or vents.
Install Thermodisc (Heat Sensor): Attach the thermodisc to a metal surface inside the fireplace cavity that heats up when the fireplace is in use. The thermodisc will automatically turn the blower on when the temperature rises and off when it cools down.
Connect Variable Speed Control: Mount the variable speed control in an accessible but discreet location, typically near the fireplace opening or within the lower access panel. Connect the blower wiring to the speed control as per the included wiring diagram.
დენის კავშირი: Connect the 3-prong power cord to the variable speed control. If your outlet is a 2-prong type, use the provided 3-prong to 2-prong adapter. Ensure the connection is secure.
უსაფრთხო გაყვანილობა: Route and secure all wiring to prevent it from touching hot surfaces or moving parts. Use cable ties or clips if necessary.
სატესტო ოპერაცია: Restore power to the fireplace. Turn on the fireplace and allow it to heat up. The blower should activate automatically once the thermodisc reaches its set temperature. Adjust the variable speed control to your desired airflow.

Note: For specific fireplace models, consult your fireplace owner's manual for supplemental information regarding blower installation.

Diagram showing fireplace heat circulation with blower — Image 3: A diagram illustrating how the blower circulates air. Room air enters the bottom, is heated by the fireplace, and then pushed out the top by the blower, while exhaust air goes outside.

ოპერაციული ინსტრუქციები

ავტომატური ოპერაცია: Once installed, the thermodisc will automatically engage the blower when the fireplace reaches a sufficient temperature and disengage it as the fireplace cools down.
ჰაერის ნაკადის რეგულირება: Use the variable speed control knob to adjust the fan speed. Turning the knob clockwise increases airflow, while turning it counter-clockwise decreases it. This allows you to balance heat output with noise level.
Post-Fire Operation: The blower may continue to operate for a period after the fire has been extinguished to help dissipate residual heat from the fireplace, ensuring efficient cooling.

მოვლა

Regular maintenance ensures optimal performance and longevity of your blower kit:

დასუფთავება: Periodically inspect the blower for dust and debris accumulation. Disconnect power and use a soft brush or vacuum cleaner to gently clean the fan blades and housing.
ინსპექტირება: Annually inspect all wiring and connections for signs of wear, fraying, or damage. Ensure the magnetic mounting base is still secure.
ძრავა: The sealed ball bearing motor is designed for maintenance-free operation and does not require lubrication.

პრობლემების მოგვარება

პრობლემა	შესაძლო მიზეზი	გამოსავალი
ვენტილატორი არ ირთვება.	No power; Thermodisc not hot enough; Loose connection.	Check power supply and circuit breaker. Ensure fireplace is hot enough to activate thermodisc. Verify all wiring connections are secure.
Blower is too noisy.	High fan speed; Debris in blower; Improper mounting.	Adjust variable speed control to a lower setting. Disconnect power and check for debris. Ensure blower is securely mounted and not vibrating against surfaces.
Blower runs continuously.	Thermodisc malfunction; Fireplace still hot.	Allow fireplace to cool completely. If issue persists, inspect thermodisc for damage or contact support.
შემცირებული ჰაერის ნაკადი.	Low fan speed; Blocked intake/exhaust; Dust accumulation.	Increase fan speed with variable control. Check for obstructions around blower. Clean blower blades and housing.

სპეციფიკაციები

მოდელის სახელი: GFK-160 Blower Fan
პროდუქტის ზომები: 12.8" სიგანე x 4.4" სიმაღლე x 4.87" სიღრმე
ჰაერის ნაკადის მოცულობა: 165 კუბური ფუტი წუთში (CFM)
ძრავის RPM: 3000
ტtage: 115 ვოლტი
Ampსიბრაზე: 1.25 Amps
ვატtage: 120 ვატი
ხმაურის დონე: 64 დეციბელი
ძრავის ტიპი: Brushed, Sealed Ball Bearing
კონტროლის მეთოდი: Touch (via Variable Speed Control)
სამონტაჟო ტიპი: Magnetically Mounted
ინსტალაციის ტიპი: წვრილმანი
ნივთის წონა: 6 ფუნტი
UPC: 755918579529

გარანტია და მხარდაჭერა

The MyFireplaceBlower GFK-160A Fireplace Blower Kit comes with a 1 წლიანი ყოვლისმომცველი გარანტია. ეს გარანტია მოიცავს დეფექტებს მასალასა და სამუშაოზე ნორმალური გამოყენებისას.

For warranty claims, technical assistance, or any questions regarding your product, please contact MyFireplaceBlower LLC directly. Refer to the product packaging or the official MyFireplaceBlower webსაიტი მიმდინარე საკონტაქტო ინფორმაციისთვის.
