Huepar 621CG 360-Degree Green Cross Line Laser Level User Manual

1. უსაფრთხოების ინფორმაცია

Please read and understand all safety information before operating this tool. Failure to follow these instructions may result in laser radiation exposure, electric shock, or serious injury.

ლაზერული უსაფრთხოება

გაფრთხილება: Avoid direct eye exposure to the laser beam. The device is a Class 2 laser product according to IEC/EN60825-1/2014. It is permissible to use the device without further safety precautions. Eye protection is generally ensured by aversion reactions and the blink reflex.

• არ შეხედოთ პირდაპირ ლაზერის სხივს.
• Do not intentionally direct the laser beam at other people or reflective surfaces.
• არ გამოიყენოთ ლაზერული ნიველირი ასაფეთქებელ ატმოსფეროში, მაგალითად, აალებადი სითხეების, გაზების ან მტვრის არსებობისას.
• Keep the laser level out of reach of children.

2. პროდუქტი დასრულდაview

The Huepar 621CG is a versatile laser level designed for various alignment and leveling tasks. It projects a 360-degree horizontal green line, a 140-degree vertical green line, and two red plumb dots (up and down).

Figure 2.1: Huepar 621CG Laser Level in operation, showing 360-degree horizontal line and vertical line with plumb dots.

პაკეტის შიგთავსი

დარწმუნდით, რომ ქვემოთ ჩამოთვლილი ყველა ნივთი შედის თქვენს პაკეტში:

• 1 x Huepar 621CG Green Laser Level
• 1 x მაგნიტური მბრუნავი ბაზა
• 1 x Green Laser Target Plate
• 4 x AA ბატარეები
• 1 x ჩანთა
• 1 x მომხმარებლის სახელმძღვანელო

Figure 2.2: All components included in the Huepar 621CG package.

კომპონენტის იდენტიფიკაცია

სურათი 2.3: დეტალური view of the Huepar 621CG laser level with key components labeled.

• Metal Protective Cover: Protects the laser emitter.
• Laser Window: Where the laser beams exit.
• კლავიატურა: For controlling power and laser modes.
• Pendulum/Transit Lock: Secures the pendulum for transport and enables manual mode.
• ბატარეის განყოფილება: იტევს 4 AA ელემენტს.
• 5/8"-11 Threaded Mount: For heavy-duty tripods.
• 1/4"-20 Threaded Mount: For standard tripods and the magnetic base.

3. დაყენება

3.1 ბატარეის დაყენება

The Huepar 621CG requires 4 AA batteries for operation.

1. Locate the battery compartment on the bottom of the device.
2. გახსენით ბატარეის საფარი.
3. ჩადეთ 4 AA ელემენტი, დარწმუნდით, რომ სწორი პოლარობა (+/-) გაქვთ, როგორც ეს მითითებულია განყოფილებაში.
4. უსაფრთხოდ დახურეთ ბატარეის საფარი.

Figure 3.1: Battery installation and power-on methods.

3.2 მოწყობილობის დამონტაჟება

The 621CG offers multiple mounting options:

• მაგნიტური მბრუნავი ბაზა: Attach the laser level to the magnetic base using the 1/4"-20 thread. The magnetic base can then be attached to metal surfaces or mounted on a tripod.
• სამფეხის მონტაჟი: The device has both 1/4"-20 and 5/8"-11 threaded mounts on its base, allowing direct attachment to standard or heavy-duty tripods.

Figure 3.2: Magnetic base attachment and tripod thread options.

4. ოპერაციული რეჟიმები

4.1 თვითგასწორების რეჟიმი

This mode is used for projecting perfectly level or plumb lines. The device will automatically level itself within its self-leveling range of 3.5°.

1. Unlock the pendulum by sliding the pendulum lock switch to the unlocked position.
2. Press the power button to turn on the device. The laser lines will activate and self-level.
3. If the device is outside its self-leveling range, the laser lines will flash rapidly to indicate it cannot self-level. Adjust the device's position until the lines stop flashing.

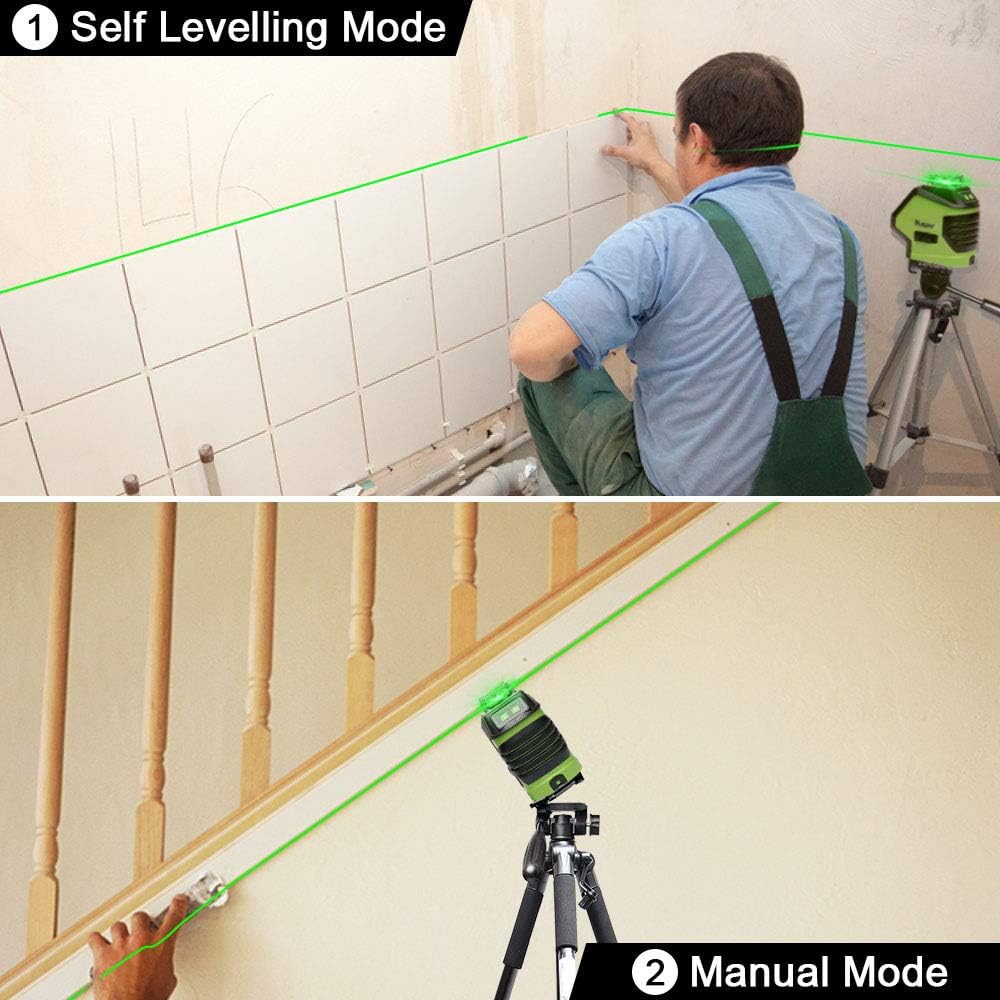

Figure 4.1: Using the laser level in self-leveling mode for tile installation.

4.2 Manual Mode (Tilt Mode)

Manual mode allows you to project laser lines at any angle, useful for tasks like installing stair railings.

1. Lock the pendulum by sliding the pendulum lock switch to the locked position.
2. Press and hold the power button for approximately 3 seconds to turn on the device. The laser lines will activate without self-leveling, allowing for angled projection.
3. The laser lines will not flash in manual mode, indicating that they are not level or plumb.

Figure 4.2: Using the laser level in manual mode for stair railing installation.

4.3 Pulse Mode (Outdoor Mode)

Pulse mode extends the working range of the laser level, especially in bright outdoor conditions, by allowing it to be used with a laser receiver (sold separately).

• In self-leveling mode, short press the 'P' button (or the button with a pulse icon) to activate pulse mode. The indicator light will turn on.
• When pulse mode is active, the laser lines will appear slightly dimmer to the naked eye but are optimized for detection by a compatible Huepar laser receiver (e.g., Huepar LR-6RG).
• To deactivate pulse mode, short press the 'P' button again.

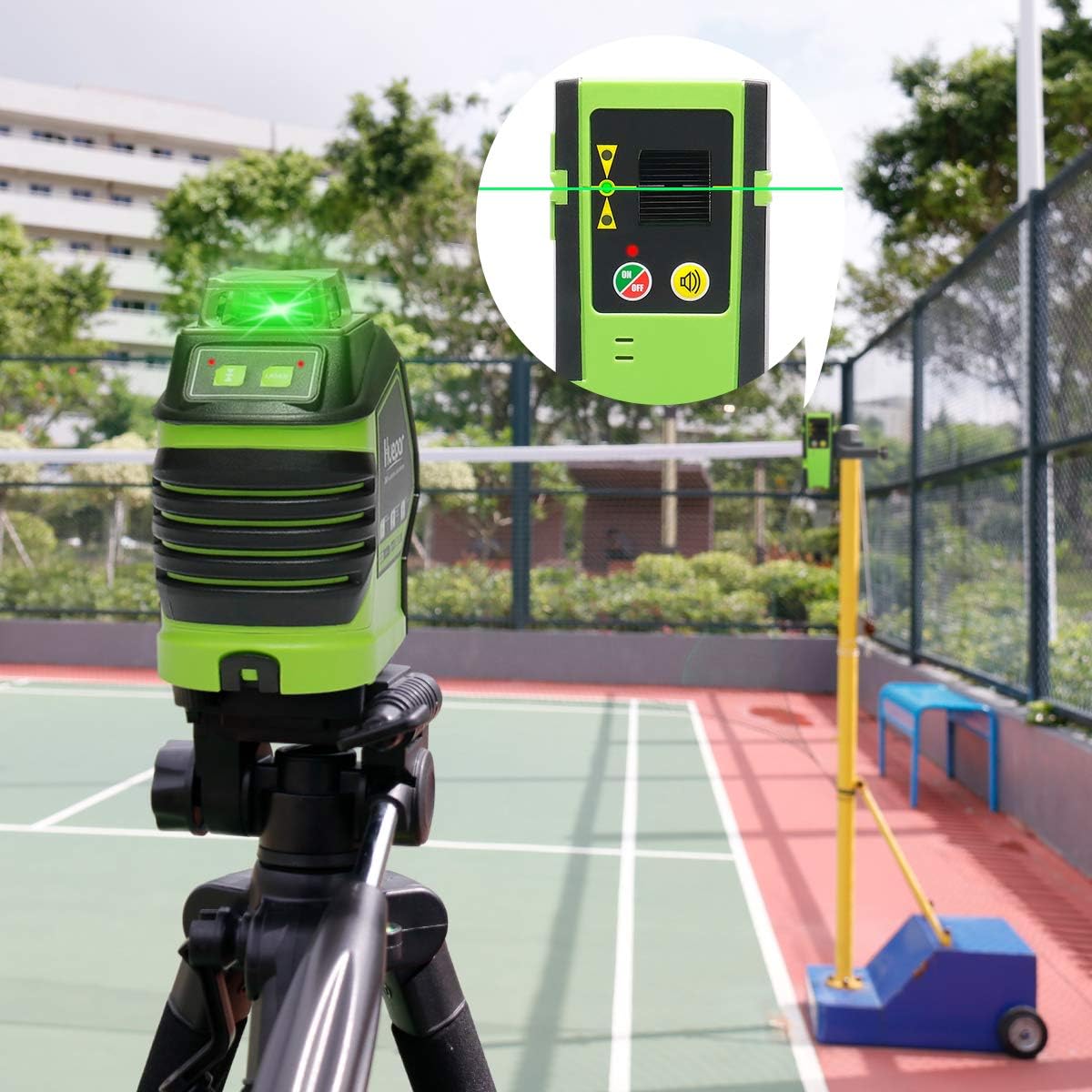

Figure 4.3: Laser level used outdoors, compatible with a receiver in pulse mode.

4.4 Switching Line Combinations

The 621CG allows you to switch between different laser line combinations to suit your specific task.

• In self-leveling mode, short press the power button to cycle through the available laser line combinations:
• Horizontal line + Vertical line + Plumb dots
• Horizontal line only
• Vertical line only
• Horizontal line + Plumb dots
• Plumb dots only

Figure 4.4: Available laser line modes and combinations.

5. სპეციფიკაციები

6. მოვლა

• დასუფთავება: Regularly clean the laser window and the device housing with a soft, damp ქსოვილი. არ გამოიყენოთ აბრაზიული გამწმენდები ან გამხსნელები.
• შენახვა: When not in use for extended periods, remove the batteries to prevent leakage. Store the device in its carry pouch in a dry, cool place, away from direct sunlight and extreme temperatures.
• კალიბრაცია: While the device is factory-calibrated, significant impacts or prolonged use may affect its accuracy. If you suspect a calibration issue, contact Huepar support for assistance.

7. Დიაგნოსტიკა

• ლაზერული ხაზები სწრაფად ციმციმებს: This indicates the device is outside its self-leveling range. Adjust the device's position until it is on a more level surface.
• No laser lines or weak laser:
  • შეამოწმეთ ბატარეის დონე და შეცვალეთ საჭიროების შემთხვევაში.
  • Ensure the pendulum lock is in the correct position for the desired mode (unlocked for self-leveling, locked for manual).
  • Clean the laser window if it is obstructed.
• მოწყობილობა არ ირთვება:
  • Verify batteries are inserted correctly and have sufficient charge.
  • Ensure the power button is pressed firmly or held for manual mode activation.

დამატებითი დახმარებისთვის, გთხოვთ, იხილოთ გარანტიისა და მხარდაჭერის განყოფილება.

8. გარანტია და მხარდაჭერა

Huepar products are designed and manufactured to the highest quality standards. For warranty information, technical support, or service inquiries, please contact Huepar customer service through the official webსაიტი ან თქვენი შესყიდვების პლატფორმა.

Please have your model number (621CG#EU) and purchase details ready when contacting support.
