Elecbee M12 8-Pin A-Coded Male Socket Instruction Manual

შესავალი

This manual provides detailed instructions for the proper installation, operation, and maintenance of the Elecbee M12 8-Pin A-Coded Male Socket. This connector is engineered for reliable and secure electrical connections in demanding industrial environments.

• M12 8-Pin A-Coded Male Socket: Designed for precise and secure connections in industrial automation, control systems, and signal transmission applications.
• Straight Back-Mount Design: Facilitates easy installation onto panels or enclosures, offering a stable and clean attachment point for cable connections.
• 0.2M Cable Length: Ideal for short-distance connections in confined spaces, minimizing cable clutter.
• Solder-Termination: Ensures secure and reliable wiring for stable electrical performance even in high-vibration or harsh environments.
• წყალგაუმტარი კონსტრუქცია: With a waterproof design, this M12 connector can withstand exposure to moisture and dust, making it suitable for outdoor or rugged industrial applications requiring durable connectivity.

უსაფრთხოების ინფორმაცია

Adhere to the following safety guidelines during installation and operation to prevent injury or damage to equipment.

• Always disconnect power to the system before performing any installation, wiring, or maintenance on the connector.
• Ensure proper grounding of all connected equipment to prevent electrical shock.
• Use only appropriate tools for installation to avoid damaging the connector or associated cables.
• Verify all electrical connections are secure and correctly insulated before applying power.
• არ გადააჭარბოთ მითითებულ მოცულობასtage and current ratings of the connector.

პროდუქტი დასრულდაview

The Elecbee M12 Male Socket is a robust, waterproof connector designed for industrial applications requiring reliable signal transmission. It features an 8-pin A-coded male interface and a straight back-mount design for seamless panel integration.

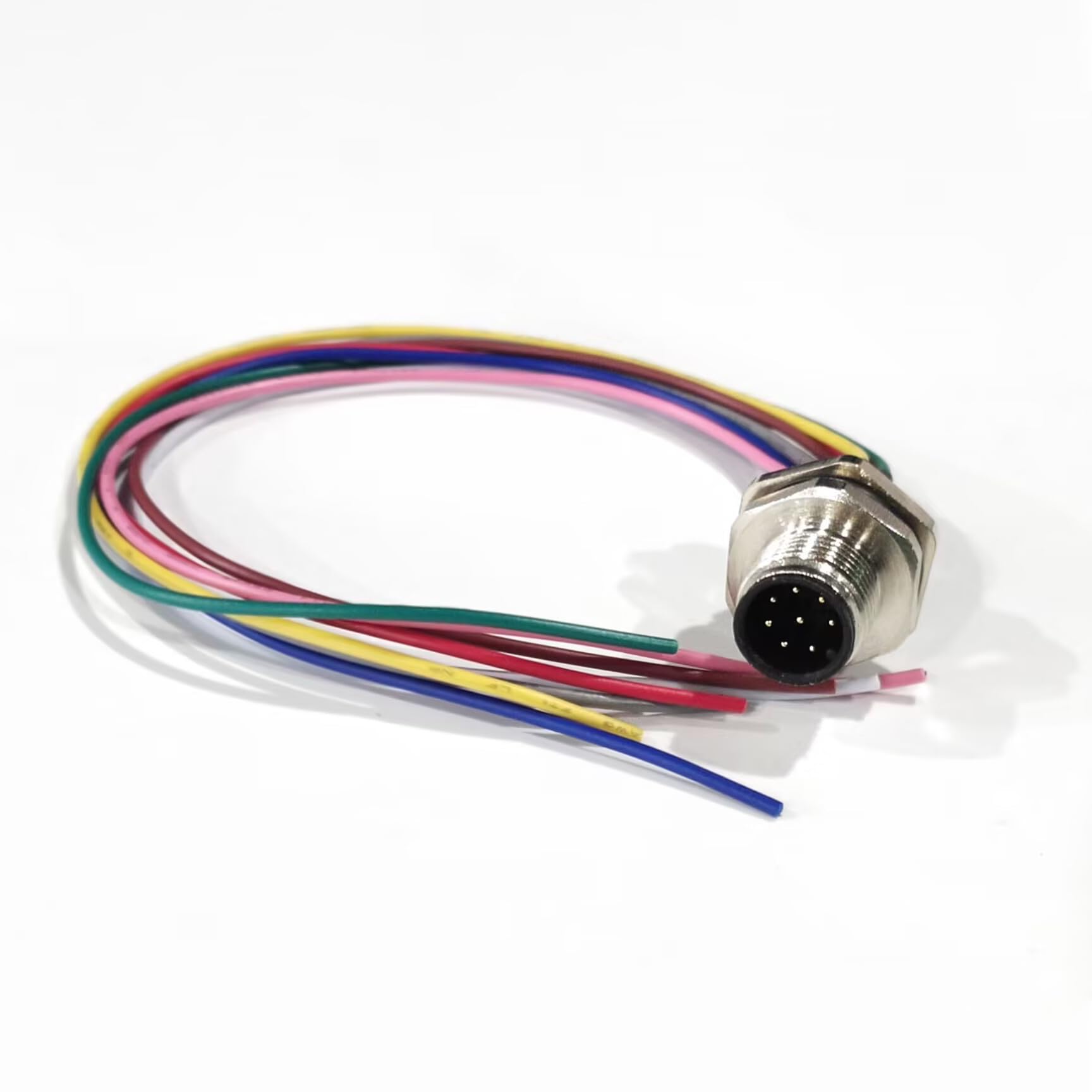

Image: The Elecbee M12 Male Socket with its pre-attached 0.2M multi-colored cable, showcasing the 8-pin male interface and the back-mount threading.

Image: Detailed technical drawing illustrating the dimensions, pin assignment (P1(M12 male) with pin 1 white, pin 2 brown, etc.), and construction components of the M12 Male Socket.

ინსტალაცია

Follow these steps for proper installation of the M12 Male Socket.

1. პანელის მონტაჟი:
   • Identify the desired mounting location on your panel or enclosure. Refer to the technical drawing in the Product Overview section for recommended panel cut-out dimensions.
   • Insert the threaded portion of the M12 socket through the prepared hole from the front of the panel.
   • Secure the connector from the rear using the provided nut, ensuring a tight fit to maintain the waterproof seal.


   სურათი: გვერდი view of the M12 connector, highlighting the threaded section and the sealing ring designed for secure panel mounting.

2. Wiring (Solder Termination):
   • The connector comes with a 0.2-meter cable with pre-stripped ends.
   • Identify the correct wire for each pin according to the pin assignment diagram (refer to the technical drawing in the Product Overview განყოფილება).
   • Carefully solder each wire to its corresponding connection point. Ensure strong, clean solder joints.
   • Insulate each solder joint if necessary, though the connector's design provides some protection.


   Image: The rear of the M12 connector, illustrating the individual wires soldered to their respective pins, protected by heat shrink tubing.

3. კავშირის შემოწმება: After wiring, visually inspect all connections for proper soldering and insulation before applying power.

ოპერაცია

The Elecbee M12 Male Socket functions as a passive electrical connector. Its operation involves establishing and maintaining a secure connection with a compatible M12 female connector.

• შეჯვარება: Align the M12 male socket with the corresponding M12 female connector. Ensure the A-coding aligns correctly to prevent damage to the pins.
• დაცვა: Gently push the connectors together and then tighten the coupling nut on the female connector until it is finger-tight. Avoid overtightening, as this can damage the threads or sealing elements.
• სიგნალის გადაცემა: Once securely connected, the connector facilitates the reliable transmission of electrical signals or power between the connected devices.

მოვლა

Regular maintenance ensures the longevity and reliable performance of your M12 connector.

• დასუფთავება: Periodically inspect the connector for dirt, dust, or debris. Clean the contact pins and mating surfaces using a soft, lint-free cloth and a suitable electrical contact cleaner.
• ინსპექტირება: Check for any signs of physical damage, such as cracks, bends, or corrosion on the connector body, pins, and cable.
• წყალგაუმტარი ბეჭედი: Ensure the sealing ring (O-ring) is intact and free from cracks or damage, especially if the connector is used in wet or dusty environments. Replace if necessary to maintain the IP67 rating.
• კაბელის მთლიანობა: Inspect the attached cable for cuts, abrasions, or kinks that could compromise signal integrity or safety.

პრობლემების მოგვარება

იხილეთ ქვემოთ მოცემული ცხრილი გავრცელებული პრობლემებისა და მათი შესაძლო გადაწყვეტილებებისთვის.

სპეციფიკაციები

Key technical specifications for the Elecbee M12 8-Pin A-Coded Male Socket:

ოფიციალური პროდუქტის ვიდეოები

The following videos provide additional visual guidance and information about Elecbee M12 connectors.

საგარანტიო ინფორმაცია

This product is covered by a standard return policy. For specific warranty details, please refer to the purchase documentation or contact customer support. A 30-day return period is typically offered for this product.

მომხმარებელთა მხარდაჭერა

For technical assistance, troubleshooting, or warranty inquiries, please contact Elecbee customer support.

Manufacturer: Shenzhen Renhotec Technology Electronics Co., Ltd

დამატებითი დახმარებისთვის ეწვიეთ Elecbee Store on Amazon.
