Glem Gas Oven Grill Resistance 091V60 1400W 5.G09.0067 Instruction Manual

1. შესავალი

This manual provides essential information for the safe and correct installation, operation, and maintenance of the Glem Gas Oven Grill Resistance, part number 5.G09.0067, model 091V60. This component is a replacement grill heating element designed for specific Glem Gas oven models, operating at 230V with a power output of 1400 Watts. Please read these instructions thoroughly before attempting any installation or repair to ensure safety and optimal performance.

უსაფრთხოების მნიშვნელოვანი შენიშვნა: Installation and replacement of oven components should only be performed by qualified personnel. Always disconnect the oven from the main power supply before beginning any work to prevent electric shock.

2. დაყენება და ინსტალაცია

This section outlines the general procedure for replacing the grill resistance. Specific steps may vary slightly depending on your oven model. Refer to your oven's original service manual for detailed instructions.

1. დენის გათიშვა: Ensure the oven is completely disconnected from the electrical supply at the main circuit breaker. Verify there is no power to the appliance.
2. Access the Resistance: Open the oven door. Depending on the oven model, the grill resistance may be secured by screws from the front or accessed from the rear panel of the oven. Remove any protective covers or panels as necessary.
3. გათიშვა გაყვანილობა: Carefully note the position and connection of the existing wiring to the old resistance. Take a photograph if necessary. Disconnect the electrical terminals from the old resistance.
4. Remove Old Resistance: Unscrew or unclip the old grill resistance from its mounting points. Gently pull it out of the oven cavity.
5. Install New Resistance: Insert the new Glem Gas Grill Resistance (part number 5.G09.0067) into position. Ensure it is correctly aligned with the mounting holes. Secure it with the screws or clips previously removed.
6. გაყვანილობის ხელახლა შეერთება: Reconnect the electrical terminals to the new resistance, ensuring they are firmly attached and match the original configuration.
7. ხელახლა შეკრება: Replace any protective covers or panels removed earlier.
8. Power Reconnection and Test: Restore power to the oven. Perform a test run of the grill function to ensure the new resistance heats up correctly.

თავსებადი ღუმელის მოდელები: This resistance is compatible with numerous Glem Gas oven models, including but not limited to: A664GC, A664GI, A664NA, A664VI, A664VX, A66ACF, A66ACF2, A66ACF3, A66AIF, A66AIF2, A66AIF3, A66ARN, A66BIF, A66BIF2, A66BIF3, A66BXF, A66BXF2, A66BXF3, A66VI, AER96AC, AER96AC3, AER96AI3, AER96AX, AER96AX3, AER96PC, AER96PX, AR964VI, AR965GC, AR965GI, AR965GX, AR96ACL, AR96ACL2, AR96AIL, AR96AIL2, AR96AXL, AR96AXL2, AR96GIF, AR96GIF2, AR96GIF3, AR96TCF3, AR96TIF3, AR96TXF3, B642AX, B66ACN, B66AIN, B66AXN, BO473EA/N, BO693PF/L, C66ADR, C66AER, C66AUR, C66AYR, DG66VI, E66AIN, E66AXN, E66AXZ, E66BIR, E66BIZ, EA66ARN, EB66ACL, EB66ACS, EB66AIF, EB66AIL, EB66AIN, EB66AIS, EB66AIZ, EB66AXF, EB66AXL, EB66AXN, EB66AXS, EB66AXZ, EB66PXL, ER96ACL, ER96ACS, ER96ACZ, ER96AIL, ER96AIS, ER96AXL, ER96AXS, ER96AXZ, ER96KIS, ER96PIS, ER96PXS, G66AIR, G66AXR, G76TIR, GCA66FWH, GP96TI, GP96TX, HT66AIC, HT66AIF, HT66AIR, HT76TIC, HT76TIR, I66AXR, L66AXN, M664VI, M664VIC, M66BIF, M66BIF-, M765VI, M765VIC, M76GIF, M76GIF-, M96PTN, M96PXN, MP96GI, MP96GI-, MT66BI, MT76GI, N66AIN, N66AIS, N66AXN, N66AXS, N66PIS, N66PXN, N66PXS, P96ABN, P96ABZ, P96AIN, P96AXN, P96AXZ, P96TBN, P96TBZ, P96TCN, P96TIZ, P96TXN, R96AIN, R96AIZ, R96AXN, R96AXZ, R96TCN, R96TCZ, R96TIN, R96TIZ, R96TXN, R96TXZ, RC96PCS, RC96PXS, ST664VI, T66AIR, T66AXR, T66BIR, T66BIZ, T76GIR, T76TIR, T76TXR, TP96TI, TP96TIZ, U664VI, U664VX, U66BIF, U66BIF2, U66BIF3, U66BXF, U66BXF2, U66BXF3, U765VI, UA66BR, UR965VI, UR965VX, UR96BI, UR96BI2, UR96BX, UR96BX2, UR96GC, UR96GC2, UR96GI, UR96GI2, UR96GI3, UR96GX, UR96GX2, UR96GX3, WW66A, WW66C, WW66I, WW66I-2, WW66I-3, WW66I-3-, WW66IB, WW66IB-2, WW66IB-3, WW66IB-3-, WW66X, WW66XB.

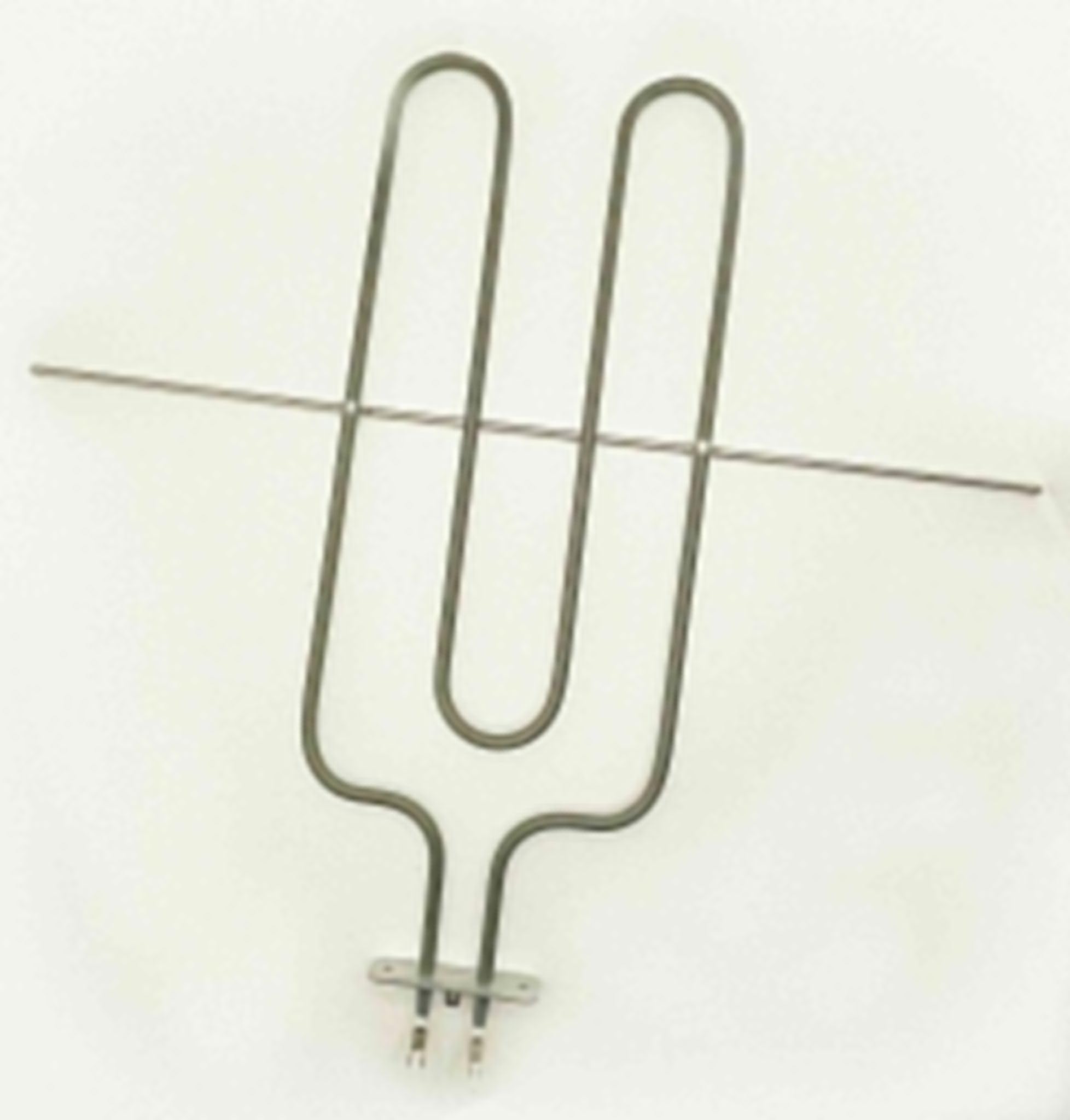

Image 1: The Glem Gas Oven Grill Resistance (part number 5.G09.0067). This image shows the heating element with its electrical terminals and mounting plate. The part number "5.G09.0067" and "SAHTERM 230V" are visible on the metal plate.

3. ოპერაციული პრინციპები

The grill resistance is a crucial component for the grilling function of your Glem Gas oven. When activated, the electrical current flows through the resistance wire, causing it to heat up and emit radiant heat downwards onto the food. This process is commonly used for browning, toasting, or cooking food from the top.

This resistance supports ovens with features such as გრილის მომზადება, allowing for intense top-down heat, and may be compatible with ovens featuring თვითწმენდა functions, where high temperatures are used to incinerate food residues.

4. მოვლა

The grill resistance itself requires minimal direct maintenance. However, proper care of your oven will prolong the life of all its components, including the resistance.

• Regular Oven Cleaning: Keep the oven interior clean to prevent grease and food splatters from accumulating on the resistance. Excessive build-up can lead to uneven heating or premature failure. Always ensure the oven is cool and disconnected from power before cleaning.
• მოერიდეთ ფიზიკურ დაზიანებას: Be careful not to strike or bend the resistance when placing or removing oven racks, trays, or food items.
• შეამოწმეთ კავშირები: Periodically, and only when the oven is disconnected from power, inspect the electrical connections to the resistance for any signs of corrosion or looseness.

5. Დიაგნოსტიკა

If your oven's grill function is not working correctly, the grill resistance may be faulty. Here are common symptoms and potential solutions:

• გრილი არ თბება: If the grill element does not glow red or produce heat when the grill function is selected, the resistance may have failed. This often indicates an open circuit within the element.
• Uneven Heating During Grilling: If only parts of the grill element heat up, or if food is cooking unevenly under the grill, sections of the resistance may be damaged.
• ხილული დაზიანება: Inspect the resistance for any visible breaks, cracks, or severe warping.

If any of these issues occur, and after verifying the oven's power supply and control settings are correct, it is likely that the grill resistance needs to be replaced. Consult a qualified technician for diagnosis and replacement if you are unsure.

6. სპეციფიკაციები

7. ინფორმაცია გარანტიის შესახებ

Specific warranty terms for this replacement part are typically provided by the seller or the original manufacturer at the time of purchase. Please retain your proof of purchase for any warranty claims. For detailed warranty information, refer to the documentation provided with your purchase or contact the seller directly.

8. მხარდაჭერა

For further assistance, technical support, or inquiries regarding Glem Gas spare parts, please contact the supplier or manufacturer. You may also send a message with your product's serial number and the required spare part to the following WhatsApp number:

WhatsApp: +39 3892870249

When contacting support, please provide the full model number of your Glem Gas oven and the part number (5.G09.0067) of the resistance for quicker assistance.
