Generic Wardrobe Mirror JCDCFHFAL-100*35CM Instruction Manual

1. უსაფრთხოების ინფორმაცია

გთხოვთ, ინსტალაციამდე და გამოყენებამდე ყურადღებით წაიკითხოთ ყველა ინსტრუქცია. შეინახეთ ეს სახელმძღვანელო მომავალი მითითებისთვის.

• სიფრთხილით მოპყრობა: Mirrors are fragile. Always handle the mirror with care to prevent breakage.
• ინსტალაცია: Ensure the mounting surface (wardrobe panel) is sturdy enough to support the weight of the mirror and its mechanism. Use appropriate screws and tools. If unsure, consult a professional.
• Explosion-Proof Film: This mirror is equipped with an explosion-proof film to prevent glass shards from scattering if the mirror breaks. However, avoid impacts that could damage the mirror.
• ბავშვები და შინაური ცხოველები: Keep children and pets away from the installation area during setup. Ensure the mirror is securely mounted to prevent accidental falls.
• მოძრავი ნაწილები: The sliding and rotating mechanisms contain moving parts. Keep fingers clear when operating to avoid pinching.

2. პროდუქტი დასრულდაview

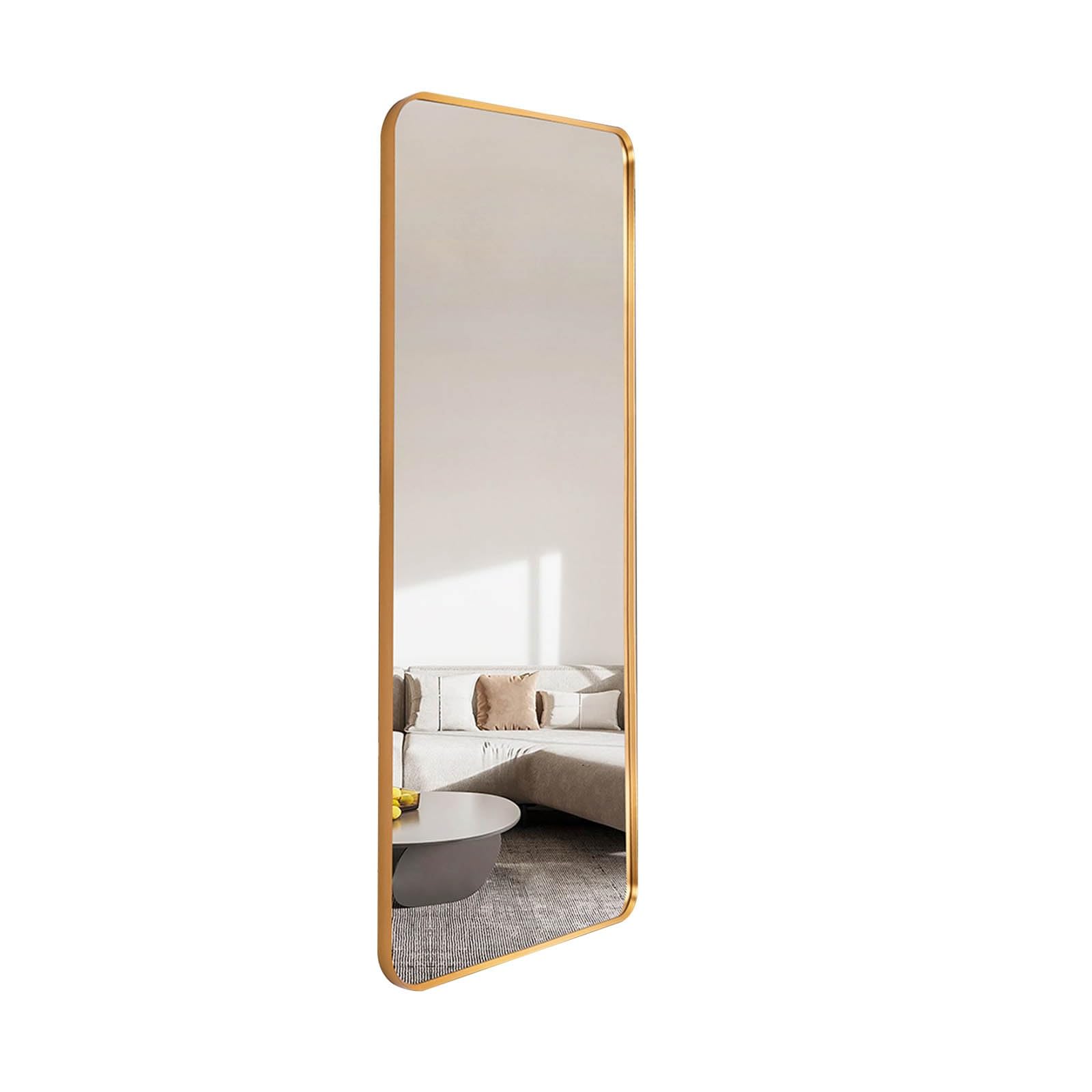

The Generic Wardrobe Mirror is a full-length, built-in dressing mirror designed for space-saving convenience within a wardrobe. It features a durable aluminum alloy frame and a high-definition silver mirror with an explosion-proof film for safety.

• ჩარჩო მასალა: Aluminium alloy, thickened for durability and resistance to deformation.
• Mirror Quality: Float glass with no distortion, providing 99% image reduction for a true reflection.
• სივრცის დაზოგვის დიზაინი: Slim and lightweight, ideal for small spaces as it integrates into your wardrobe.
• მოცურების მექანიზმი: Features a mute, three-section track for flexible and smooth push-and-pull operation.
• უსაფრთხოების ფუნქცია: Equipped with an explosion-proof film to contain glass fragments in case of breakage.

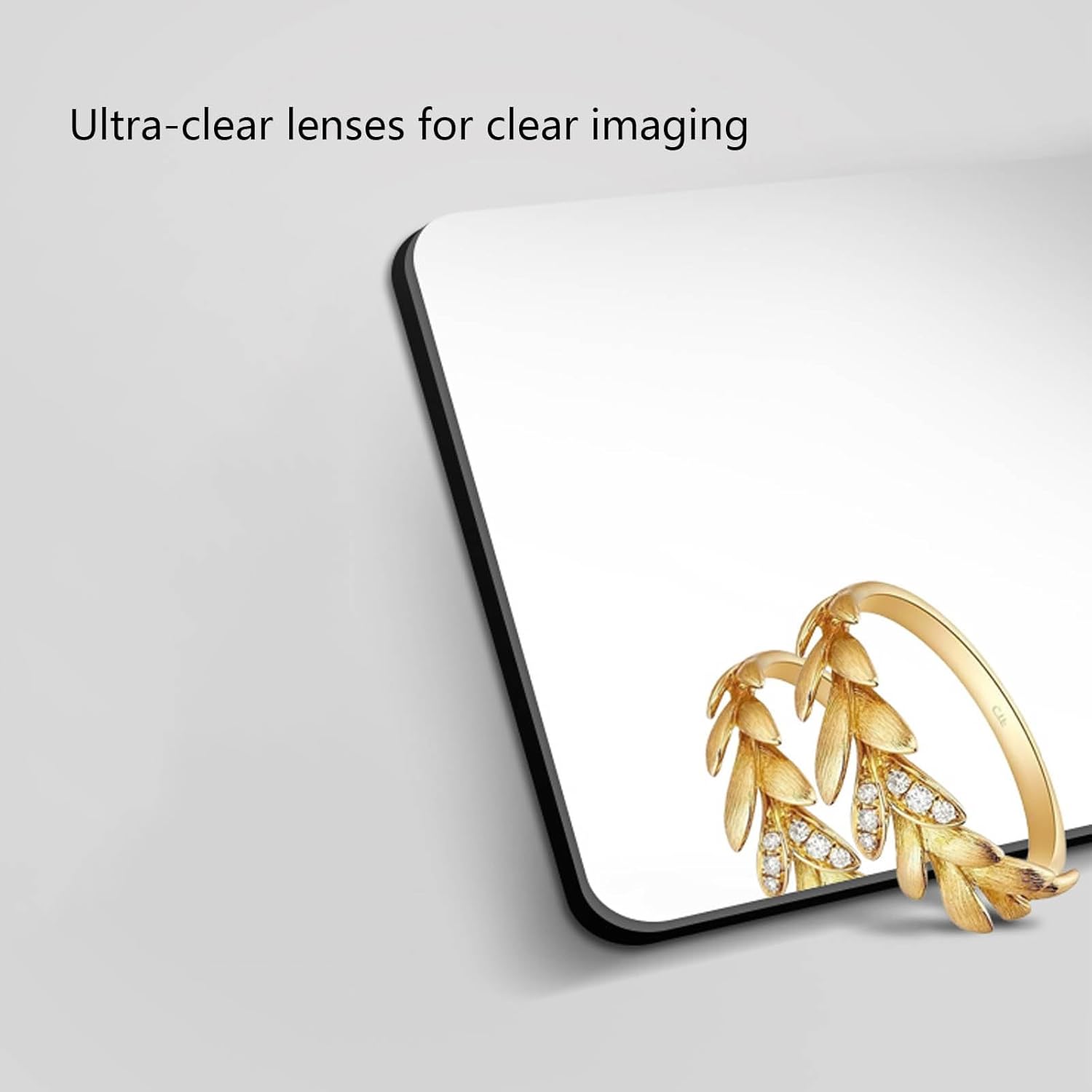

Image 2.1: Ultra-clear lenses for clear imaging, ensuring a true reflection.

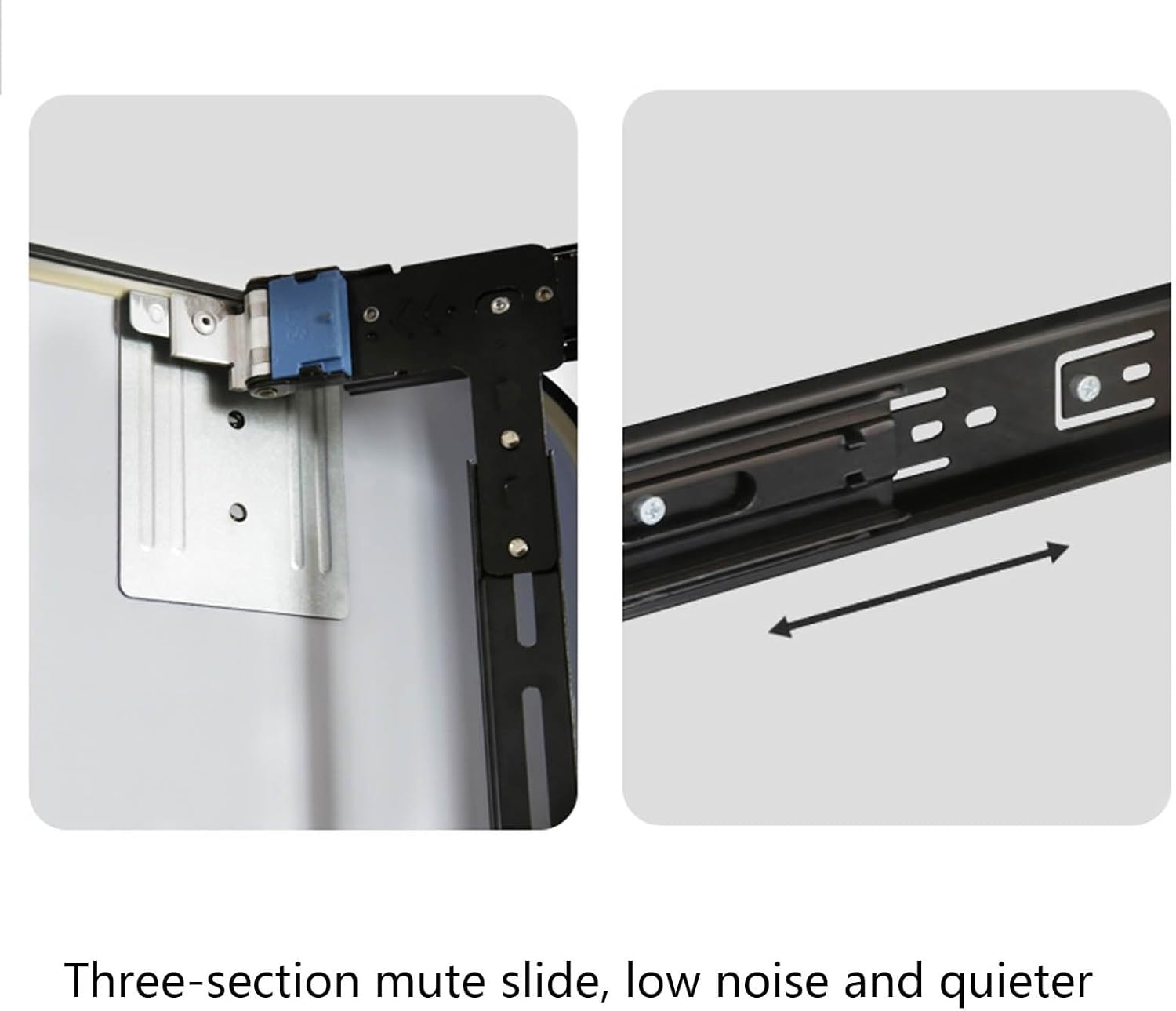

Image 2.2: The three-section mute slide mechanism provides low noise and quiet operation.

3. დაყენება და ინსტალაცია

This mirror is designed for fixed screw installation within a wardrobe. It can be installed on either the left or right side of the wardrobe interior.

3.1 პაკეტის შიგთავსი

• Wardrobe Mirror (1)
• Mounting Hardware (screws, tracks)

3.2 საჭირო ინსტრუმენტები

• საზომი ლენტი
• ფანქარი
• საბურღი
• Screwdriver
• დონე

3.3 ინსტალაციის ეტაპები

1. გაზომეთ და მონიშნეთ: Determine the desired height and position inside your wardrobe. Ensure there is enough clearance for the mirror to slide and rotate. Use a measuring tape and pencil to mark the positions for the mounting tracks. Refer to the dimensions image for guidance.
2. Attach Tracks: Align the top and bottom mounting tracks with your marks. Use a level to ensure they are perfectly horizontal and vertical. Secure the tracks to the wardrobe interior using the provided screws and a drill/screwdriver.
3. სარკის დამონტაჟება: Carefully attach the mirror assembly to the installed tracks. Ensure it slides smoothly into place. The mechanism is designed for easy integration.
4. სატესტო ოპერაცია: Gently slide and rotate the mirror to ensure all movements are smooth and unobstructed. Check for stability.

Image 3.1: Installation diagram showing mirror dimensions and mounting clearances (e.g., 17cm, 35cm, 4.5cm, 52cm).

4. საოპერაციო ინსტრუქციები

The wardrobe mirror offers flexible positioning to suit your needs.

• Sliding Function: Gently push or pull the mirror along its track to extend it out from the wardrobe or retract it back in. The mute track ensures smooth and quiet movement.
• Rotatable Function: Once extended, the mirror can be rotated to adjust the viewing angle. This allows for a full-length view from various positions.
• Shrinkable Function: The mirror can be fully retracted into the wardrobe when not in use, saving space and keeping it protected.

Image 4.1: Demonstrates the mirror's stretchable, rotatable, and shrinkable capabilities for versatile use.

5. მოვლა

Proper maintenance will ensure the longevity and clarity of your mirror.

• სარკის გაწმენდა: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into the frame edges. Wipe gently until clean and streak-free.
• ჩარჩოს გაწმენდა: Wipe the aluminum alloy frame with a soft, damp ქსოვილი. მოერიდეთ უხეში ქიმიკატების ან აბრაზიული საწმენდების გამოყენებას, რომლებმაც შეიძლება დააზიანოს საფარი.
• ბილიკის მოვლა: Periodically check the sliding tracks for dust or debris. Wipe them clean with a dry cloth. Avoid applying lubricants unless specifically recommended, as they can attract more dust.
• ინსპექტირება: Regularly inspect the mounting screws and tracks to ensure they remain secure. Tighten any loose screws as needed.

6. Დიაგნოსტიკა

If you encounter any issues with your wardrobe mirror, refer to the following common problems and solutions:

7. სპეციფიკაციები

Image 7.1: Available mirror sizes: 100cm, 110cm, 120cm length by 35cm width.

8. გარანტია და მხარდაჭერა

For warranty information or technical support, please refer to the retailer where the product was purchased or contact Generic customer service through their official channels. Please have your model number (JCDCFHFAL-100*35CM) and purchase date available when contacting support.
