BG Electrical 882P-01 Double Round Push Button Intelligent Dimmer Light Switch User Manual

1. შესავალი

This manual provides essential information for the safe installation, operation, and maintenance of your BG Electrical 882P-01 Double Round Push Button Intelligent Dimmer Light Switch. Please read these instructions carefully before installation and retain them for future reference.

The BG Electrical 882P-01 is a white moulded double intelligent LED dimmer switch with a 2-way on/off function, designed for modern electrical installations.

Image: The BG Electrical 882P-01 Double Round Push Button Intelligent Dimmer Light Switch, featuring a white moulded front plate and two rotary push-button controls.

2. უსაფრთხოების ინფორმაცია

• ელექტრო უსაფრთხოება: Installation must be carried out by a qualified electrician in accordance with national wiring regulations. Always switch off the mains electricity supply at the consumer unit/fuse box before commencing any electrical work.
• თავსებადობა: Ensure the dimmer switch is compatible with your lighting load (LED, halogen, CFL, incandescent). Refer to the specifications section.
• გადატვირთვისაგან დაცვა: This dimmer includes overload protection. Do not exceed the maximum wattagსიმძლავრე 200 ვატია.
• გარემოსდაცვითი: This product is designed for indoor use only. Keep away from moisture and extreme temperatures.

3. პროდუქტის მახასიათებლები

• დიზაინი: Slim, white moulded front plate with soft rounded corners and screw caps for a sleek appearance.
• ანტიმიკრობული თვისებები: Features anti-microbial properties to reduce bacterial development on touch surfaces.
• Intelligent Dimming: Compatible with LED, halogen, compact fluorescent (CFL), and incandescent lamps. Intelligent trailing edge technology ensures a lower minimum load and flicker-free dimming.
• კონტროლი: Rotary dimmer control with push on/off function.
• 2-Way Switching: Supports 2-way switching, allowing control from two locations.
• დაცვა: Equipped with lower minimum LED load and overload protection for enhanced safety and performance.

4. ინსტალაცია (Setup)

1. მომზადება: Ensure the mains electricity supply is switched off at the consumer unit/fuse box. Use a voltage ტესტერი, რომელიც ადასტურებს, რომ წრე არ არის.
2. Back Box Requirement: This dimmer switch requires a 25mm deep back box for mounting.
3. გაყვანილობა: Connect the wiring according to the diagram provided with the product. The terminals are screw-type. Ensure all connections are secure.
4. მონტაჟი: Secure the dimmer switch to the back box using the provided screws. The design includes retained screws for ease of installation.
5. დასრულება: Attach the screw caps for a clean, sleek appearance.
6. ჩართვა: Once installation is complete and all connections are checked, restore the mains electricity supply.

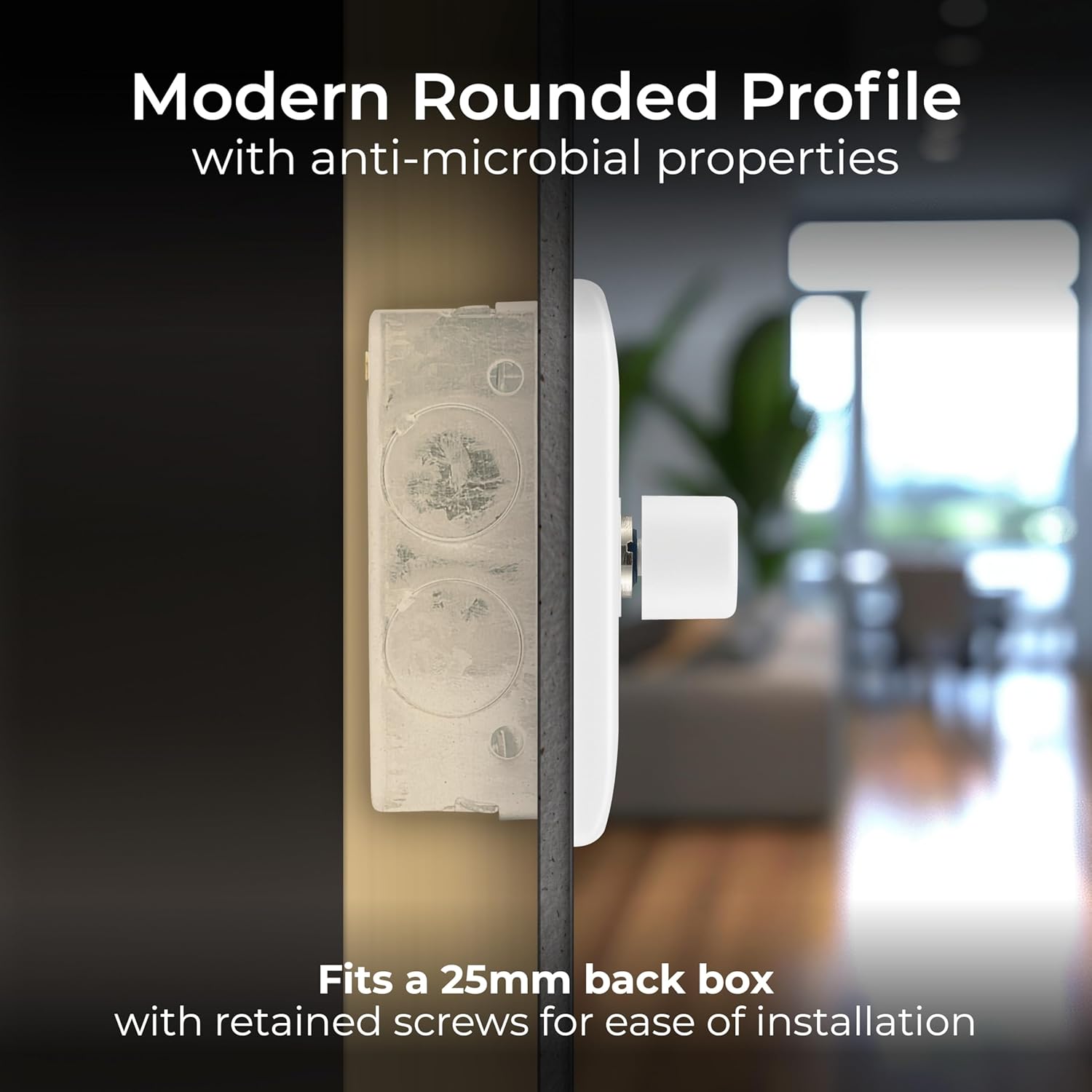

სურათი: გვერდი view of the dimmer switch demonstrating its fit into a standard 25mm deep back box, ensuring proper depth for installation.

Image: A diagram showing a typical 2-way switching setup, where the dimmer switch can control a light from two different locations, such as at the top and bottom of a staircase.

5. საოპერაციო ინსტრუქციები

• ჩართვა/გამორთვა: Press the round button firmly to switch the light on or off.
• Dimming: Rotate the round button clockwise to increase light intensity and counter-clockwise to decrease light intensity. The dimmer operates silently.
• თავსებადობა: This intelligent dimmer is suitable for various lamp types including GU10, E27, Candle, and Golfball bulbs.

Image: Close-up of the dimmer switch illustrating the rotary control for dimming and the push function for on/off operation.

Image: Visual representation of the dimmer switch's compatibility with various light bulb types, including GU10, E27, Candle, and Golfball, highlighting its versatility for modern lighting systems.

6. მოვლა

• დასუფთავება: To clean the dimmer switch, wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• ინსპექტირება: Periodically check for any signs of damage or loose connections. If any issues are found, switch off the power and consult a qualified electrician.
• Antimicrobial Surface: The antimicrobial properties are inherent to the material and do not require special maintenance beyond regular cleaning.

7. Დიაგნოსტიკა

• Light Not Dimming/Flickering: Ensure the connected bulbs are dimmable and compatible with trailing edge dimmers. Check the total wattage of the bulbs does not exceed the dimmer's maximum rating (200W) and is above the minimum load.
• შუქი არ ირთვება: Check the mains power supply. Verify all wiring connections are secure. Ensure the bulb is not faulty.
• Dimmer Feels Warm: It is normal for dimmer switches to generate some heat during operation. If it becomes excessively hot or emits a burning smell, immediately switch off the power and consult a qualified electrician.
• Internal Space Issues: If the dimmer does not fit into the wall box, ensure a 25mm deep back box is used. Some older or non-standard back boxes may be too shallow.

8. სპეციფიკაციები

9. გარანტია და მხარდაჭერა

BG Electrical Nexus products are guaranteed for 25 years against defective materials and workmanship. This warranty provides peace of mind regarding the quality and durability of your dimmer switch.

For technical support or warranty claims, please contact BG Electrical customer service. Contact details can typically be found on the manufacturer's webადგილზე ან პროდუქტის შეფუთვაზე.
