HEWLETT-PACKARD 8GB DDR3 1333MHZ PC3-10600 ECC Registered DIMM Memory Module User Manual

1. შესავალი

This manual provides essential information for the proper installation, operation, and maintenance of your HEWLETT-PACKARD 8GB DDR3 1333MHZ PC3-10600 ECC Registered DIMM Memory Module (P/N: 500205-571). This memory module is designed for use in compatible server systems to enhance performance and reliability. Please read this manual thoroughly before installation and retain it for future reference.

2. უსაფრთხოების ინფორმაცია

Always observe the following safety precautions to prevent damage to the memory module, the host system, and to ensure personal safety:

• ელექტროსტატიკური განმუხტვისგან (ESD) დაცვა: Memory modules are sensitive to static electricity. Always wear an anti-static wrist strap or frequently touch a grounded metal object before handling the module.
• Გამორთვა: Ensure the host system is completely powered off and disconnected from the power source before installing or removing the memory module.
• სიფრთხილით მოპყრობა: Hold the memory module by its edges. Avoid touching the gold connector pins or the integrated circuits (ICs) on the module.
• თავსებადობა: Verify that your server system supports DDR3 ECC Registered DIMMs and the specified capacity and speed before installation.

3. პროდუქტი დასრულდაview

The HEWLETT-PACKARD 8GB DDR3 1333MHZ PC3-10600 ECC Registered DIMM is a high-performance memory solution designed for server environments. It features Error-Correcting Code (ECC) for data integrity and is a Registered (Buffered) module, which enhances stability in systems with a large number of memory modules. This module operates at a speed of 1333MHz (PC3-10600) and has a 240-pin form factor.

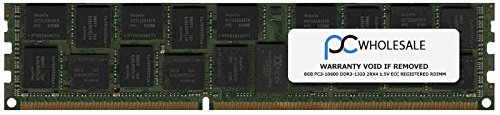

სურათი 1: HEWLETT-PACKARD 8GB DDR3 ECC Registered DIMM Memory Module. This image shows the general appearance of the memory module, highlighting its form factor and integrated circuits.

4. დაყენება და ინსტალაცია

Follow these steps carefully to install the memory module into your compatible server system:

1. მოამზადეთ სისტემა:
   • Shut down the server completely.
   • Disconnect the power cord and any other cables connected to the server.
   • Open the server chassis according to the manufacturer's instructions.
   • Wear an anti-static wrist strap and connect it to a grounded metal part of the server chassis.
2. Locate DIMM Slots: Identify the available DIMM slots on the server motherboard. Consult your server's documentation for the correct slot population order, especially if installing multiple modules.
3. Open Retention Clips: DIMM სლოტის ორივე ბოლოში არსებული დამჭერი სამაგრები ფრთხილად გარეთ გაწიეთ მათ გასახსნელად.
4. მეხსიერების მოდულის ჩასმა: Align the memory module with the DIMM slot, ensuring the notch on the module matches the key in the slot. This prevents incorrect insertion.
5. Seat the Module: Apply even pressure to both ends of the memory module until it clicks into place and the retention clips automatically snap shut. Do not force the module; if it does not seat easily, recheck alignment.
6. დაადასტურეთ ინსტალაცია: Visually inspect the module to ensure it is fully seated and the retention clips are securely closed.
7. დახურვა და ჩართვა: Close the server chassis, reconnect all cables, and power on the system. The system BIOS should automatically detect the new memory.

5. მოქმედებს

Once installed, the HEWLETT-PACKARD 8GB DDR3 1333MHZ PC3-10600 ECC Registered DIMM operates automatically within a compatible server system. No specific user interaction is typically required for its operation. The server's BIOS and operating system will manage the memory resources. Ensure your server's BIOS is updated to the latest version to ensure optimal compatibility and performance with new memory modules.

6. მოვლა

Memory modules generally require minimal maintenance. Follow these guidelines for optimal longevity:

• სისუფთავე: Keep the server environment clean and dust-free. Dust accumulation can impede airflow and lead to overheating.
• დამუშავება: When handling the module, always use ESD precautions and hold it by the edges.
• შენახვა: If storing the module, keep it in an anti-static bag in a cool, dry place away from direct sunlight and extreme temperatures.
• ინსპექტირება: Periodically inspect the module and its slot for any signs of damage or corrosion, especially during other system maintenance.

7. Დიაგნოსტიკა

If you encounter issues after installing the memory module, consider the following troubleshooting steps:

• სისტემა არ ირთვება/ეკრანი არ ჩანს:
  • Ensure the memory module is fully seated in its slot and the retention clips are closed.
  • Verify that the module is installed in the correct slot according to your server's motherboard manual.
  • Try reseating the module.
  • If multiple modules are installed, try booting with only one module at a time to identify a potentially faulty module.
• არასწორი მეხსიერება აღმოჩენილია:
  • Check the server's BIOS/UEFI settings to confirm the detected memory amount.
  • Ensure your server's motherboard and CPU support the total amount of RAM installed.
  • Update the server's BIOS/UEFI to the latest version, as this often improves memory compatibility.
• სისტემის არასტაბილურობა/გაჭედვა:
  • Run a memory diagnostic tool (e.g., MemTest86) to check for errors.
  • Ensure the server's cooling system is functioning correctly to prevent overheating.

If problems persist, consult your server's documentation or contact HEWLETT-PACKARD technical support.

8. სპეციფიკაციები

9. გარანტია და მხარდაჭერა

This HEWLETT-PACKARD memory module is covered by the manufacturer's standard warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official HEWLETT-PACKARD website. For technical assistance, troubleshooting, or warranty claims, please contact HEWLETT-PACKARD customer support through their official channels.

HEWLETT-PACKARD Official Webსაიტი: www.hp.com
