AFF 20 Ton Hydraulic Shop Press Instruction Manual

1. შესავალი და უსაფრთხოების ინფორმაცია

This manual provides essential instructions for the safe operation, assembly, maintenance, and troubleshooting of your AFF 20 Ton Hydraulic Shop Press. Please read this manual thoroughly before operating the press to ensure proper use and to prevent injury or damage.

The AFF 20 Ton Hydraulic Shop Press is designed for straightening, bending, and removing gears, bearings, and bushings in automotive and light industrial applications. It features industrial-grade construction for durability and an 8-level bed adjustment for versatility.

უსაფრთხოების ზოგადი გაფრთხილებები

• ყოველთვის ატარეთ შესაბამისი პირადი დამცავი აღჭურვილობა (PPE), მათ შორის დამცავი სათვალე, ხელთათმანები და მყარი ფეხსაცმელი.
• Ensure the press is placed on a stable, level surface capable of supporting its weight and the load.
• Do not exceed the rated capacity of 20 tons. The press is equipped with overload protection to prevent damage from over-pressurization.
• Keep hands and body clear of the ram and workpiece during operation.
• Inspect the press for any damage or wear before each use. Do not operate if damaged.
• მოარიდეთ ბავშვები და არაუფლებამოსილი პირები სამუშაო ადგილიდან.
• Use only genuine AFF replacement parts for repairs.
• ეს პროდუქტი შეიცავს ქიმიკატებს, რომლებიც კალიფორნიის შტატის მიერ ცნობილია, როგორც კიბოს და თანდაყოლილი დეფექტების ან სხვა რეპროდუქციული ზიანის გამომწვევი (გაფრთხილება წინადადება 65).

2. პროდუქტი დასრულდაview და კომპონენტები

The AFF 20 Ton Hydraulic Shop Press is a robust tool designed for various pressing tasks. Familiarize yourself with its main components:

• ჩარჩო: Heavy-duty steel construction providing stability.
• Hydraulic Bottle Jack: The primary power source for applying force, with an 8-1/2 inch stroke.
• Press Bed: Adjustable platform where the workpiece is placed, offering 8 levels of height adjustment.
• ვერძი: The component that extends from the jack to apply pressure.
• Return Springs: Heavy-duty springs for fast ram retraction.
• Arbor Plates: Professional-grade plates included for supporting workpieces.

სურათი 2.1: დასრულდაview of the AFF 20 Ton Hydraulic Shop Press. This image shows the complete assembly of the red-colored shop press, highlighting its sturdy frame, hydraulic bottle jack, and adjustable press bed.

Figure 2.2: Multi-functional capabilities. This image illustrates the press's versatility for straightening, bending, and removing gears, bearings, and bushings, with a person operating it.

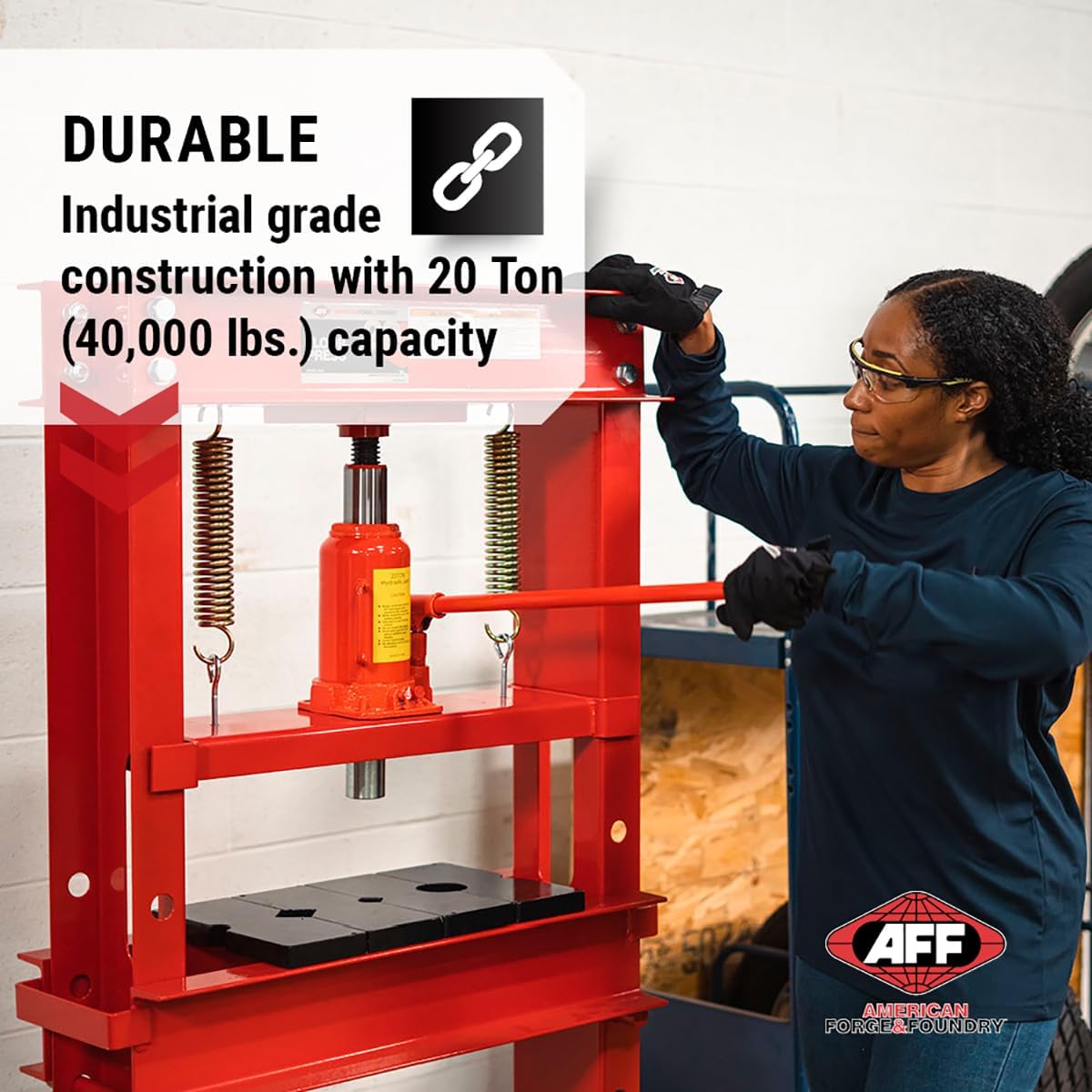

Figure 2.3: Durable industrial-grade construction. A close-up view emphasizing the robust build quality and 20-ton capacity of the press.

3. დაყენება და შეკრება

The AFF 20 Ton Hydraulic Shop Press requires assembly. Follow these steps carefully:

1. შეფუთვა: ფრთხილად ამოიღეთ ყველა კომპონენტი შეფუთვიდან. დარწმუნდით, რომ ყველა ნაწილი მოთავსებულია შეფუთვის სიის შესაბამისად.
2. ჩარჩოს შეკრება: Assemble the main frame components, ensuring all bolts are securely tightened. Refer to the included assembly diagram for specific bolt locations and torque specifications.
3. ჰიდრავლიკური ჯეკის დაყენება: Securely mount the 20-ton hydraulic bottle jack into its designated position within the press frame.
4. Attach Return Springs: Connect the heavy-duty return springs to the ram and the upper frame crossbar. These springs assist in fast ram retraction.
5. Position Press Bed: Adjust the press bed to the desired height using the 8-level adjustment points. Ensure the bed is level and securely supported by the pins.
6. Place Arbor Plates: Position the professional-grade arbor plates on the press bed as needed for your specific application.
7. უსაფრთხო განთავსება: Place the assembled press on a firm, level, and stable surface. For permanent installations, consider bolting the press to the floor for added stability.

Note: It is recommended to have at least two people for assembly due to the weight of the components (Item Weight: 279 pounds).

4. საოპერაციო ინსტრუქციები

Follow these steps for safe and effective operation of your hydraulic shop press:

1. მომზადება:
   • Ensure the press is stable and clear of obstructions.
   • Verify the workpiece is clean and free of debris.
   • Select the appropriate arbor plates for your task and place them on the press bed.
   • Adjust the press bed height to minimize the distance between the ram and the workpiece, allowing for sufficient ram stroke.
2. სამუშაო ნაწილის პოზიცია: Carefully place the workpiece centrally on the arbor plates on the press bed. Ensure it is stable and will not shift during pressing.
3. ზეწოლა:
   • Close the release valve on the hydraulic jack by turning it clockwise until snug.
   • Insert the pump handle into the jack's pump socket.
   • Slowly pump the handle to extend the ram and apply pressure to the workpiece. Observe the workpiece carefully.
   • The press has overload protection to prevent exceeding its 20-ton capacity.
4. გამოთავისუფლების წნევა:
   • Once the task is complete, slowly open the release valve by turning it counter-clockwise.
   • The ram will retract due to the heavy-duty return springs.
   • Remove the workpiece once the ram has fully retracted.

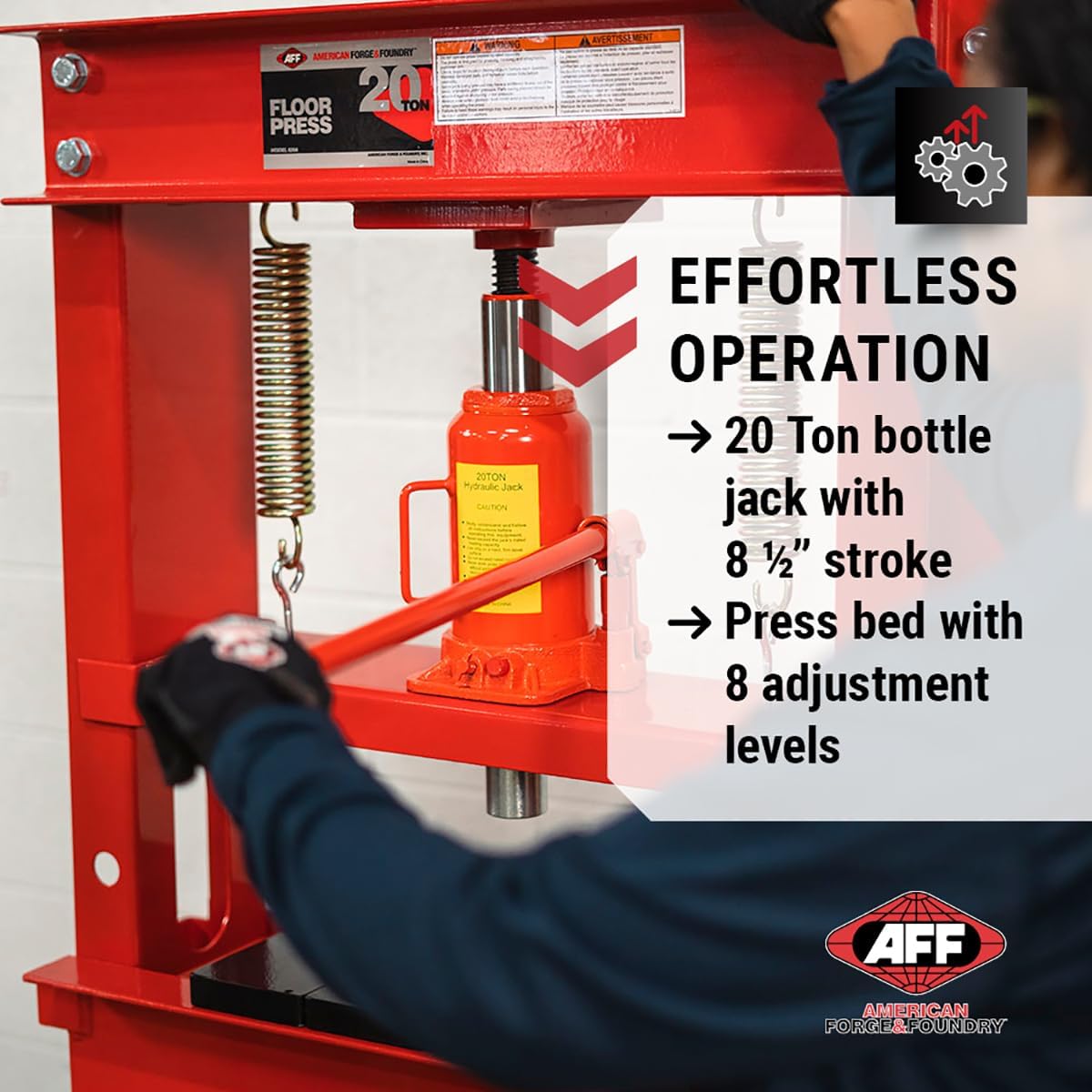

Figure 4.1: Effortless operation. This image highlights the 20-ton bottle jack with its 8-1/2 inch stroke and the press bed's 8 adjustment levels, showing a user operating the pump handle.

Figure 4.2: Efficient ram retraction. A close-up view of the heavy-duty return springs, demonstrating their role in quickly retracting the ram after pressure is released.

5. მოვლა

Regular maintenance ensures the longevity and safe operation of your AFF Hydraulic Shop Press.

• დასუფთავება: Keep the press clean and free of dirt, grease, and debris. Wipe down surfaces with a clean cloth after each use.
• შეზეთვა: Periodically lubricate all moving parts, including the ram and pivot points, with a light machine oil.
• ჰიდრავლიკური სითხე: Check the hydraulic fluid level in the bottle jack regularly. Top up with high-quality hydraulic jack oil if necessary. Refer to the jack's specific instructions for fluid type and filling procedure.
• ინსპექტირება:
  • Inspect all bolts and fasteners for tightness. Tighten as needed.
  • Check the hydraulic hose (if applicable) and connections for leaks or damage.
  • Examine the return springs for any signs of stretching or damage.
  • Inspect the ram for scoring or corrosion.
• შენახვა: When not in use, store the press in a dry, clean area. Lower the ram completely to protect the hydraulic cylinder.

6. Დიაგნოსტიკა

ეს განყოფილება განიხილავს გავრცელებულ პრობლემებს, რომლებიც შეიძლება შეგხვდეთ თქვენს ჰიდრავლიკურ საამქროსთან დაკავშირებით.

For issues not listed here or if solutions do not resolve the problem, contact AFF customer support.

7. სპეციფიკაციები

Figure 7.1: Key dimensions of the shop press. This image provides a visual representation of the press with measurements for bed depth, throat, ram travel, space interval, and overall height and width.

8. გარანტია და მხარდაჭერა

AFF (American Forge & Foundry) is committed to providing high-quality, "forge tough" heavy-duty and automotive service equipment. Established in 1963, AFF stands for durability, safety, and customer care.

For specific warranty details, claims, or technical support, please refer to the warranty card included with your product or visit the official AFF website. You can also contact their customer service directly. AFF maintains an extensive inventory of parts and hundreds of service depots nationwide.

For general inquiries or to find a service center, please contact SUREWERX USA, the manufacturer.
