MoKo Bluetooth Wireless Keyboard for Microsoft Surface Pro Series Instruction Manual

1. დასრულდაview

The MoKo Bluetooth Wireless Keyboard is designed to enhance your Microsoft Surface Pro experience, offering a comfortable typing solution with advanced features. This keyboard provides a seamless wireless connection, a practical trackpad, and customizable 7-color backlighting, making it suitable for various environments and tasks.

Image: MoKo Bluetooth Wireless Keyboard attached to a Microsoft Surface Pro tablet, showcasing its sleek design and integration.

2. პაკეტის შიგთავსი

გთხოვთ, შეამოწმოთ შეფუთვა შემდეგი ნივთებისთვის:

• MoKo Bluetooth Wireless Keyboard
• USB დამტენი კაბელი
• მომხმარებლის სახელმძღვანელო (ეს დოკუმენტი)

Image: A USB Type-C charging cable, included for recharging the keyboard's internal battery.

3. თავსებადობა

This keyboard is designed for specific Microsoft Surface Pro models. Please verify your device model before use.

• Microsoft Surface Pro 7 Plus (2021)
• Microsoft Surface Pro 7 (2019)
• Microsoft Surface Pro 6
• Microsoft Surface Pro 5 (Pro 2017)
• Microsoft Surface Pro 4
• Microsoft Surface Pro 3

Note: This keyboard is NOT compatible with Surface Go (2018) or Surface Go 2.

Image: A visual guide indicating compatible Microsoft Surface Pro models (Pro 7 Plus, Pro 7, Pro 6, Pro 5, Pro 4, Pro 3, Pro LTE) and incompatible models (Surface Go, Surface Go 2).

4. დაყენება

4.1. კლავიატურის დატენვა

Before initial use, fully charge the keyboard. Connect the provided USB charging cable to the keyboard's charging port and a USB power source. The charging indicator light will show the charging status.

• Battery Capacity: 750mAh (rechargeable lithium battery)
• დატენვის დრო: დაახლოებით 2-3 საათი
• Working Time (backlight off): Up to 180 hours
• Working Time (backlight on): Up to 5 hours
• ლოდინის დრო: 180 დღემდე

Image: An illustration depicting the keyboard's battery and charging specifications, including charge time and standby duration.

4.2. Bluetooth დაწყვილება

Follow these steps to pair your keyboard with your Microsoft Surface Pro:

1. Turn on the keyboard by sliding the power switch to the 'ON' position. The indicator light will flash.
2. დააჭირეთ Fn + C keys simultaneously to activate Bluetooth pairing mode. The Bluetooth indicator light will start blinking rapidly.
3. On your Microsoft Surface Pro, go to პარამეტრები > მოწყობილობები > Bluetooth და სხვა მოწყობილობები.
4. Ensure Bluetooth is enabled and select დაამატეთ Bluetooth ან სხვა მოწყობილობა.
5. აირჩიეთ Bluetooth ვარიანტებიდან.
6. Select the keyboard (usually named "Bluetooth Keyboard" or similar) from the list of available devices.
7. Follow any on-screen prompts to complete the pairing process. Once paired, the Bluetooth indicator light on the keyboard will stop blinking.

Image: A diagram illustrating the Bluetooth wireless connection process, showing the keyboard both attached and detached from the tablet, with a note on connection distance.

5. საოპერაციო ინსტრუქციები

5.1. განათების კონტროლი

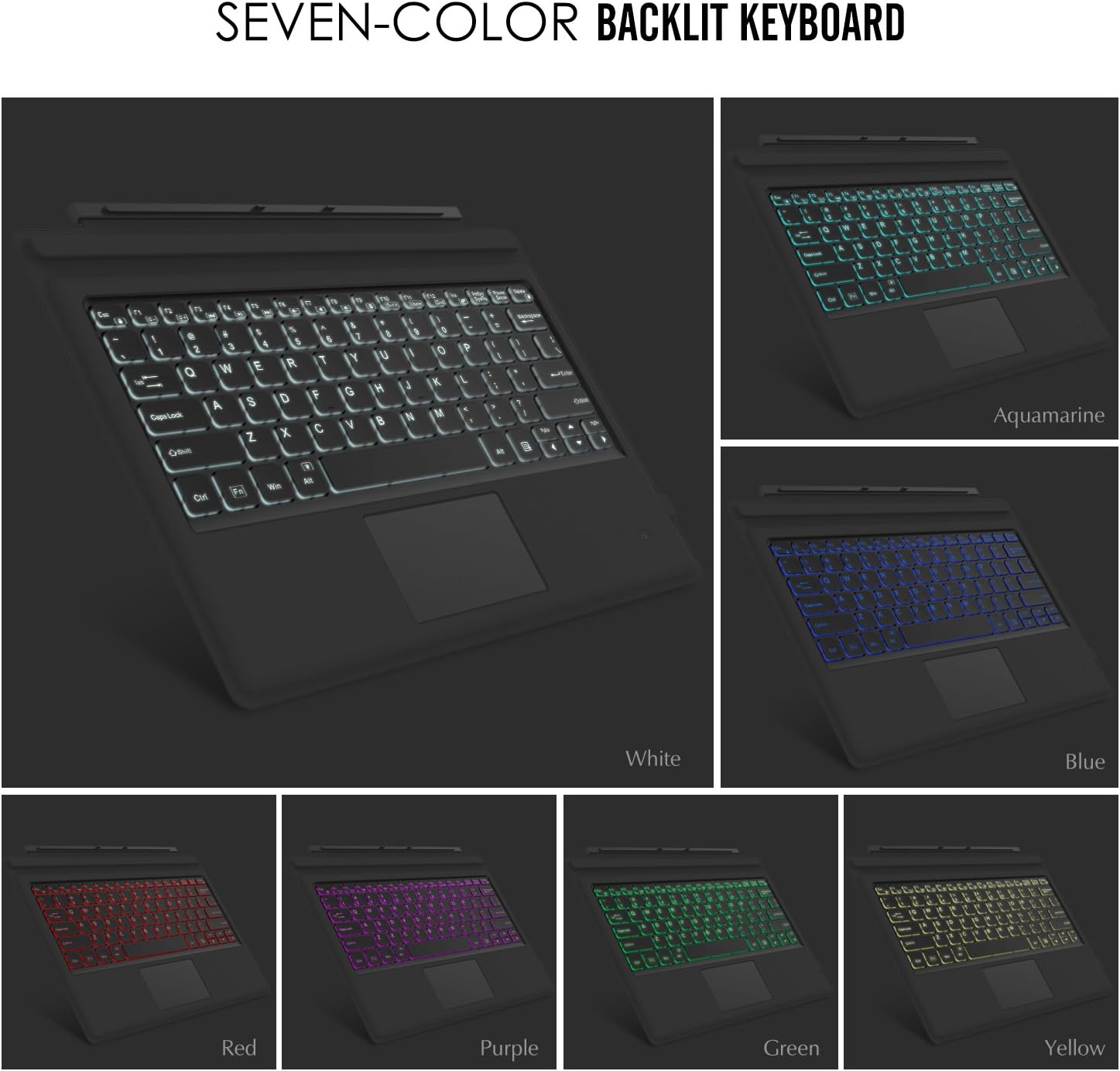

The keyboard features a 7-color LED backlight with adjustable brightness levels.

• To turn the backlight ON/OFF: Press the ნათურა გასაღები.
• განათების ფერის შესაცვლელად: დააჭირეთ ღილაკს: Alt + Light Bulb key. Cycle through 7 different colors.
• To adjust backlight brightness: Press fn+alt keys. This will cycle through different brightness modes.

Image: Instructions on how to change the backlight color by pressing Alt + Light Bulb key.

Image: Instructions on how to adjust backlight brightness by pressing Fn + Alt keys.

5.2. Using the Trackpad

The integrated trackpad provides precise cursor control, similar to a mouse. It supports multi-touch gestures for enhanced navigation.

• To activate/deactivate the trackpad: Press Fn + Trackpad icon გასაღები.
• Left Click: Press the left side of the trackpad or tap once.
• Right Click: Press the right side of the trackpad or tap with two fingers.
• Scrolling: Use two fingers to scroll up or down.

Image: An illustration highlighting the responsive trackpad with left and right click areas, and the scissor switch mechanism of the keys for comfortable typing.

5.3. Dual-Angle Adjustment

The keyboard features a magnetic attachment stripe that allows for two different typing angles, providing ergonomic comfort for various uses.

Image: A visual representation of the keyboard's dual-angle adjustment, showing two distinct positions for typing comfort.

6. მოვლა

• Keep the keyboard away from liquids and extreme temperatures.
• Clean the keyboard with a soft, damp ქსოვილი. მოერიდეთ უხეში ქიმიკატებს.
• Do not attempt to disassemble the keyboard, as this may void the warranty.
• ხანგრძლივი პერიოდის განმავლობაში არ გამოყენების შემთხვევაში შეინახეთ მშრალ ადგილას.

7. Დიაგნოსტიკა

7.1. Keyboard Not Connecting via Bluetooth

• დარწმუნდით, რომ კლავიატურა სრულად დატენილია.
• დარწმუნდით, რომ კლავიატურის ჩართვის ჩამრთველი ჩართულია.
• Verify that Bluetooth is enabled on your Surface Pro.
• Re-enter pairing mode on the keyboard (Fn + C) and attempt to pair again from your Surface Pro's Bluetooth settings.
• If previously paired, try 'forgetting' the device on your Surface Pro and then re-pairing.

7.2. განათება არ მუშაობს

• დარწმუნდით, რომ კლავიატურა საკმარისად დატენილია.
• Press the Light Bulb key to toggle the backlight.
• Adjust brightness using Fn + Alt keys.

7.3. Trackpad Not Responding

• Ensure the trackpad is activated by pressing Fn + Trackpad icon key.
• Clean the trackpad surface to remove any dirt or debris.
• Restart the keyboard and your Surface Pro.

8. სპეციფიკაციები

Image: A diagram illustrating the precise dimensions of the MoKo Bluetooth Wireless Keyboard.

9. გარანტია და მხარდაჭერა

For warranty information and technical support, please refer to the product packaging or contact MoKo customer service directly. Keep your purchase receipt for warranty claims.
