Poly TC8 Touch Controller User Manual

1. შესავალი

The Poly TC8 is an intuitive touch interface designed to provide easy access to Poly video conferencing solutions. This device features an 8-inch high-resolution touch display, ensuring that all control options are clear and readily accessible. It is compatible with the Poly Studio X family and Poly G7500 systems.

A single Ethernet cable provides both power and data connectivity, simplifying installation and reducing cable clutter in your meeting space. The TC8 enhances collaboration by offering a streamlined experience for initiating, joining, and sharing content during meetings.

2. მახასიათებლები

• დახვეწილი დიზაინი: Equipped with an 8-inch high-resolution touch display for clear and accessible control options.
• Power Over Ethernet (PoE): Utilizes a single cable for both power and data transmission, minimizing cable management.
• One-Touch Meeting Join: Features an integrated calendar for quick identification and connection to scheduled meetings.
• გაძლიერებული თანამშრომლობა: An intuitive interface allows for personalized experiences, contributing to more productive meetings.
• თავსებადობა: Fully compatible with Poly Studio X family and Poly G7500 video conferencing systems.

3. დაყენება

Follow these steps to set up your Poly TC8 Touch Controller:

1. გახსენით მოწყობილობა: Carefully remove the TC8 from its packaging.
2. კონტროლერის განთავსება: Place the TC8 on a stable, flat surface in your meeting room, ensuring it is within easy reach of participants.
3. Ethernet კაბელის შეერთება: Locate the Ethernet port on the back of the TC8. Connect a standard Ethernet cable from a PoE-enabled network switch or injector to this port. This single connection provides both power and network connectivity to the device.

სურათი 3.1: უკანა view of the Poly TC8, highlighting the Ethernet port for power and data.

4. ჩართვა: Once the Ethernet cable is connected, the TC8 will automatically power on. Allow a few moments for the device to boot up.
5. საწყისი კონფიგურაცია: Follow the on-screen prompts to complete the initial setup, including network settings and pairing with your Poly video conferencing system (Studio X or G7500). Refer to your Poly video system's manual for specific pairing instructions.

4. საოპერაციო ინსტრუქციები

The Poly TC8 provides an intuitive touch interface for managing your video conferences.

4.1. ინტერფეისის ნავიგაცია

The 8-inch high-resolution display presents clear options for meeting control. The main screen typically displays your meeting calendar, allowing for quick access to scheduled events.

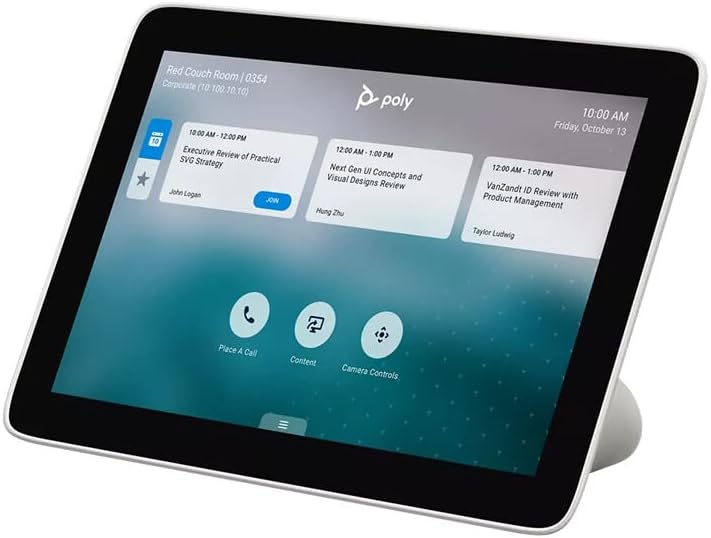

Figure 4.1: Poly TC8 display showing meeting schedule and control options.

4.2. Joining a Meeting

If your calendar is integrated, scheduled meetings will appear on the display. To join a meeting:

1. Tap on the desired meeting entry from the calendar list.
2. დააჭირეთ შეუერთდი button that appears on the screen.

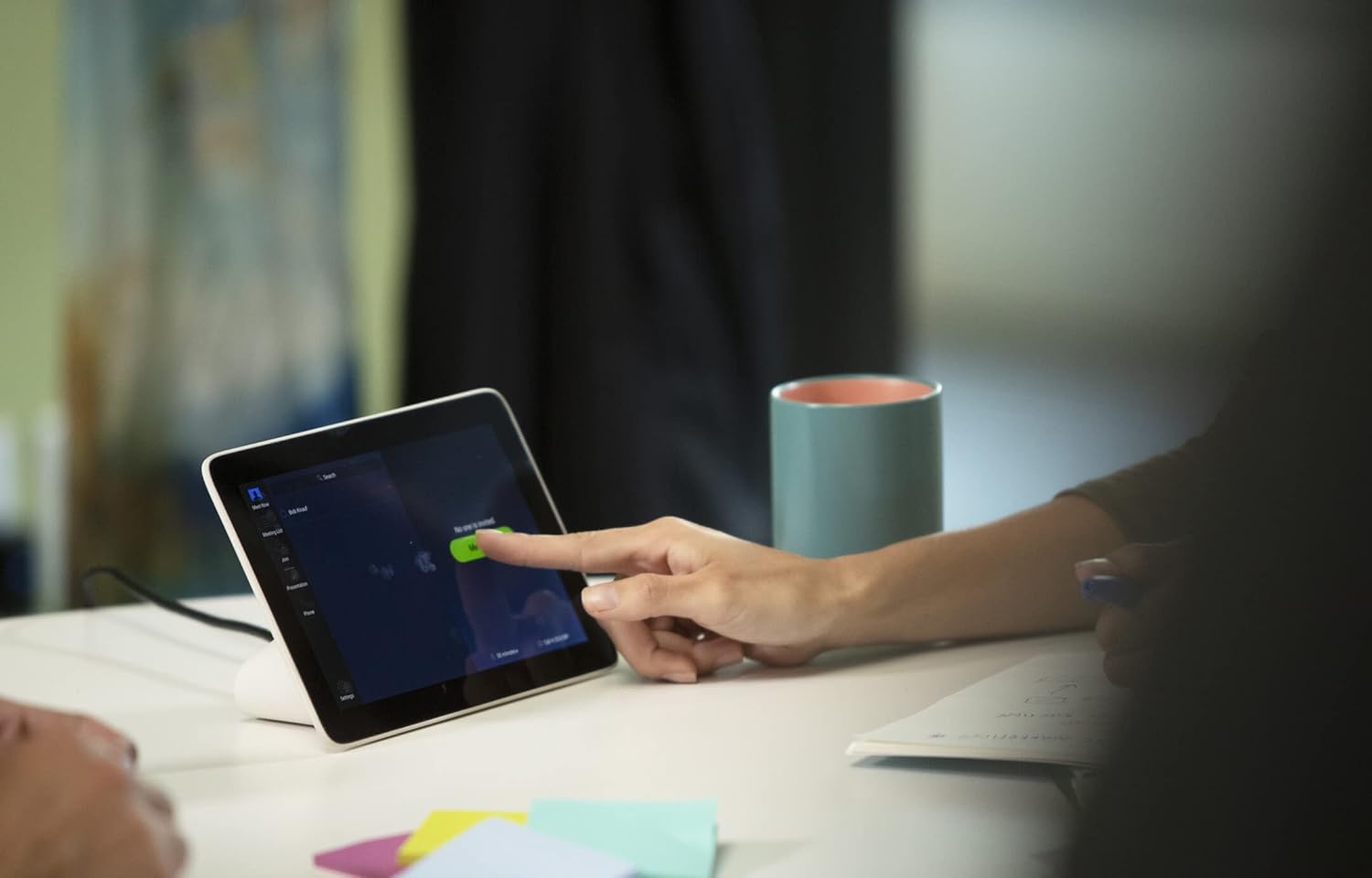

Figure 4.2: User interacting with the TC8 to join a meeting.

4.3. ზარის განხორციელება

To initiate a new call:

1. შეეხეთ Place A Call icon on the main screen.
2. Enter the contact or meeting ID using the on-screen keypad.
3. Press the call button to connect.

4.4. Sharing Content

To share content during a meeting:

1. შეეხეთ შინაარსი icon on the main screen or during an active call.
2. Follow the on-screen instructions to select your content source (e.g., connected laptop, wireless sharing).

4.5. კამერის კონტროლი

To adjust camera settings:

1. შეეხეთ კამერის კონტროლი ხატულა.
2. Use the on-screen controls to pan, tilt, zoom, or select camera presets for your Poly video system.

5. მოვლა

To ensure optimal performance and longevity of your Poly TC8 Touch Controller, follow these maintenance guidelines:

• ეკრანის გაწმენდა: გამოიყენეთ რბილი, ბუსუსების გარეშე ქსოვილი, ოდნავ დასველებულიampened with water or a screen-safe cleaning solution, to gently wipe the touch display. Avoid abrasive materials or harsh chemicals.
• C-ს გაწმენდაasing: გაწმინდეთ მოწყობილობა გasing with a soft, dry cloth. Do not use liquid cleaners directly on the device.
• გარემო პირობები: Operate the device within recommended temperature and humidity ranges. Avoid exposing it to direct sunlight, excessive heat, or moisture.
• პროგრამული განახლებები: Periodically check for and install software updates provided by Poly to ensure the device has the latest features and security enhancements.

6. Დიაგნოსტიკა

If you encounter issues with your Poly TC8, consider the following troubleshooting steps:

• მოწყობილობა არ ჩართულია: Ensure the Ethernet cable is securely connected to both the TC8 and a PoE-enabled network port. Verify that the PoE source is active.
• ქსელთან დაკავშირება არ არის: Check the Ethernet cable for damage. Confirm that the network port is active and configured correctly. Restart your network switch if necessary.
• სენსორული ეკრანი არ რეაგირებს: Try restarting the device by disconnecting and reconnecting the Ethernet cable. If the issue persists, ensure the screen is clean and free of debris.
• Cannot Connect to Video System: Verify that the TC8 is properly paired with your Poly Studio X or G7500 system. Check network settings on both devices to ensure they are on the same network and can communicate.
• პროგრამული ხარვეზები: If the interface behaves unexpectedly, a device restart often resolves temporary software issues. Ensure the device firmware is up to date.

For persistent issues, consult the Poly support website or contact your IT administrator.

7. სპეციფიკაციები

8. გარანტია და მხარდაჭერა

For detailed warranty information and technical support, please visit the official Poly website or contact your authorized Poly reseller. Product registration may be required to activate your warranty.

Online resources, including FAQs, documentation, and software downloads, are available on the Poly support portal to assist with any queries or issues you may encounter.
