ATOTO AC-FCR01W HD 1080P Front Camera Instruction Manual

1. შესავალი

The ATOTO AC-FCR01W is an HD 1080P front camera designed to enhance driving safety by providing a clear view of the blind spot in front of your vehicle. It features a 150° wide viewing angle, strong light suppression, and a built-in G-sensor for automatic event recording. This camera is specifically designed for use with selected ATOTO P8 series head units.

თავსებადობის მნიშვნელოვანი შენიშვნა: The AC-FCR01W is only compatible with ATOTO P8 series head units that have the specified front and rear camera input interfaces. It is not compatible with other ATOTO products such as S8 series, F7 series, A6PF series, or SA102 series.

Image 1.1: Compatibility diagram for ATOTO AC-FCR01W. Shows the correct rear panel connection for compatible P8 series units and examples of incompatible ATOTO series (S8, F7, A6PF, SA102).

2. დაყენება და ინსტალაცია

The AC-FCR01W front camera is designed for straightforward installation. It can be attached to the vehicle's windshield. A 3.5-meter extension cable is included to accommodate most vehicle types.

ინსტალაციის ნაბიჯები:

1. Securely attach the camera to the windshield in a position that provides an optimal view წინ გზის.
2. Connect the camera to your compatible ATOTO P8 series head unit using the provided USB-C cam plug and extension cable. Ensure the connection is firm.
3. Route the cable neatly to avoid interference with driving controls or visibility.

Accessing the Camera Feed:

Once installed, the camera feed can be accessed through your P8 head unit in two ways:

• Press the dedicated button on an ATOTO AC-44F6 remote control (if available).
• Tap the camera icon directly on the P8 head unit's touchscreen display.

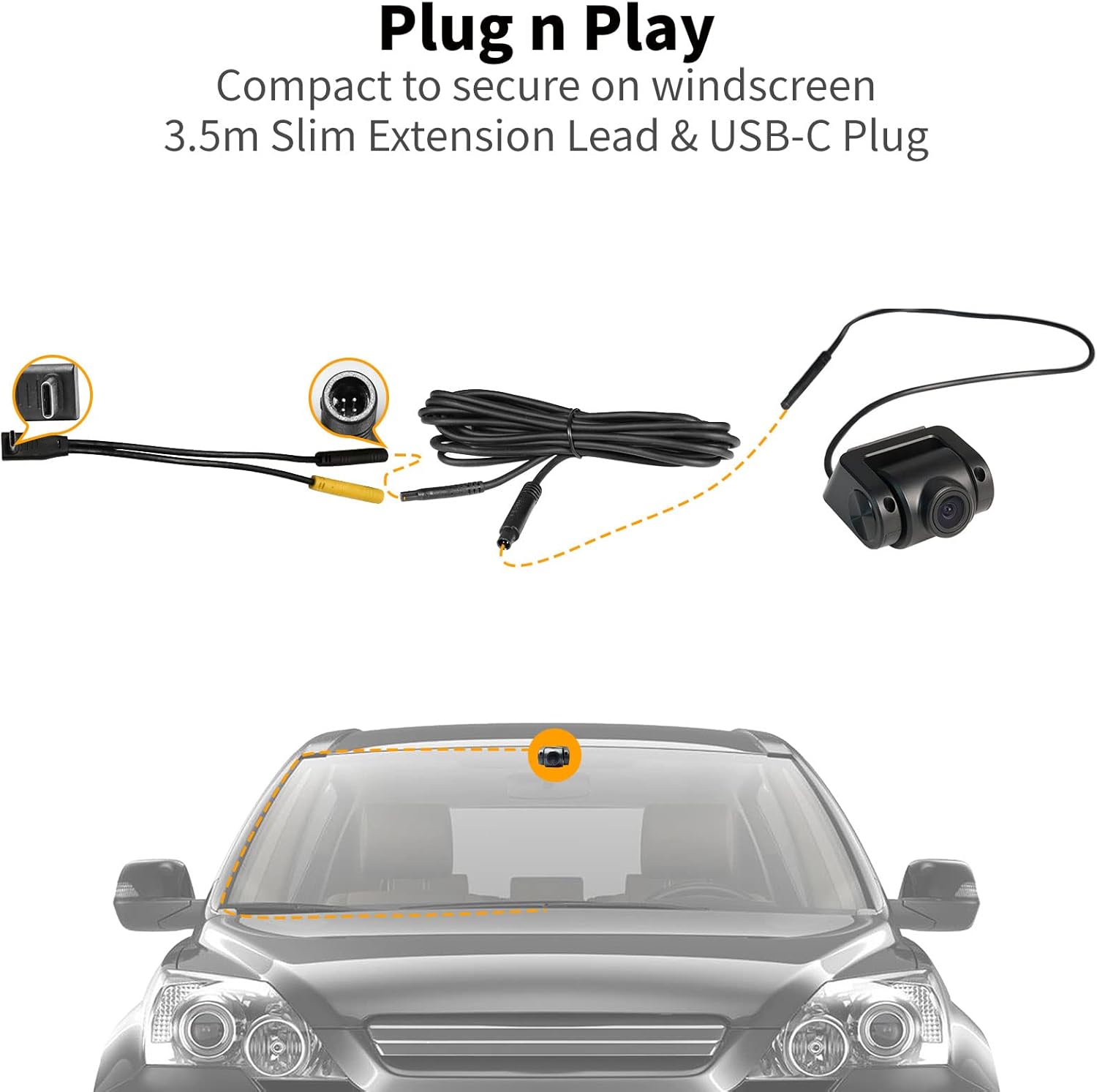

Image 2.1: 'Plug n Play' installation diagram. Illustrates the camera components and typical windshield mounting position.

3. საოპერაციო ინსტრუქციები

HD 1080P Display and Wide Viewing კუთხე

The AC-FCR01W records in HD 1080P resolution with a 150° wide viewing angle. This allows for a comprehensive view of the road, capturing details such as license plates and sidewalks. The camera automatically begins recording when the car starts (an SD card is required for recording) and saves footage as backup information.

Image 3.1: Visual representation of HD 1080P resolution and 150° wide viewing angle, demonstrating improved clarity for details like license plates.

Image 3.2: 'Auto Loop Recording' illustration. Depicts the camera automatically powering on and recording when the car starts.

Parking Monitor (24/7 Car Surveillance)

When powered continuously by an accessory like the AC-P8AC12 (sold separately), the parking monitor feature provides 24/7 surveillance. If a sudden collision or bump is detected, the P8 head unit activates within seconds, and the AC-FCR01W camera captures 20 seconds of critical video footage. This footage is protected from being overwritten, serving as a reliable eyewitness. In standby mode, the camera's power consumption is less than 10mA, minimizing battery drain.

ჩამონტაჟებული G-სენსორი

The integrated G-sensor automatically detects unusual changes in gravity, such as those caused by collisions. When such an event occurs, the relevant video footage is automatically saved as backup information, preventing it from being deleted by loop recording.

Image 3.3: G-Sensor and Parking Monitor features. Illustrates how the G-sensor captures crash evidence and the parking monitor provides 24-hour protection.

Strong Light Suppression (WDR)

The camera features strong light suppression technology, including Wide Dynamic Range (WDR), to manage challenging lighting conditions. This helps to prevent dazzling effects from high beams or bright sunlight, ensuring clear video capture both day and night. The loop recording time is also adjustable.

Image 3.4: Strong Light Suppression with WDR. Demonstrates anti-glare capabilities for clear viewსხვადასხვა განათების პირობებში.

4. მოვლა

To ensure optimal performance and longevity of your ATOTO AC-FCR01W front camera, consider the following general maintenance guidelines:

• ლინზების წმენდა: Periodically clean the camera lens with a soft, lint-free cloth to remove dust, smudges, or debris that may affect video clarity. Avoid abrasive materials or harsh chemicals.
• საკაბელო შემოწმება: Regularly check the connection cable for any signs of wear, damage, or loose connections. Ensure it is securely routed and not pinched.
• Firmware განახლებები: Check the official ATOTO website or your P8 head unit's system settings for any available firmware updates for the camera or head unit, as these can improve performance and add features.
• შენახვის მედია: If using an SD card for recording, ensure it is a high-quality card (max 128GB recommended) and consider formatting it periodically to maintain optimal recording performance.

5. Დიაგნოსტიკა

If you encounter issues with your ATOTO AC-FCR01W front camera, please review შემდეგი საერთო პრობლემების გადაჭრის ნაბიჯები:

• სურათის არარსებობა/შავი ეკრანი:
  • Ensure the camera is correctly connected to the USB-C input on your ATOTO P8 head unit.
  • Verify that your P8 head unit is compatible with the AC-FCR01W (refer to Section 1: Introduction).
  • Check the cable for any damage or kinks.
• სურათის ცუდი ხარისხი:
  • კარგად გაწმინდეთ კამერის ლინზა.
  • დარწმუნდით, რომ კამერა საიმედოდ არის დამონტაჟებული და არ ვიბრირდება.
  • Check for any obstructions in the camera's field of view.
• ჩაწერის პრობლემები:
  • Ensure an SD card is inserted and properly formatted.
  • Verify the SD card is not full. Consider using a new or larger capacity card (up to 128GB).
  • Check the recording settings on your P8 head unit.
• G-Sensor Not Triggering:
  • Ensure the G-sensor sensitivity settings on your P8 head unit are appropriately configured.

თუ ეს ნაბიჯები პრობლემას არ გადაჭრის, დამატებითი დახმარებისთვის იხილეთ მხარდაჭერის განყოფილება.

6. სპეციფიკაციები

7. გარანტია და მხარდაჭერა

საგარანტიო ინფორმაცია:

The ATOTO AC-FCR01W comes with a standard 12-month product care period, which can be extended by an additional 6 months, totaling 18 months of product care.

მომხმარებელთა მხარდაჭერა:

For any questions, technical assistance, or support inquiries, please utilize the following resources:

• Order Center: Access your order details and initiate support requests through your purchase platform's order center.
• ელ.ფოსტის მხარდაჭერა: Contact ATOTO support via eproductcase or support[at]atotoglobal.
• ATOTO Store: Visit the official ATOTO store for product information and additional resources: ATOTO Store on Amazon.
