1. პროდუქტი დასრულდაview
The OMPHOBBY M4 RC Helicopter Leveling Tool (OSHM4107) is a precision accessory designed to assist in accurately leveling the swashplate of your OMPHOBBY M4 RC helicopter. Proper swashplate leveling is crucial for stable flight characteristics, precise control, and optimal performance of your helicopter. This tool ensures a precise fit and reliable operation, contributing to an enhanced flying experience.

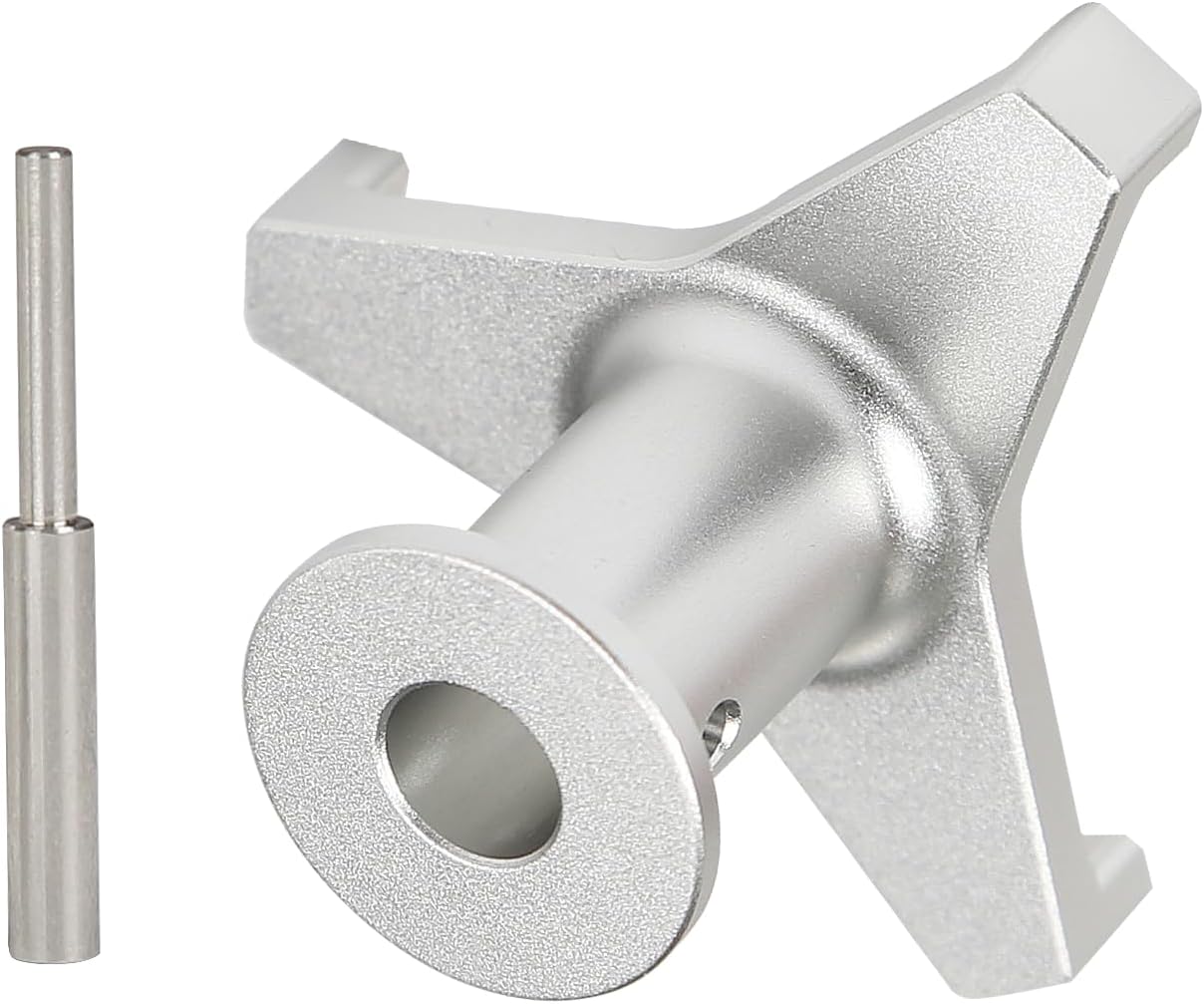

Image 1.1: The OMPHOBBY M4 RC Helicopter Leveling Tool, showing its three-pronged design and central pin.
2. უსაფრთხოების ინფორმაცია
Always prioritize safety when working with RC models and tools. Adhere to the following guidelines:
- Ensure the helicopter is powered off and the main rotor blades are removed or secured before performing any maintenance or adjustments.
- Handle the leveling tool with care to avoid accidental damage to the helicopter's components.
- Keep small parts, such as the leveling pin, out of reach of children.
- If you are unsure about any procedure, consult the main OMPHOBBY M4 helicopter manual or seek assistance from experienced RC enthusiasts.
3. პაკეტის შიგთავსი
დარწმუნდით, რომ თქვენს პაკეტში ყველა კომპონენტია:
- 1 x OMPHOBBY M4 Leveling Tool Body
- 1 x Leveling Pin
Image 3.1: The OMPHOBBY M4 Leveling Tool as packaged, showing the tool body and separate leveling pin.
4. დაყენება და გამოყენება
This leveling tool is designed for precise swashplate adjustment on the OMPHOBBY M4 RC Helicopter. Follow these steps for accurate leveling:
- Prepare the Helicopter: Ensure your OMPHOBBY M4 helicopter is powered off and the main rotor blades are removed for safety.
- ჩადეთ პინი: Insert the small metal leveling pin into the central hole of the main leveling tool body. It should fit snugly.
- დააყენეთ ინსტრუმენტი: Carefully place the leveling tool onto the main shaft of the helicopter, ensuring the three prongs rest evenly on the swashplate. The central pin should align with the center of the main shaft.
- შეამოწმეთ დონე: Observe the position of the swashplate relative to the leveling tool. The goal is for the swashplate to be perfectly parallel with the tool's prongs, indicating a level position.
- Adjust Swashplate: If the swashplate is not level, adjust the lengths of the servo linkages connected to the swashplate. Make small, incremental adjustments to each linkage until the swashplate sits perfectly flat against the leveling tool's prongs.
- გადაამოწმეთ: Rotate the main shaft slowly to check if the swashplate remains level throughout its rotation. This confirms that there are no binding issues or uneven linkage lengths.
- ხელსაწყოს წაშლა: Once satisfied with the swashplate level, carefully remove the leveling tool from the main shaft.
სურათი 4.1: გვერდი view of the leveling tool, illustrating its profile for swashplate contact.
სურათი 4.2: დახრილი view of the leveling tool, showing the precision-machined surfaces.
5. მოვლა
To ensure the longevity and accuracy of your OMPHOBBY M4 Leveling Tool, follow these simple maintenance tips:
- დასუფთავება: Wipe the tool with a soft, dry cloth after each use to remove any dust or debris. Avoid using harsh chemicals or abrasive materials that could damage the finish.
- შენახვა: Store the tool in a clean, dry place, preferably in its original packaging or a protective case, to prevent scratches or deformation.
- ინსპექტირება: Periodically inspect the tool for any signs of wear, bending, or damage. A damaged tool may lead to inaccurate measurements.
6. Დიაგნოსტიკა
If you encounter issues while using the leveling tool, consider the following:
| პრობლემა | შესაძლო მიზეზი | გამოსავალი |
|---|---|---|
| Tool does not sit flat on swashplate. | Swashplate is not level; debris on swashplate or tool. | Clean swashplate and tool. Adjust servo linkages until swashplate is level. |
| Leveling pin is loose or falls out. | Pin not fully inserted; wear on pin or tool hole. | Ensure pin is fully inserted. If wear is significant, consider replacement. |
| Inconsistent leveling results. | Tool is damaged; helicopter components are worn or bent. | Inspect tool for damage. Check helicopter's main shaft, swashplate, and linkages for wear or damage. |
7. სპეციფიკაციები
- მოდელი: OSHM4107
- თავსებადობა: OMPHOBBY M4 RC Helicopters
- მასალა: High-quality aluminum alloy (implied by product images and durability claims)
- მიზანი: Swashplate- ის გათანაბრება
8. გარანტია და მხარდაჭერა
This OMPHOBBY product is distributed by Buddy RC. For any questions regarding product defects, warranty claims, or technical support, please contact Buddy RC customer service. Refer to your purchase documentation for specific warranty terms and contact information.
Buddy RC Contact Information:
- ეწვიეთ Buddy RC Store on Amazon დამატებითი ინფორმაციისთვის და დამხმარე რესურსებისთვის.
Image 8.1: Buddy RC Logo, the distributor of OMPHOBBY products.
