CUB CADET 618P09256 Deck Spindle Assembly User Manual

1. შესავალი

This manual provides essential information for the proper installation, maintenance, and troubleshooting of your CUB CADET 618P09256 Deck Spindle Assembly. This component is designed for specific CUB CADET Ultima ZT1-50 and ZT2-50 50-inch zero-turn mowers. Please read this manual thoroughly before attempting any installation or maintenance procedures to ensure safe and correct usage.

2. უსაფრთხოების ინფორმაცია

2.1 უსაფრთხოების ზოგადი ზომები

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling mower components.
• Ensure the mower engine is off, the spark plug wire is disconnected, and the deck is disengaged before performing any work on the deck or spindle assembly.
• Use only genuine CUB CADET replacement parts or approved equivalents to maintain product integrity and safety.
• მოარიდეთ ბავშვები და მნახველები სამუშაო ადგილიდან.

2.2 Specific Warnings

• The spindle assembly contains moving parts. Exercise caution to prevent pinching or crushing injuries.
• Improper installation can lead to component failure, potential injury, and damage to the mower.
• Refer to your mower's original equipment owner's manual for specific safety instructions related to deck removal and installation.

3. დაყენება და ინსტალაცია

3.1 საჭირო ინსტრუმენტები

• სოკეტის ქანჩის ნაკრები
• ბრუნვის გასაღები
• Pry bar or similar tool (for deck removal/alignment)
• Grease gun (if applicable for maintenance)

3.2 ინსტალაციის ეტაპები

1. მოამზადეთ სათიბი მანქანა: Park the mower on a flat, level surface. Turn off the engine, remove the ignition key, and disconnect the spark plug wire. Engage the parking brake.
2. Remove Mower Deck: Follow the instructions in your mower's owner's manual to safely remove the mower deck from the tractor. Place the deck on a stable surface.
3. Remove Old Spindle Assembly:

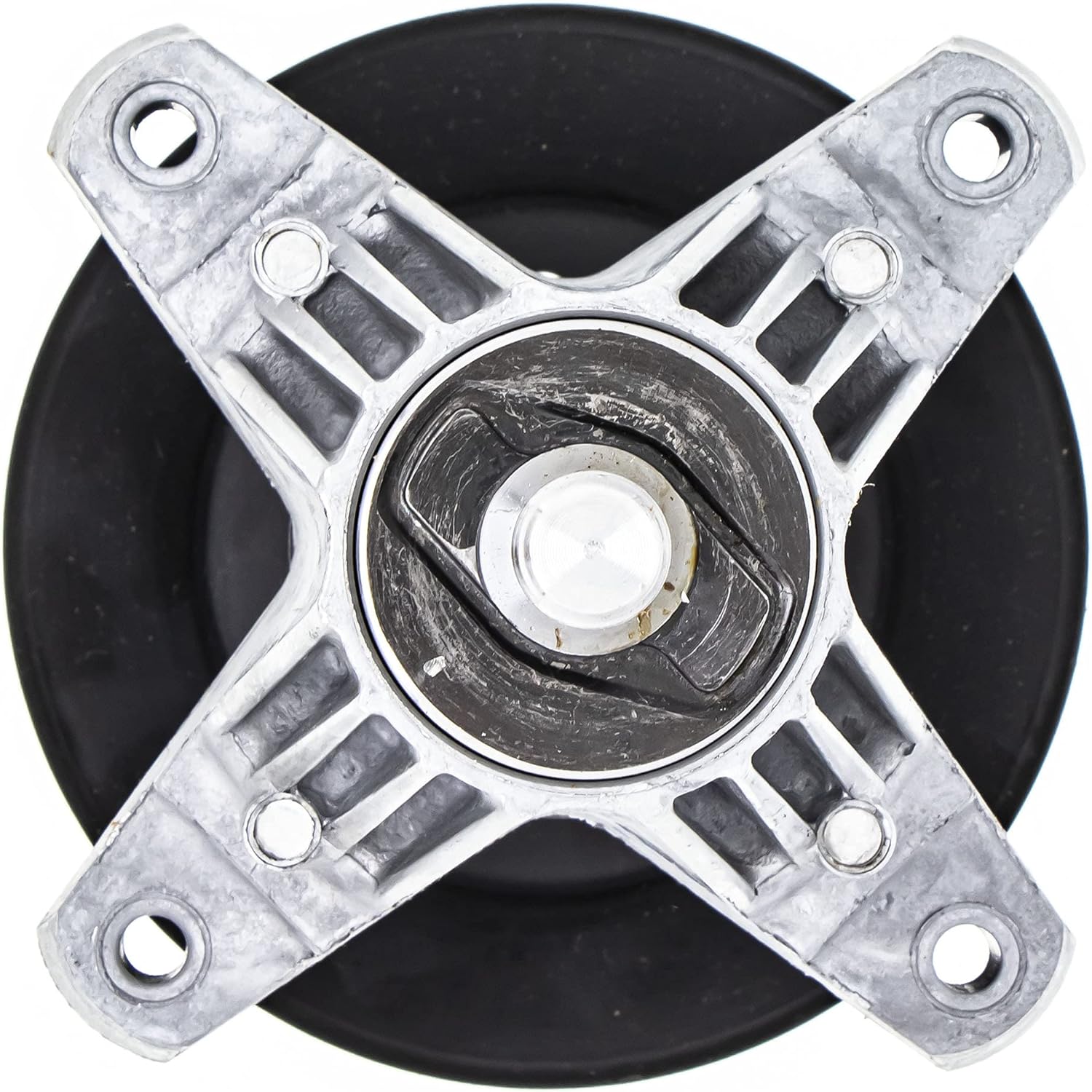

   სურათი: ზედა view of the spindle assembly, showing the four bolt holes for mounting to the mower deck.

   Locate the bolts securing the old spindle assembly to the mower deck. Typically, there are four bolts. Use a socket wrench to loosen and remove these bolts. Carefully lift the old spindle assembly off the deck.
4. სუფთა სამონტაჟო ადგილი: Clean any debris, rust, or old gasket material from the spindle mounting area on the mower deck. A clean surface ensures proper seating of the new spindle.
5. Install New Spindle Assembly:


   სურათი: გვერდი view of the new CUB CADET 618P09256 Deck Spindle Assembly, showing the main housing and shaft.

   Position the new CUB CADET 618P09256 Deck Spindle Assembly onto the cleaned mounting area. Align the bolt holes on the spindle with those on the deck. Insert the mounting bolts and hand-tighten them.
6. სამონტაჟო ჭანჭიკების გამკაცრება: Using a torque wrench, tighten the mounting bolts to the specifications provided in your mower's owner's manual. Ensure even tightening to prevent warping or damage to the deck or spindle.
7. Install Pulley (if separate):


   სურათი: ქვედა view of the spindle assembly, showing the attached pulley and the central mounting bolt.

   If your pulley is separate, install it onto the spindle shaft, ensuring it is seated correctly. Secure it with the retaining nut and washer, tightening to the manufacturer's specified torque.
8. Reinstall Mower Deck: Reattach the mower deck to the tractor, following the reverse steps of removal as outlined in your mower's owner's manual.
9. სანთლის ხელახლა შეერთება: შეაერთეთ სანთლის მავთული.
10. სატესტო ოპერაცია: Before mowing, perform a brief test run to ensure the deck and spindle operate smoothly and quietly. Listen for any unusual noises or vibrations.

4. ოპერაცია

The CUB CADET 618P09256 Deck Spindle Assembly is a component of your mower's cutting deck. Its proper function is integral to the mower's operation. This component does not have independent operational controls. Refer to your CUB CADET mower's owner's manual for instructions on operating the mower and its cutting deck.

5. მოვლა

5.1 რეგულარული შემოწმება

• Periodically inspect the spindle assembly for signs of wear, damage, or looseness.
• Check for excessive play in the spindle shaft, which may indicate worn bearings.
• დარწმუნდით, რომ ყველა სამონტაჟო ჭანჭიკი საიმედოდ არის დამაგრებული.
• Inspect the pulley for cracks, chips, or excessive wear.

5.2 შეზეთვა

Some spindle assemblies are equipped with grease zerks for lubrication. If your 618P09256 assembly has a zerk, apply a small amount of general-purpose grease periodically, as recommended in your mower's manual, to ensure smooth operation and extend bearing life.

5.3 ჩანაცვლება

If the spindle assembly shows significant wear, damage, or excessive play, it should be replaced promptly to maintain cutting performance and safety. Follow the installation steps outlined in Section 3.2 for replacement.

6. Დიაგნოსტიკა

7. სპეციფიკაციები

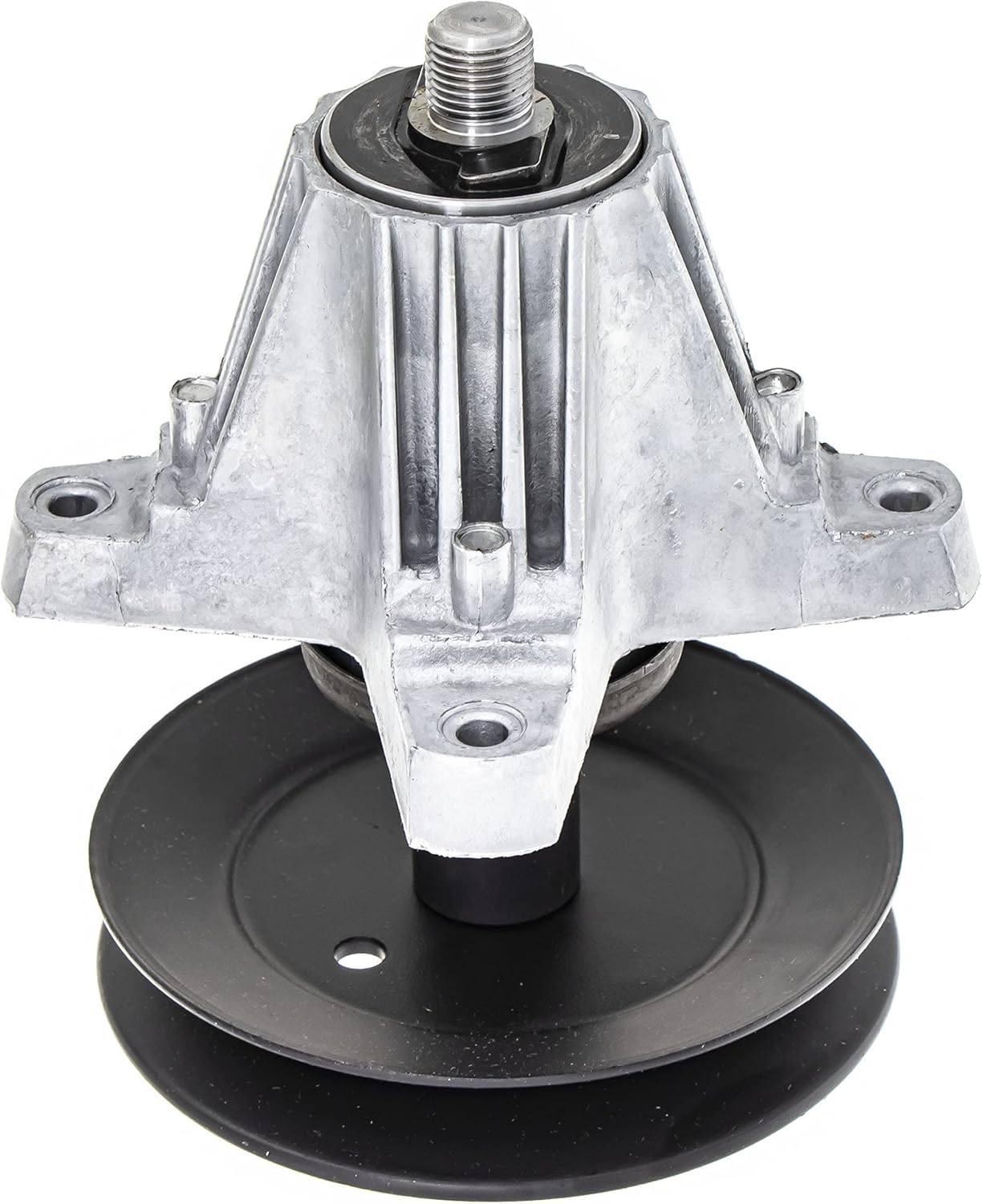

სურათი: მეორე მხარე view of the CUB CADET 618P09256 Deck Spindle Assembly, highlighting its structural design.

8. გარანტია და მხარდაჭერა

For warranty information regarding your CUB CADET 618P09256 Deck Spindle Assembly, please refer to the documentation provided with your original mower purchase or visit the official CUB CADET webსაიტი. გარანტიის პირობები შეიძლება განსხვავდებოდეს.

If you require technical assistance or have questions not covered in this manual, please contact CUB CADET customer support or an authorized service center. Always provide your product model number (618P09256) and mower model information when seeking support.
