Cisco Catalyst 1200-48T-4X Smart Switch User Manual

პროდუქტი დასრულდაview

The Cisco Catalyst 1200-48T-4X Smart Switch is designed to provide robust network performance, security, and reliability for small to medium-sized businesses. This switch features 48 Gigabit Ethernet ports and 4x10GE SFP+ uplinks, offering flexible connectivity options.

ძირითადი მახასიათებლები მოიცავს:

• 48 ports 10/100/1000 + 4x 10GE SFP+ for high-speed connectivity.
• Intuitive management via the Cisco Business mobile app and local web ინტერფეისი.
• Integrated IEEE 802.1X port security, Denial-of-Service (DoS) attack prevention, and Access Control Lists (ACLs).
• Energy-efficient design compliant with IEEE 802.3az.
• Limited lifetime hardware warranty with complimentary 1-year technical support.

Image: Various models of the Cisco Catalyst 1200 Series Smart Switches, showcasing different port configurations.

Cisco Catalyst Series Introduction

დაყენება და ინსტალაცია

Unboxing the Switch

Before beginning installation, ensure all components are present. The package typically includes:

• Cisco Catalyst 1200-48T-4X Smart Switch
• დენის კაბელი ან ადაპტერი
• USB ტიპის C კაბელი
• სამონტაჟო აპარატურა

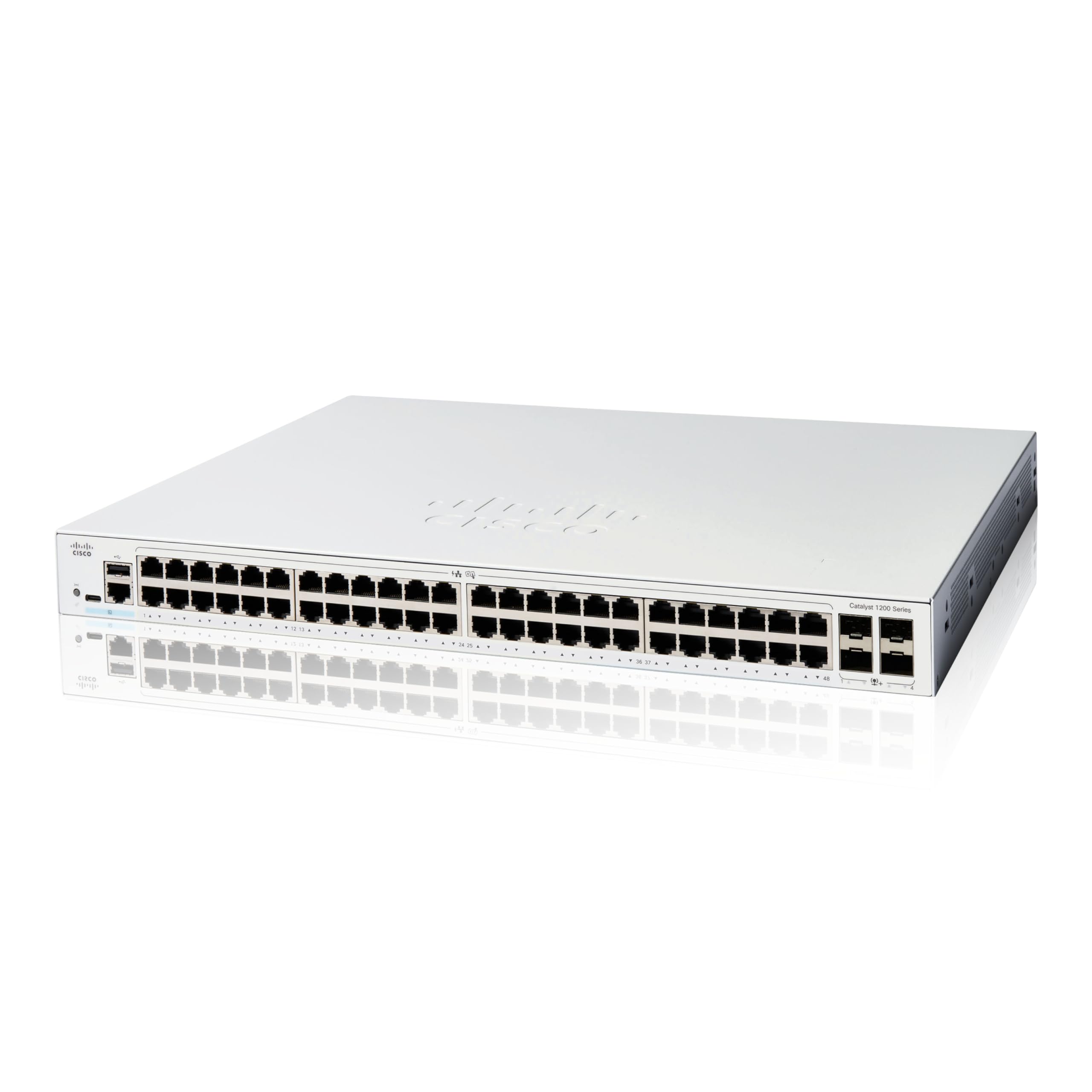

სურათი: წინა მხარე view of the Cisco Catalyst 1200-48T-4X Smart Switch, showing the 48 Gigabit Ethernet ports and 4 SFP+ uplink ports.

Cisco Catalyst 1200 Series Switches Unboxing Video

საწყისი კავშირები

1. დენის კავშირი: Connect the provided power cord or adapter to the switch and a power outlet.
2. როუტერის კავშირი: Connect an Ethernet cable from your router's LAN port to any of the Gigabit Ethernet ports on the switch.
3. მოწყობილობის კავშირები: Connect your network devices (computers, servers, access points) to the remaining Gigabit Ethernet ports on the switch.

მობილური აპლიკაციის დაყენება

The Cisco Business mobile app simplifies setup and management:

1. ჩამოტვირთეთ აპლიკაცია: Download the Cisco Business mobile app from your device's app store (available for Android and iOS).
2. შექმენით საიტი: Launch the app and create a new site, providing your site's name and address.
3. Configure Credentials: Answer a few questions to configure site credentials (username and password).
4. მოწყობილობების დამატება: Follow the in-app instructions to add your wired and wireless devices to the network.

Image: A person interacting with the Cisco Business mobile app on a smartphone, demonstrating the ease of network management.

გადამრთველის მუშაობა

The Cisco Catalyst 1200-48T-4X Smart Switch offers flexible management options to monitor and configure your network.

Cisco Business Mobile App

The mobile app allows you to monitor your network from anywhere. It provides real-time device status, allows you to perform actions like rebooting devices or upgrading firmware, and gives insights into connected clients and network usage.

Web User Interface (UI) and Cisco Business Dashboard

For advanced configuration and comprehensive network management, utilize the local web UI or the Cisco Business Dashboard. These tools provide detailed settings for VLANs, QoS, security, and other network parameters.

Image: Two individuals reviewing network data on a computer screen, illustrating collaborative use of the Cisco Business Dashboard for network management.

მოვლა და უსაფრთხოება

Maintaining your switch ensures optimal performance and network security.

ენერგოეფექტურობა

The switch is designed with energy-efficient features, compliant with IEEE 802.3az Energy Efficient Ethernet, to help reduce operational costs. Ensure proper ventilation to maintain efficient cooling.

ქსელის უსაფრთხოება

The Cisco Catalyst 1200-48T-4X includes robust security features:

• IEEE 802.1X Port Security: Controls access to your network by authenticating devices connected to switch ports.
• მომსახურების უარყოფის (DoS) შეტევის პრევენცია: Increases network uptime by protecting against common DoS attacks.
• წვდომის კონტროლის სიები (ACL): Protects the network from unauthorized users and traffic by filtering packets based on defined rules.

რეგულარულად რეview and update your security configurations to protect your network from evolving threats.

პრობლემების მოგვარება

If you encounter issues with your Cisco Catalyst 1200-48T-4X Smart Switch, consider the following basic troubleshooting steps:

• შეამოწმეთ ფიზიკური კავშირები: Ensure all power and Ethernet cables are securely connected.
• დენის ციკლი: Disconnect the power, wait 10 seconds, and then reconnect the power to restart the switch.
• შეამოწმეთ LED ინდიკატორები: Consult the Quick Start Guide or the Documentation Portal (accessible via QR code on the product packaging) to understand the meaning of LED indicators, which can help diagnose connection or operational issues.
• Review კონფიგურაცია: Use the Cisco Business mobile app or the web UI to check your network configuration settings.
• დოკუმენტაციის გაცნობა: Refer to the comprehensive documentation available on the Cisco website for detailed troubleshooting guides.

სპეციფიკაციები

გარანტია და მხარდაჭერა

Cisco provides comprehensive support for the Catalyst 1200-48T-4X Smart Switch.

• შეზღუდული სამუდამო აპარატურის გარანტია: The product is covered by a limited lifetime hardware warranty.
• Complimentary Technical Support: Enjoy one year of complimentary technical support to assist with any operational queries or issues.

For further assistance, please refer to the official Cisco support channels or the Cisco Business mobile app.

Image: A Cisco support professional wearing a headset, smiling while working at a computer, symbolizing available technical assistance.
