ICSTATION Heart Shaped LED Light Soldering Project Kit Instruction Manual

1. შესავალი

This manual provides detailed instructions for assembling and operating your ICSTATION Heart Shaped LED Light Soldering Project Kit. Designed for beginners and electronics enthusiasts, this kit offers a practical way to enhance soldering skills while creating a decorative LED light display. Please read all instructions carefully before beginning assembly.

2. რა არის ყუთში

Verify that all components listed below are present in your kit before starting assembly.

Image: All components included in the Heart Shaped LED Light Soldering Project Kit, laid out for inspection.

• Heart-shaped PCB (Printed Circuit Board)
• 32 RGB LED- ები
• STC89C58RD Microcontroller
• DIP40 IC Socket
• რეზისტორები (სხვადასხვა მნიშვნელობები)
• Capacitors (various values)
• კრისტალური ოსცილატორი
• დენის გადამრთველი
• Battery Holder (for 2x AAA batteries)
• Acrylic Case components (front, back, stand)
• ხრახნები
• დამაკავშირებელი სადენები

3. უსაფრთხოების ინფორმაცია

გაფრთხილება: This kit involves soldering, which uses high temperatures and can produce fumes. Always follow these safety guidelines:

• Work in a well-ventilated area to avoid inhaling solder fumes.
• Wear safety glasses to protect your eyes from splashes or flying debris.
• Use a soldering iron stand to prevent accidental burns.
• Ensure the soldering iron is unplugged and cooled down when not in use.
• Keep flammable materials away from your work area.
• კარგად დაიბანეთ ხელები შედუღების შემდეგ.
• შეინახეთ ბავშვებისთვის მიუწვდომელ ადგილას, თუ არ ხართ ზრდასრულის უშუალო მეთვალყურეობის ქვეშ.

4. მონტაჟი და აწყობა

This section guides you through the assembly process. A soldering iron, solder, and basic tools like wire cutters and needle-nose pliers are required (not included in this kit).

4.1. მომზადება

• Unpack all components and verify against the "What's in the Box" list.
• Prepare your soldering workstation with adequate ventilation and lighting.
• Familiarize yourself with the PCB layout and component placement.

4.2. Soldering Components

Solder components in order from smallest to largest to ensure easier access. Start with resistors, then capacitors, crystal, and finally the IC socket and LEDs.

1. რეზისტორები: Identify the resistors by their color codes or markings. Insert them into their designated positions (R1-R32) on the PCB. Bend the leads on the underside to hold them in place, then solder and trim excess leads.


Image: Close-up of the heart-shaped PCB with resistors correctly soldered into place.

2. Capacitors and Crystal: Solder the small ceramic capacitors and the crystal oscillator into their respective positions. Ensure the crystal is securely seated.
3. Microcontroller Socket: Place the DIP40 IC socket onto the PCB, aligning the notch on the socket with the notch on the PCB silkscreen. Solder all pins. This socket allows for easy insertion/removal of the microcontroller.
4. LED- ები: Carefully insert each of the 32 RGB LEDs into their designated holes. LEDs are polarized; ensure the longer lead (anode) goes into the hole marked with a '+' or the square pad, and the shorter lead (cathode) goes into the round pad. Solder each LED and trim the leads.
5. დენის შეცვლა: Solder the power switch into its position.
6. Battery Holder Wires: Connect the red wire from the battery holder to the '+' pad and the black wire to the '-' pad on the PCB.

4.3. Microcontroller Installation

Gently insert the STC89C58RD microcontroller into the soldered IC socket. Ensure the notch on the microcontroller aligns with the notch on the socket and PCB. Apply even pressure to avoid bending pins.

4.4. Acrylic Case Assembly

1. Remove the protective film from all acrylic pieces.
2. Attach the stand piece to the bottom of one heart-shaped acrylic cover using the provided screws.
3. Carefully place the assembled PCB into the acrylic cover with the stand.
4. Align the second acrylic cover on top and secure it with the remaining screws. Ensure the power switch is accessible.

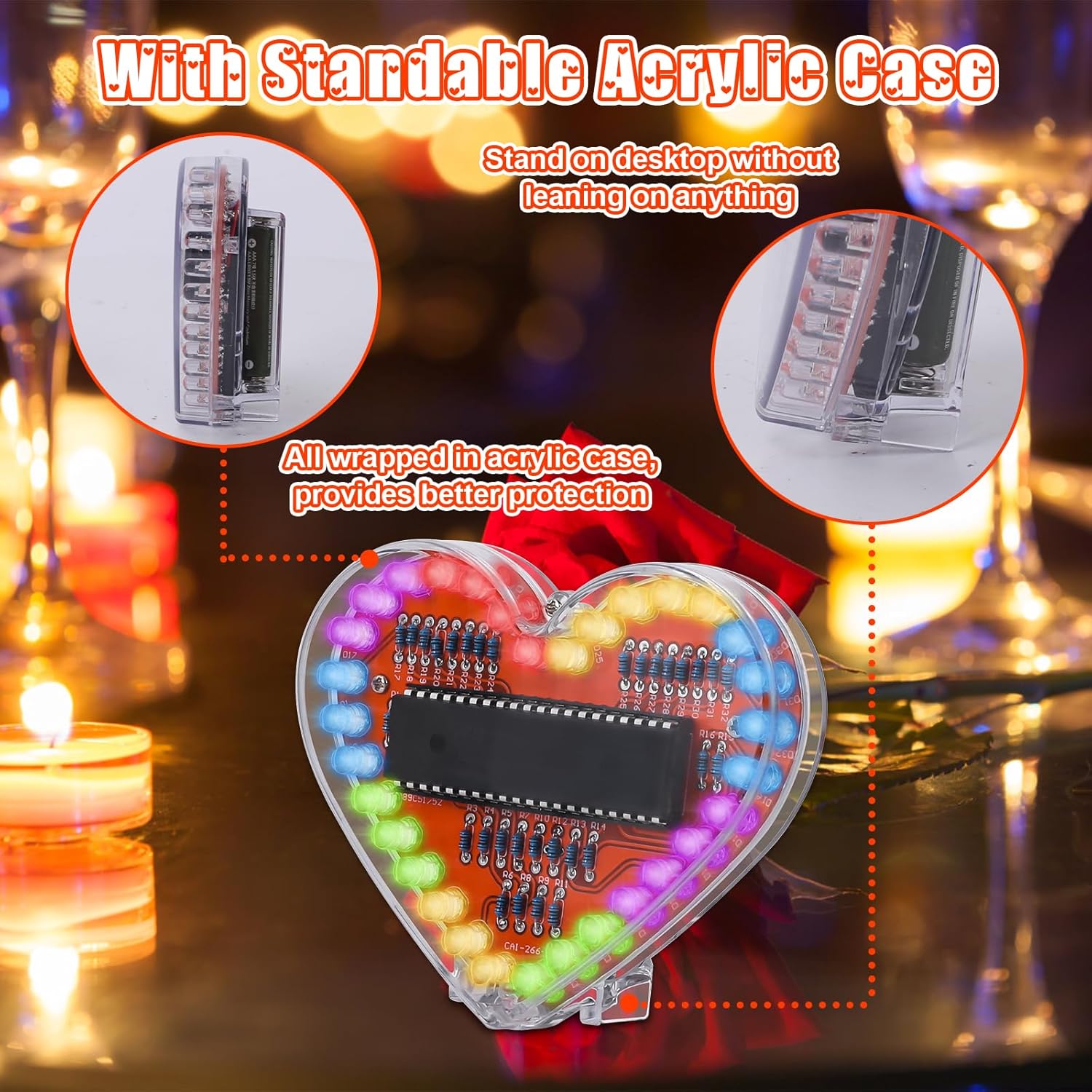

Image: The finished heart-shaped LED light enclosed in its standable acrylic case.

4.5. ბატარეის მონტაჟი

Insert two AAA batteries (not included) into the battery holder, observing correct polarity (+/-). The device is now ready for operation.

Image: Close-up of the battery compartment, showing where to insert two AAA batteries.

4.6. აწყობის ვიდეო სახელმძღვანელო

აწყობის პროცესის ვიზუალური ინსტრუქციისთვის, გთხოვთ, იხილოთ პროდუქტის ოფიციალური ვიდეო ქვემოთ:

5. საოპერაციო ინსტრუქციები

Once assembled and batteries are installed, operating the Heart Shaped LED Light is straightforward.

1. ჩართვა: Locate the power switch on the side or bottom of the acrylic case. Slide the switch to the "ON" position.
2. სინათლის ჩვენება: The 32 RGB LEDs will immediately begin to display a variety of colorful patterns and effects. The microcontroller is pre-programmed with multiple light show sequences.


Image: The assembled heart-shaped LED light showcasing its dynamic rainbow LED light show.

3. Გამორთვა: To turn off the device, slide the power switch to the "OFF" position.

6. მოვლა

• დასუფთავება: Use a soft, dry cloth to gently wipe the acrylic case. Avoid abrasive cleaners or solvents.
• ბატარეის გამოცვლა: If the LED light show becomes dim or stops working, replace the two AAA batteries. Ensure correct polarity.
• შენახვა: Store the kit in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, remove the batteries to prevent leakage.
• კომპონენტის შემოწმება: Periodically check soldered joints for any signs of corrosion or loose connections. Re-solder if necessary.

7. Დიაგნოსტიკა

8. სპეციფიკაციები

Image: Diagram showing the dimensions of the assembled Heart Shaped LED Light.

9. გარანტია და მხარდაჭერა

Specific warranty information for this product is not provided in the available data. For any technical support, missing parts, or inquiries regarding your ICSTATION Heart Shaped LED Light Soldering Project Kit, please contact the manufacturer or seller directly through the platform where the product was purchased.

Manufacturer: ICSTATION
