LiebeWH HG15-300 მმ ხაზოვანი გიდის რელსის სისტემის მომხმარებლის სახელმძღვანელო

1. შესავალი

This manual provides essential information for the proper installation, operation, and maintenance of your LiebeWH HG15-300mm Linear Guide Rail System. This system is designed for applications requiring precise linear motion, such as automation equipment and measuring devices. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.

სურათი 1.1: დასრულდაview of the LiebeWH HG15-300mm Linear Guide Rail System. This image displays two linear guide rails, each equipped with two HGH15 bearing slide blocks, ready for installation.

2. პროდუქტის მახასიათებლები

• მაღალი სიზუსტე: Supports the exchange of sliders with high accuracy and minimal error, ensuring smooth movement.
• მტვრის პრევენცია: Equipped with thickened pads at both ends to effectively prevent dust ingress, contributing to a longer service life.
• გამძლე კონსტრუქცია: Manufactured from high-hardness cast iron, providing wear resistance, good durability, and stability.
• მრავალმხრივი აპლიკაცია: Suitable for automation equipment, measuring equipment, and various other machines requiring precise linear motion.
• პროფესიონალური დიზაინი: Features professional linear guide sliders, casting, thick materials, and exquisite workmanship for ease of operation.

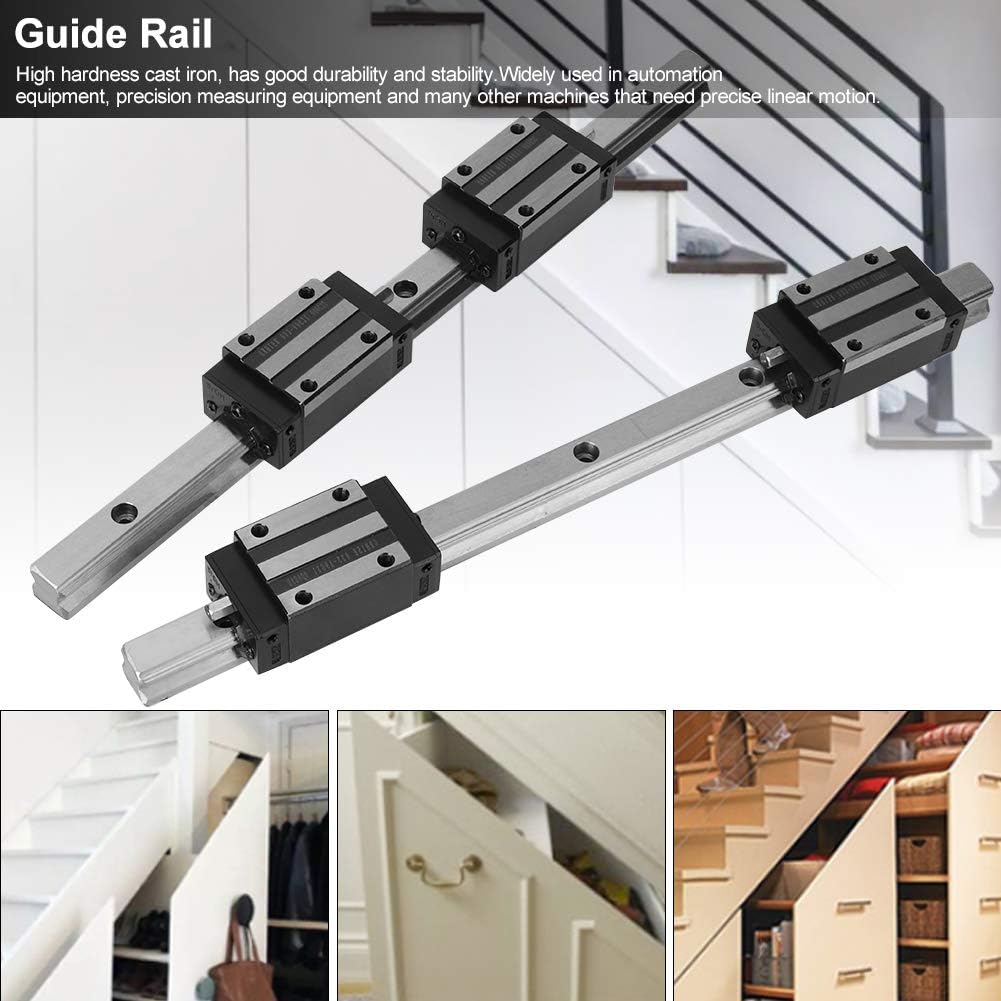

სურათი 2.1: დეტალურად view of a single linear guide rail and its corresponding slide block. This image emphasizes the material quality and design features.

3. პაკეტის შიგთავსი

შეფუთვის გახსნისას, გთხოვთ, დარწმუნდეთ, რომ ქვემოთ ჩამოთვლილი ყველა კომპონენტი ადგილზეა და დაუზიანებელია:

• 2 x Linear Guide Rail (HG15-300mm)
• 4 x HGH15 Bearing Slide Block
• 1 x Bag of Installation Accessories (e.g., screws, tools)

სურათი 3.1: Contents of the package, showing two linear guide rails, four slide blocks, and a small bag containing installation accessories.

4. დაყენება და ინსტალაცია

Proper installation is crucial for the performance and lifespan of the linear guide system. Follow these steps carefully:

1. მომზადება: Ensure the mounting surface is clean, flat, and free from debris. Any unevenness can affect the linear guide's accuracy.
2. Rail Placement: Position the linear guide rails on the desired mounting surface. The rails have pre-drilled holes for secure fastening.
3. უსაფრთხო რელსები: Use appropriate fasteners (from the installation accessories bag or suitable alternatives) to secure the rails to the mounting surface. Tighten screws evenly to avoid distortion.
4. Slide Block Installation: Carefully slide the HGH15 bearing slide blocks onto the linear rails. Ensure they move smoothly without obstruction. The design allows for easy exchange of sliders.
5. გასწორება: For systems requiring multiple rails, ensure precise parallel alignment between them. Misalignment can lead to increased friction and reduced accuracy.
6. მტვრისგან დაცვა: Verify that the thickened pads at both ends of the slide blocks are properly seated to prevent dust from entering the bearing mechanism.

სურათი 4.1: Angled perspective of the linear guide rails and slide blocks, illustrating the components as they would appear during installation.

5. ოპერაცია

The LiebeWH HG15-300mm Linear Guide Rail System is designed for integration into various machinery requiring precise linear movement. Once properly installed, the system provides a stable and low-friction path for attached components.

• აპლიკაციის ჩატვირთვა: Ensure that the load applied to the slide blocks is within the specified radial thrust capacity. Overloading can lead to premature wear and reduced accuracy.
• გლუვი მოძრაობა: The hydrostatic bearing mechanism ensures smooth and consistent movement. If any resistance or uneven motion is detected, refer to the troubleshooting section.
• გარემოსდაცვითი მოსაზრებები: Operate the system in an environment free from excessive dust, moisture, or corrosive substances to maintain optimal performance and extend lifespan.

სურათი 5.1: Example of linear guide rails in an operational context, showing their use in an automated system for precise movement.

6. მოვლა

Regular maintenance is essential to preserve the accuracy and extend the service life of your linear guide system.

6.1. შეზეთვა

• საპოხი მასალის ტიპი: Use oil lubrication.
• მეთოდი: Drip lubrication is the recommended method.
• სიხშირე: Inspect the lubrication status regularly. Maintain a boundary lubrication status to prevent excessive wear. The frequency will depend on the operating environment and usage intensity.
• განაცხადი: Apply lubricant directly to the moving parts of the slide blocks and rails as per the drip lubrication method.

6.2. დასუფთავება

• მტვრის მოცილება: Periodically clean any accumulated dust or debris from the rails and slide blocks. The thickened pads help, but external cleaning is still necessary.
• ინსპექტირება: Regularly inspect the rails and slide blocks for any signs of wear, damage, or corrosion. Address any issues promptly.

7. Დიაგნოსტიკა

ეს განყოფილება გთავაზობთ გადაწყვეტილებებს იმ გავრცელებული პრობლემებისთვის, რომლებსაც შეიძლება წააწყდეთ.

8. სპეციფიკაციები

სურათი 8.1: Dimensional drawing of the linear guide rail and a single slide block, indicating key measurements for reference.

9. გარანტია და მხარდაჭერა

For warranty information, technical support, or any inquiries regarding your LiebeWH HG15-300mm Linear Guide Rail System, please contact the manufacturer or your point of purchase. Keep your purchase receipt for warranty claims.

Manufacturer: LiebeWH

Model Number: LiebeWH759ywteocg
