ANJIELO SMART სადენიანი ვიდეო ინტერკომის სისტემის მომხმარებლის სახელმძღვანელო

1. შესავალი

This manual provides detailed instructions for the installation, operation, and maintenance of your ANJIELO SMART Wired Video Intercom System. This system includes a 7-inch touch screen indoor monitor, a 1080P outdoor doorbell camera, and two additional cameras, offering enhanced security and communication for your home or office. Please read this manual thoroughly before use to ensure proper functionality and safety.

2. პროდუქტი დასრულდაview

2.1. Indoor Monitor Features

• 7-inch HD IPS Touch Screen with Acrylic Wire Drawing Panel.
• Supports Tuya Smart / Smart Life mobile applications for remote access.
• Room-to-room intercom functionality.
• Door answering, monitoring, and unlocking capabilities.
• Motion detection support with photo and video playback.
• Adjustable color, brightness, and volume settings.
• Built-in memory for saving up to 86 pictures; supports external Micro SD card up to 128GB (not included).
• Six selectable ringtones.
• Hands-free dual-way communication.
• Supports connection of up to 2 call panels, 4 indoor monitors, and 2 IP cameras.
• Multi-language support: Chinese, English, German, French, Russian, Spanish, Arabic, Portuguese, Italian.
• Supports dual door unlocking (electric locks).
• Weather, calendar, and standby wallpaper display.
• CCTV Anti-tamper Alarm function.
• Three operational modes: At Home, Leave Home, Sleep Home.

2.2. Outdoor Doorbell Features

• 1080P Full HD camera with a 140° wide-angle lens.
• Anti-destructive metal material for increased durability.
• Two white LEDs for clear night vision.
• IC Card (13.56khz) support for unlocking.
• Dual-way intercom.
• მარტივი ინსტალაცია.
• Rust-proof metal call panel.
• IP65 weatherproof rating.
• High performance temperature resistance: -45 ℃ to +60 ℃.
• Supports dual unlock (electric locks).

3. დაყენება

3.1. პაკეტის შიგთავსი

თქვენი პაკეტი უნდა შეიცავდეს:

• 1 x გარე კარის ზარის მოწყობილობა
• 1 x Indoor Monitor Unit
• 2 x Additional Cameras (AHD 1080P)
• 1 x 32 GB Micro SD ბარათი
• Power Adapter for Monitor (DC15V 1.2A)
• Mounting Hardware and Connectors
• მომხმარებლის სახელმძღვანელო (ეს დოკუმენტი)

3.2. გაყვანილობის ინსტრუქციები

The ANJIELO SMART video intercom system requires wired connections between the indoor monitor and the doorbell, as well as between monitors and cameras. The monitor supports WiFi for network connectivity, but the core intercom functionality is wired.

Important Wiring Notes:

• The monitor and doorbell require a 4-wire connection.
• You can extend the distance between the monitor and doorbell, or between monitors, using RVV4 (4-core wire), Cat5, or Cat6 cables. The maximum recommended distance can exceed 300 feet (approximately 100 meters).
• The system supports connecting up to 2 CCTV cameras.

სურათი 1: System capacity and general wiring diagram. This diagram illustrates how multiple outdoor units, indoor monitors, and CCTV cameras can be interconnected within the system.

Connecting AHD Cameras

To connect AHD cameras (2MP 1080P AHD Camera only):

1. Ensure the camera is compatible (AHD1080/AHD720/TVI720/TVI1080/CVI720/CVI1080/CVBS). Set to CVBS if using 1200TVL.
2. Insert the BNC male connector of the camera into the BNC female connector and tighten it.
3. Connect the 2P wire between the "+-" of the BNC male connector and the CAM1 or CAM2 port on the monitor.

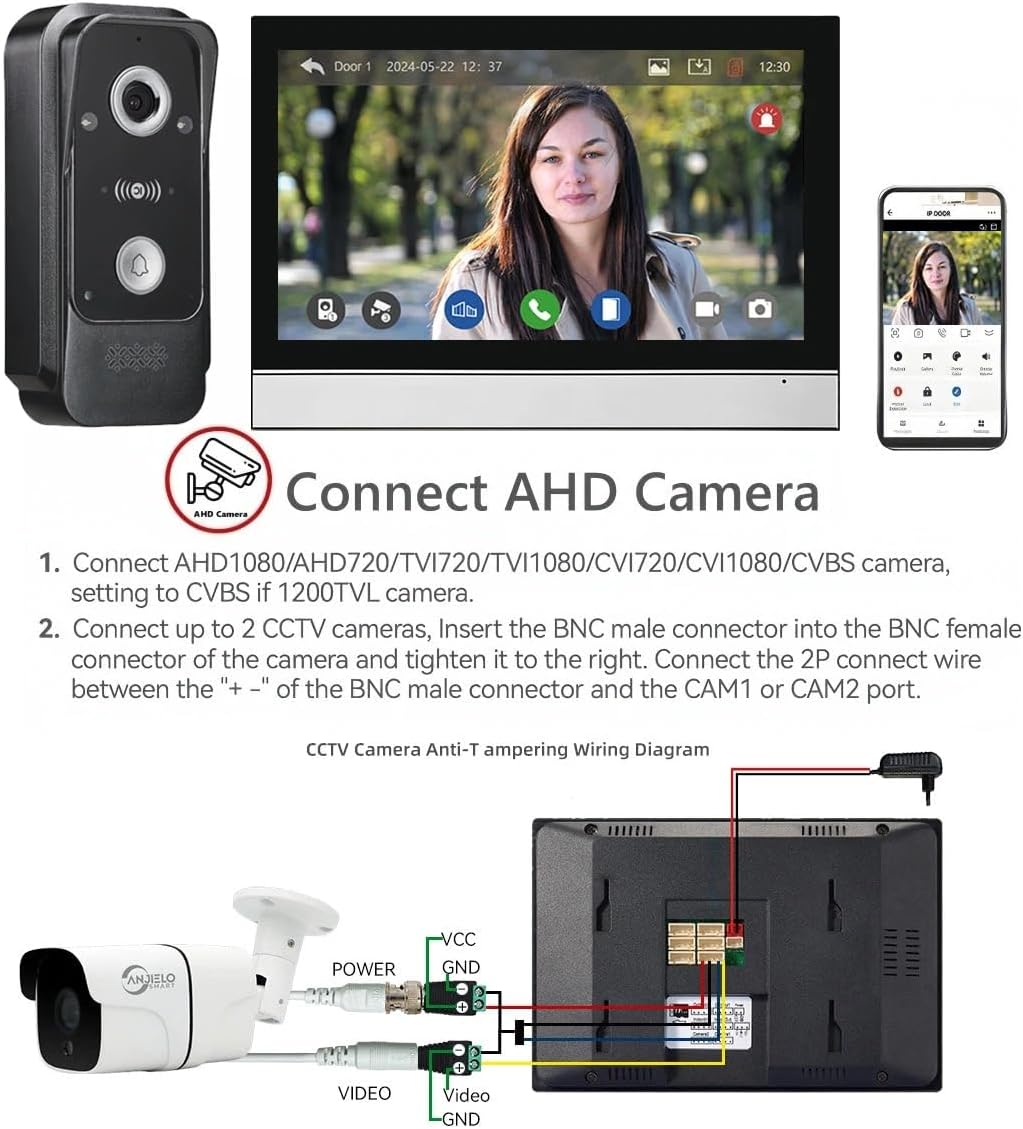

სურათი 2: CCTV Camera Anti-Tampering Wiring Diagram. This image shows the specific connections for integrating an AHD camera with the indoor monitor, including power and video signals.

3.3. Internet Connection & App Setup

The main monitor can connect to your home WiFi network (2.4GHz band only) to enable remote viewing and control via the Tuya Smart or Smart Life app.

1. Ensure your monitor is powered on and connected to the network.
2. ჩამოტვირთეთ ტუია სმარტი or ჭკვიანი ცხოვრება app on your mobile phone or tablet.
3. გახსენით აპლიკაცია და მიჰყევით ეკრანზე მითითებებს ახალი მოწყობილობის დასამატებლად.
4. Scan the QR code displayed on the monitor screen to bind the device to your app. This process typically takes less than two minutes.
5. დაკავშირების შემდეგ, შეგიძლიათ view visitor information, receive alerts, and control the system remotely from your smartphone.

სურათი 3: Easy Internet Connection. This image demonstrates the process of scanning a QR code on the monitor with a smartphone to connect the device to the Tuya or Smart Life app.

4. ოპერაცია

4.1. ორმხრივი აუდიო კომუნიკაცია

When a visitor presses the doorbell, the indoor monitor will ring, and you can see and speak to the visitor hands-free. The system supports clear two-way audio communication.

სურათი 4: Two-Way Audio. This image illustrates the two-way audio feature, allowing communication between the doorbell and the indoor monitor or connected mobile devices.

4.2. Motion Detection & Recording

The system is equipped with motion detection. When motion is detected or the doorbell is pressed, the camera will automatically record videos or capture snapshots. These recordings are saved to the included 32GB Micro SD card and can be viewed on your monitor or mobile phone.

სურათი 5: Motion Detection. This image demonstrates the motion detection feature, showing how movement triggers recording and sends alerts to connected devices.

4.3. ღამის ხედვა

The outdoor doorbell camera features two white LEDs for enhanced night vision, ensuring clear visibility and recording even in low-light or dark conditions.

სურათი 6: IR Night Vision. This image highlights the infrared night vision feature, ensuring details are captured even in complete darkness.

4.4. Door Unlocking

The system supports dual door unlocking for electric locks. You can unlock doors directly from the indoor monitor with a single button press.

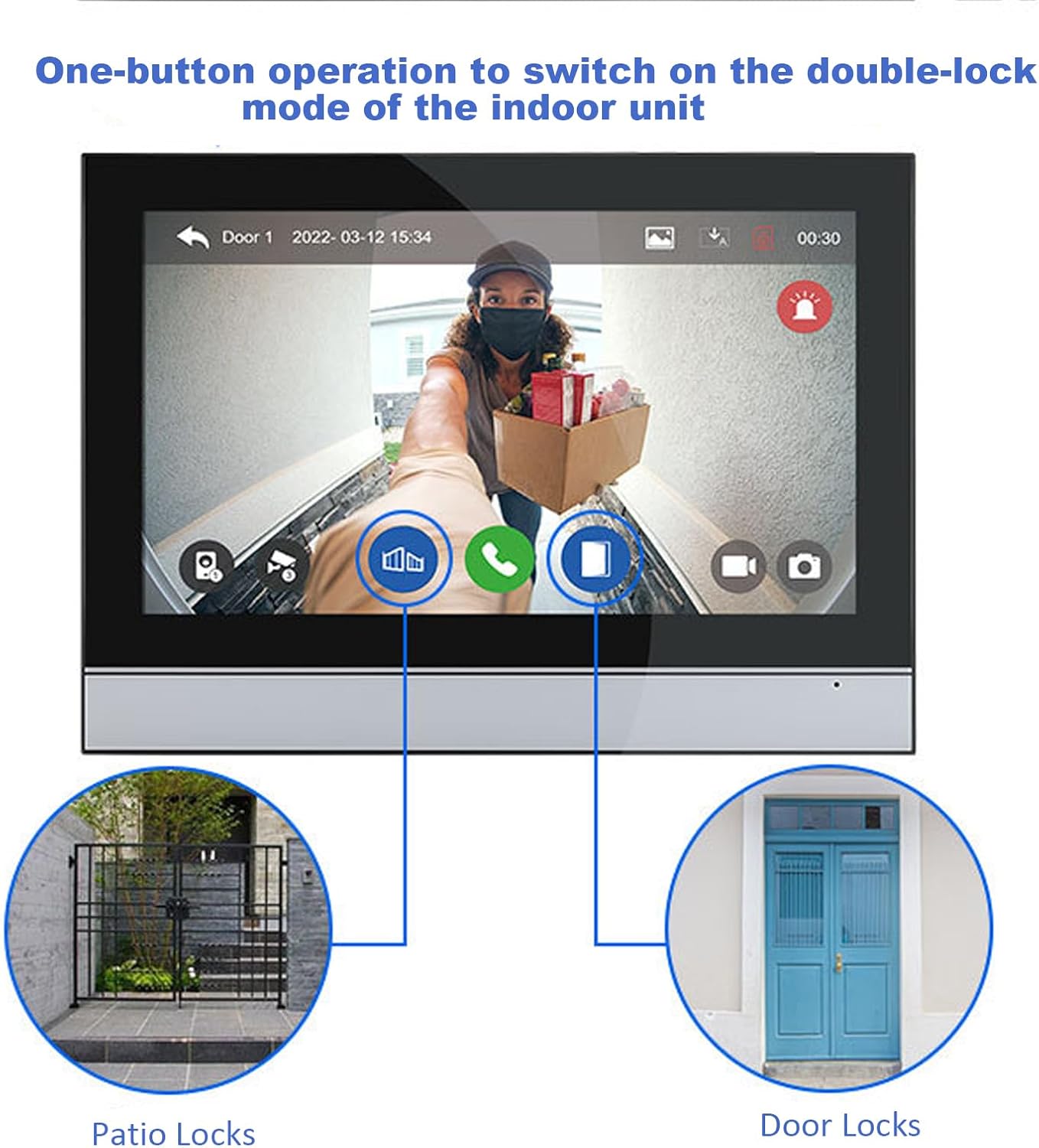

სურათი 7: One-Button Unlocking. This image illustrates the one-button operation on the indoor unit to control and unlock connected patio and main door locks.

4.5. Multi-Device Usage

The system is highly expandable, supporting connections for up to 2 outdoor doorbells, 6 indoor monitors, and 2 CCTV cameras. This allows for comprehensive surveillance and communication across multiple rooms and entry points. You can also share access with up to 5 mobile phones via the app.

5. მოვლა

5.1. ამინდისადმი მდგრადობა

The outdoor doorbell unit is designed with an IP65 weatherproof rating, making it resistant to dust and water ingress. It can operate effectively in temperatures ranging from -45 ℃ to +60 ℃.

სურათი 8: IP65 Waterproof. This image demonstrates the outdoor doorbell's resistance to water, confirming its IP65 rating and wide operating temperature range.

5.2. ზოგადი მოვლა

• Clean the monitor screen and camera lens periodically with a soft, dry cloth to ensure clear visibility.
• მოერიდეთ უხეში ქიმიკატების ან აბრაზიული საწმენდების გამოყენებას.
• დარწმუნდით, რომ ყველა სადენიანი კავშირი უსაფრთხოდ არის დამაგრებული.
• სისტემა მოარიდეთ ძლიერ ელექტრომაგნიტურ ჩარევებს.

6. Დიაგნოსტიკა

6.1. გავრცელებული პრობლემები და გადაწყვეტილებები

7. ტექნიკური მახასიათებლები

8. გარანტია და მხარდაჭერა

For warranty information and technical support, please refer to the documentation provided with your purchase or contact ANJIELO SMART customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
