VCHOO SL02 Keyless Entry Door Lock User Manual

1. პროდუქტი დასრულდაview

The VCHOO SL02 Keyless Entry Door Lock is an advanced smart lock system designed to enhance the security and convenience of your home, hotel, or rental property. It offers multiple unlocking methods, including app control, user codes, one-time codes, and physical keys. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting.

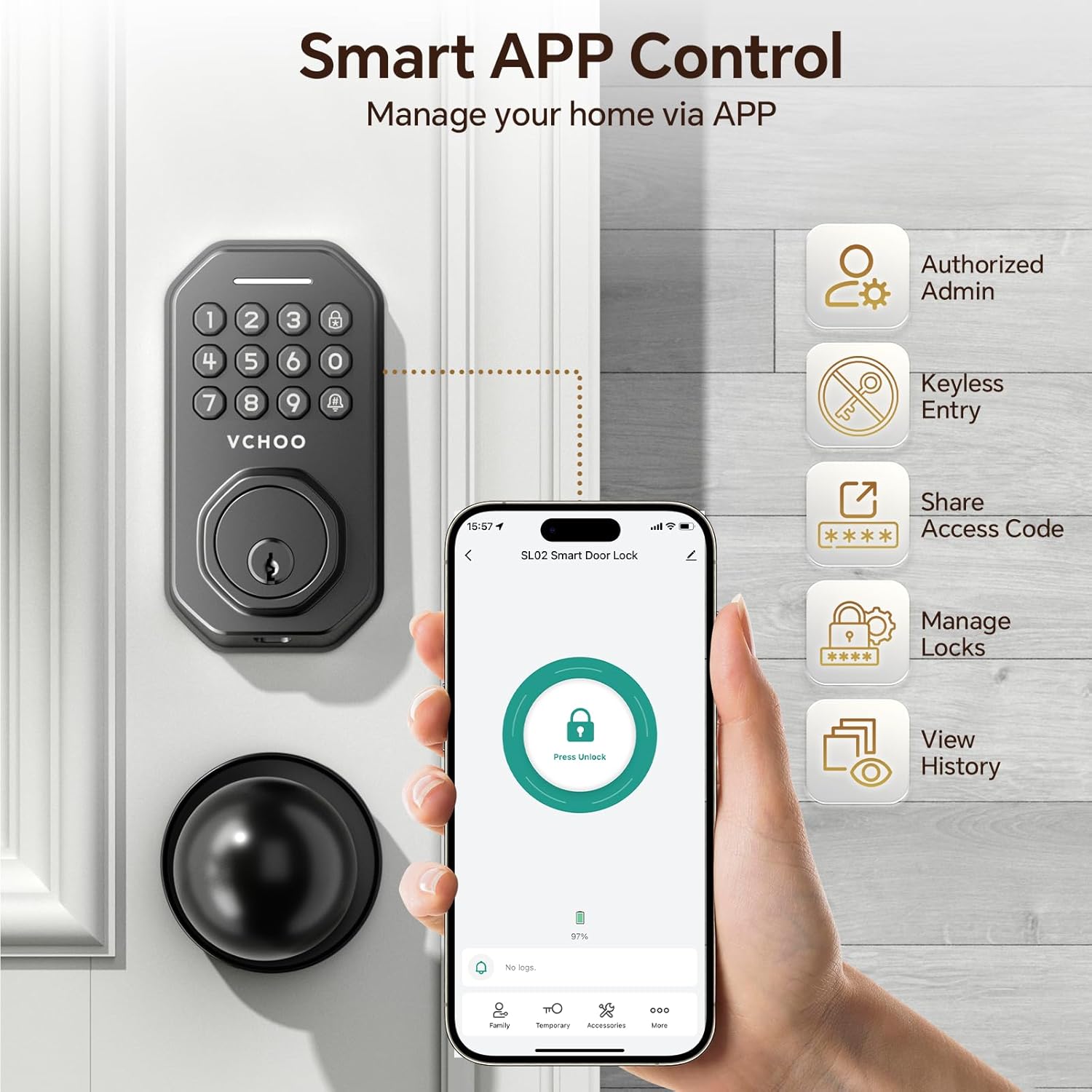

Image: VCHOO SL02 Keyless Entry Door Lock with its mobile application interface.

სურათი: მეტიview of the VCHOO SL02 smart lock's key features, including various unlocking methods and security functions.

2. ინსტალაციის სახელმძღვანელო

2.1. პაკეტის შიგთავსი

ინსტალაციის დაწყებამდე დარწმუნდით, რომ ყველა კომპონენტი ხელმისაწყოფია:

• Deadbolt Front/Rear Lock x 1
• Door Handle Front/Rear Lock x 1
• გასაღები x 2
• Lock Latch x2
• ხრახნიანი აქსესუარების პაკეტი x 2
• Hole Opening Diagram x 1
• Installation Tutorial Card x 2
• ინსტრუქციები x1

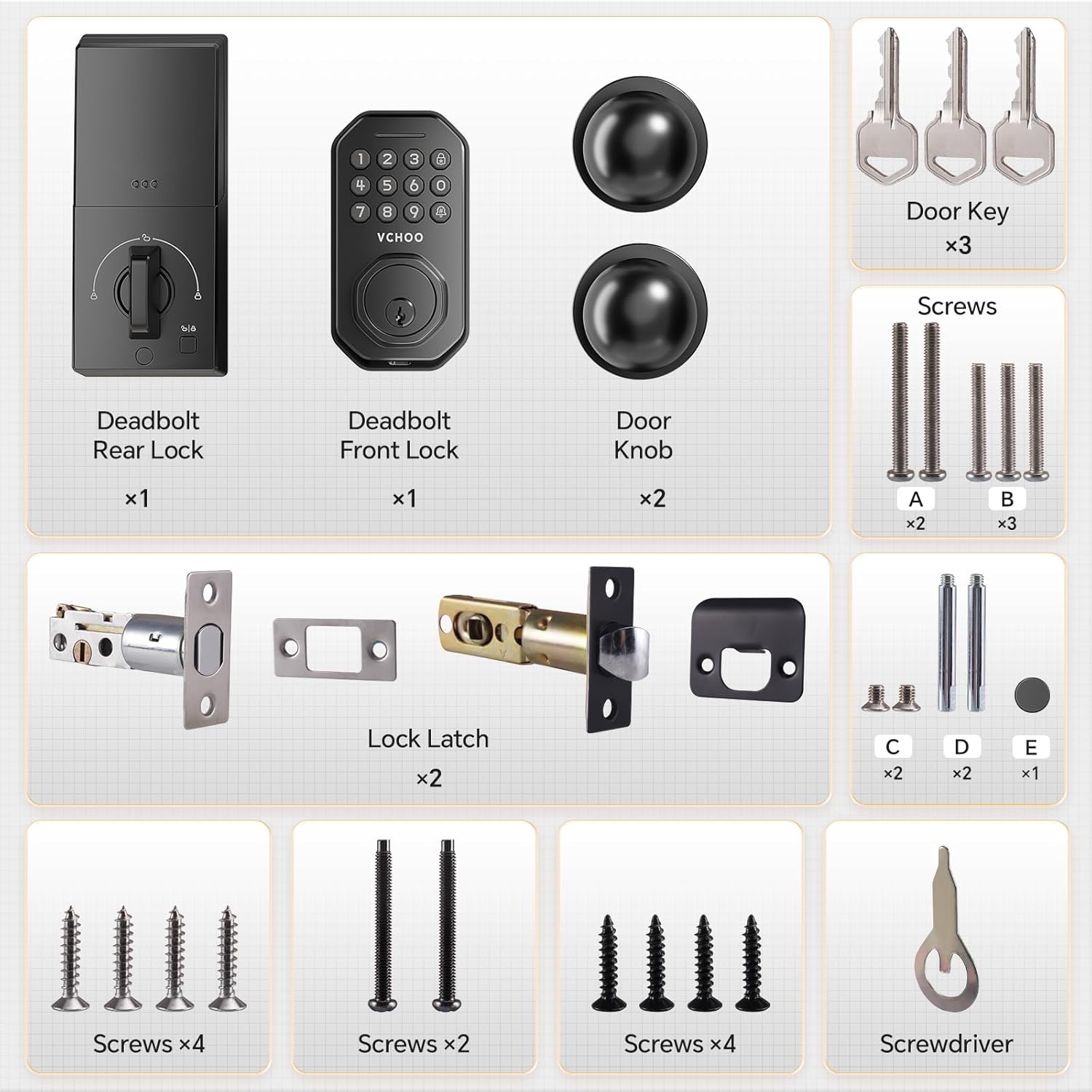

Image: All components included in the VCHOO SL02 Keyless Entry Door Lock package.

2.2. Door Compatibility

The VCHOO SL02 lock is compatible with US left and right-hand standard doors. Verify your door's dimensions and latch hole type before installation.

• Door thickness range: 1.31" - 2.16" (35-55mm)
• Backset: 2-3/8in or 2-3/4in (60 or 70mm)
• Suitable for chiseled and non-chiseled latch holes.
• Compatible with single cylinder doors. Not compatible with Mortise, Integrated, or Rim Cylinder lock types.

Image: Detailed measurements and compatibility checks for door size and latch hole type.

Image: Visual guide for checking door compatibility, including latch hole and lock types.

2.3. ინსტალაციის ეტაპები

Installation typically takes 10-15 minutes with a screwdriver. Follow the detailed instructions provided in the included 'Installation Tutorial Card' and 'Hole Opening Diagram'.

Image: Illustration of the easy installation process for the VCHOO SL02 lock.

3. საოპერაციო ინსტრუქციები

3.1. განბლოკვის მეთოდები

The VCHOO SL02 offers multiple convenient ways to unlock your door:

• აპლიკაციის კონტროლი: Manage and unlock the door remotely via the Smart Life app.
• მომხმარებლის კოდები: Program up to 100 unique user codes for regular access.
• ერთჯერადი კოდები: Generate temporary codes for visitors, maintenance workers, or deliveries.
• ფიზიკური გასაღებები: Use the included physical keys for traditional unlocking or as a backup.

Image: Visual representation of multiple unlocking methods and their suitability for different users.

Image: Practical tips for assigning and using different unlocking methods based on user needs.

3.2. ჭკვიანი აპლიკაციის კონტროლი

The Smart Life app allows comprehensive management of your lock:

• Set and manage secure passwords.
• Manage access rights for different users.
• View comprehensive access logs.
• Generate one-time passwords.
• Monitor lock status (locked/unlocked) in real-time.

Image: The Smart Life app interface demonstrating various control and management features for the VCHOO SL02 lock.

Image: Real-time monitoring and control of the smart lock via the mobile application.

Image: Illustration of how to enable remote functions via a gateway (sold separately).

3.3. Auto-Lock and One-Touch Lock

The lock features an auto-lock function, which can be set to automatically lock the door after 10-30 seconds. Additionally, a one-touch lock function allows instant locking with a single press.

Image: The auto-lock feature of the VCHOO SL02 lock, designed for effortless security.

Image: Explanation of the auto-lock and one-touch lock features for simplified security.

3.4. ანტი-პიპინგის პაროლი

To enhance security, the anti-peeping password feature allows you to enter random digits before or after your actual code. This prevents others from guessing your password by observing your input.

Image: How the anti-peeping keypad works to protect your password from onlookers.

3.5. Auto Lock Setting Video

Watch this official video for a step-by-step guide on setting up the auto-lock feature.

4. მოვლა

4.1. Battery Replacement and Alerts

The lock operates on 4 AA batteries (not included). The lock will indicate a low battery status with a green light. Replace batteries promptly when this alert appears. In emergencies, a TYPE-C charging port is available for temporary power to unlock the door.

Image: Details on battery replacement, low battery alerts, and the emergency Type-C charging port.

4.2. Durability and Weather Resistance

The VCHOO SL02 is constructed from sturdy zinc alloy and is designed for durability. It is IP54 weatherproof, ensuring reliable operation in various weather conditions, from -4°F to +140°F (-20°C to 60°C).

Image: Internal structure and durability test results for the VCHOO SL02 lock, highlighting its robust construction.

Image: The IP54 weatherproof design of the VCHOO SL02 lock, showing its resistance to water.

Image: The VCHOO SL02 lock's ability to withstand various weather conditions.

5. Დიაგნოსტიკა

5.1. გავრცელებული პრობლემები და გადაწყვეტილებები

6. სპეციფიკაციები

7. გარანტია და მხარდაჭერა

For warranty information and customer support, please refer to the contact details provided with your product packaging or visit the official VCHOO webსაიტი. შეინახეთ თქვენი შესყიდვის ქვითარი საგარანტიო პრეტენზიებისთვის.
