JONSBO D32 PRO Micro-ATX კომპიუტერის კორპუსის ინსტრუქციის სახელმძღვანელო

1. პროდუქტი დასრულდაview

The JONSBO D32 PRO is a compact and highly compatible Micro-ATX PC case, designed to offer flexibility and optimized performance for various hardware configurations. Its innovative A/B mode allows for different motherboard layouts, catering to both standard and back-connect motherboards. This case is engineered for efficient cooling and easy installation, making it suitable for building powerful mini desktop systems.

სურათი 1.1: წინა view of the JONSBO D32 PRO case with internal components illuminated.

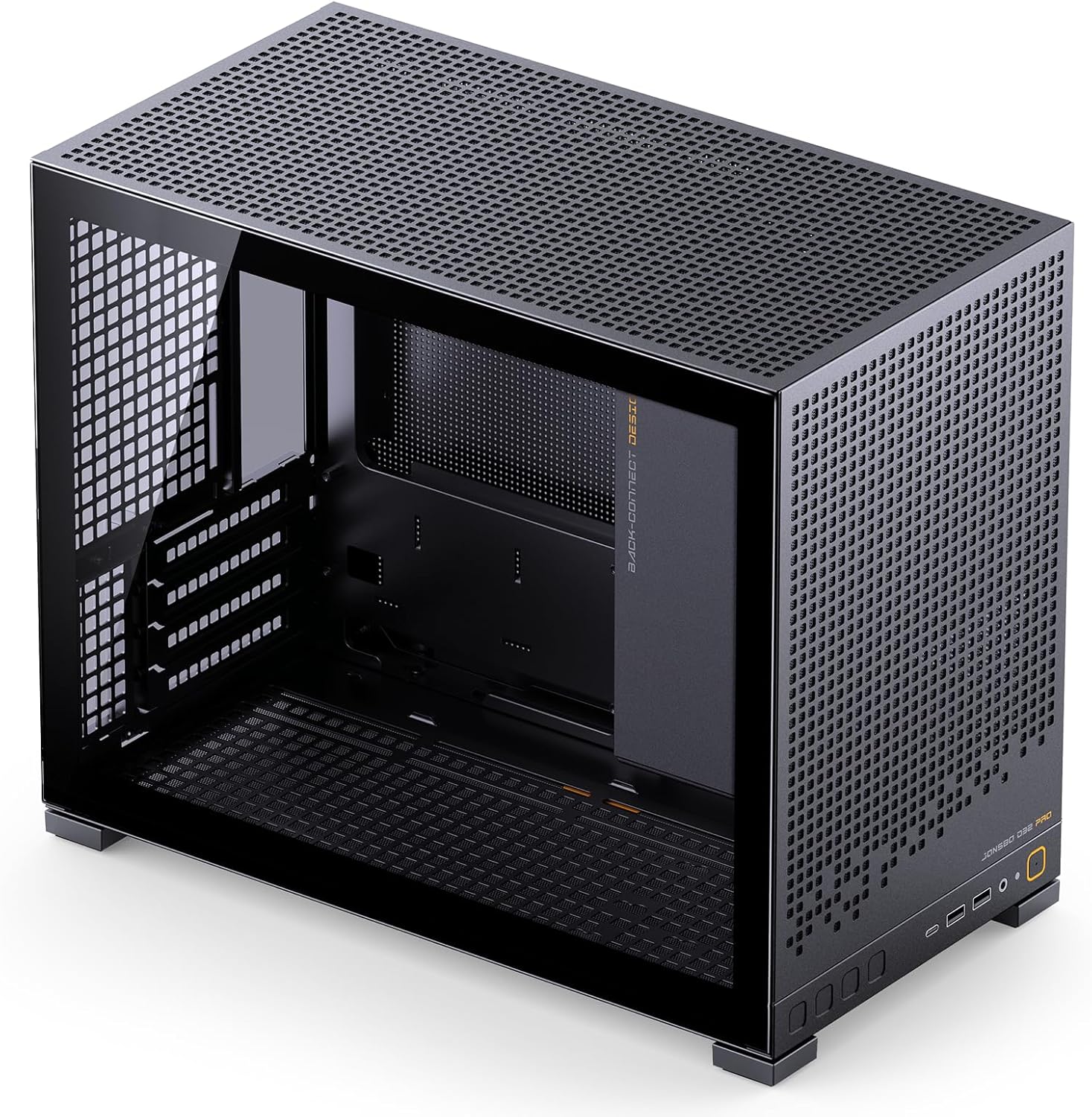

სურათი 1.2: დახრილი view highlighting the internal structure and space of the D32 PRO case.

2. ძირითადი მახასიათებლები

• მაღალი თავსებადობა: Supports Micro-ATX and Mini-ITX motherboards, including MATX back-connect/BTF motherboards.
• კომპაქტური დიზაინი: 24L volume mini desktop case with dimensions of D396×W207×H314mm (foot included).
• GPU კლირენსი: იტევს 365 მმ-მდე სიგრძის ვიდეო ბარათებს.
• გაგრილების მხარდაჭერა: Supports 240mm AIO liquid coolers and air coolers up to 163mm (AMD CPU) or 164mm (Intel CPU) in B mode, and 169mm (AMD CPU) or 170mm (Intel CPU) in A mode.
• PSU მხარდაჭერა: Compatible with ATX/SFX-L/SFX PSUs (Max. L200mm, not compatible with 16A plugs).
• შენახვის პარამეტრები: Up to 4 x 2.5" drives or 2 x 2.5" + 2 x 3.5" drives (configurations depend on other hardware).
• ოპტიმიზებული ჰაერის ნაკადი: Supports up to 6 cooling fans: Top (2x 120mm/140mm), Rear (1x 120mm), Bottom (3x 120mm/2x 140mm).
• წინა I/O პორტები: Includes 2x USB3.2 Gen1 Type-A, 1x USB3.2 Gen 2 Type-C, 1x AUDIO, 1x MIC.
• Visual Optimization: Tempered glass side panel and adjustable motherboard cable management cover for a clean interior.
• მარტივი ინსტალაცია: Detachable PCI-E position for unobstructed graphics card insertion.

Figure 2.1: Internal component layout highlighting key areas for installation.

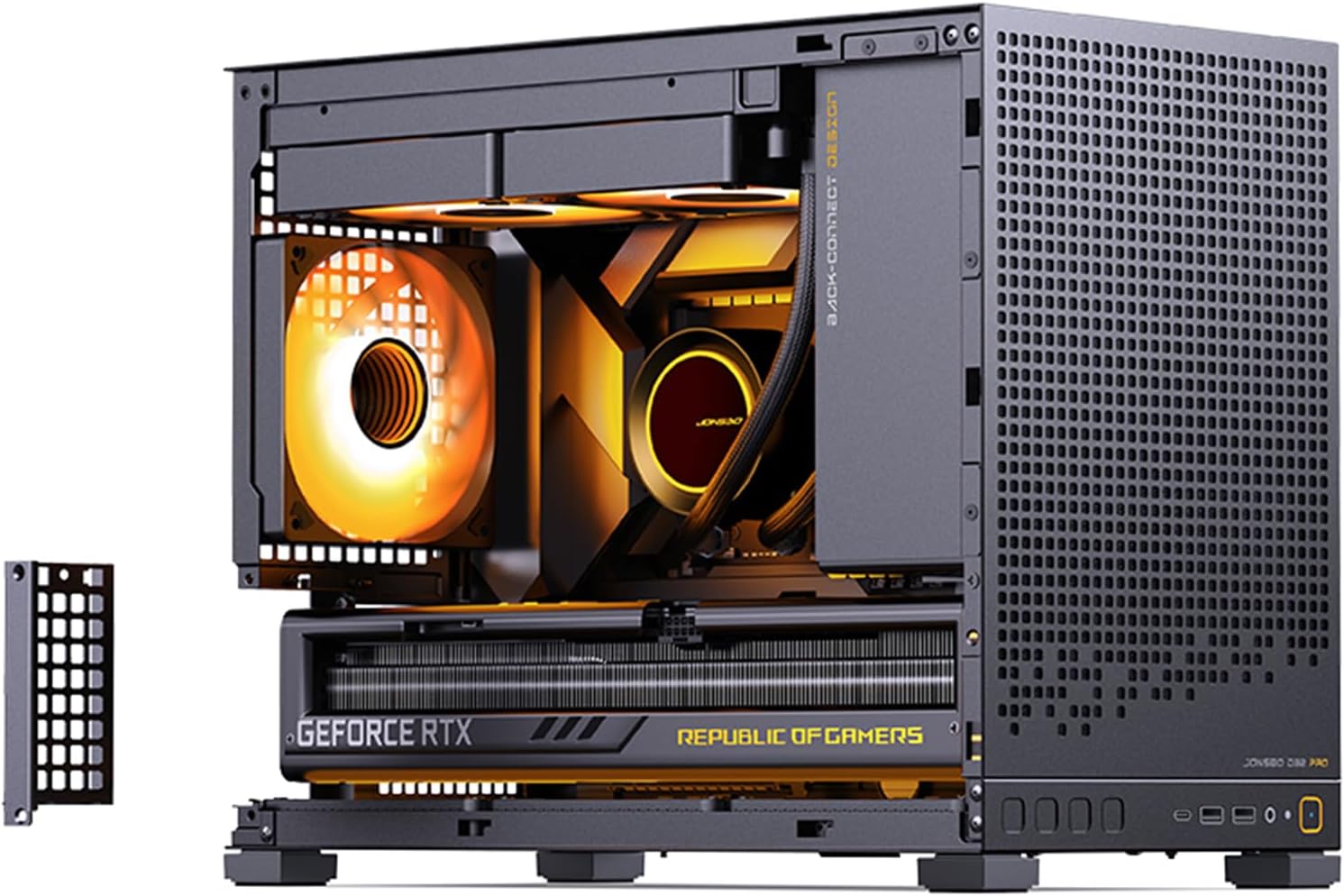

Figure 2.2: Detachable PCI-E bracket for simplified graphics card installation.

Figure 2.3: Included adjustable graphics card support bracket to prevent GPU sag.

3. დაყენება და ინსტალაცია

Careful planning is essential before beginning your PC build. The JONSBO D32 PRO offers two motherboard modes (A/B) to optimize compatibility and cable management. Ensure you select the correct mode for your motherboard type.

3.1. Motherboard Mode Selection (A/B Mode)

The D32 PRO features a switchable motherboard compartment to support both standard Micro-ATX and back-connect Micro-ATX motherboards. This affects the available space for CPU coolers and cable routing.

• A Mode (Factory Default): Compatible with ordinary motherboards, providing ample space for air-cooled heat sinks (up to 170mm Intel CPU / 169mm AMD CPU) and graphics cards. This mode is ideal for traditional builds.
• B რეჟიმი: Designed for back-connect motherboards, offering increased space for rear-mounted cables. In this mode, CPU air cooler clearance is slightly reduced (up to 164mm Intel CPU / 163mm AMD CPU). Manual switching of the chassis structure is required for B mode.

Figure 3.1: A/B Mode diagram showing space differences for CPU cooler and cable management.

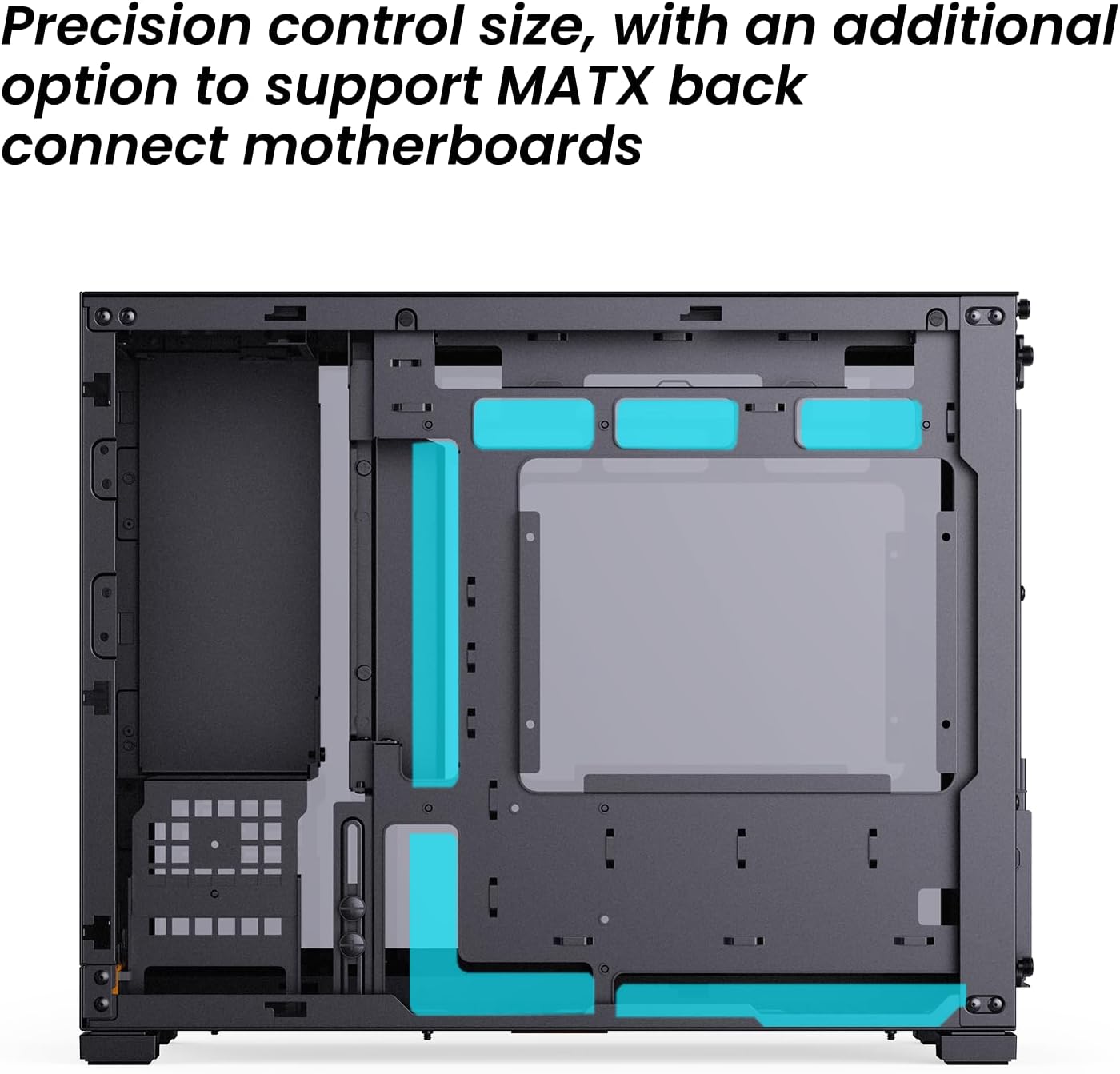

Figure 3.2: Precision control size with an additional option to support MATX back-connect motherboards.

3.2. კომპონენტების ინსტალაციის ნაბიჯები

1. საქმის მომზადება: Remove side panels and any necessary internal brackets to facilitate installation.
2. დააინსტალირეთ დედაპლატი: Secure your Mini-ITX or Micro-ATX motherboard into the selected A or B mode position. Ensure all standoffs are correctly aligned.
3. პროცესორის გამაგრილებელი მოწყობილობის დაყენება: Depending on your chosen motherboard mode, install your air cooler or AIO radiator. For AIOs, the top supports up to 240mm radiators.
4. კვების ბლოკის (PSU) დაყენება: The D32 PRO supports ATX, SFX-L, and SFX PSUs. The power compartment partition is adjustable. If your GPU length is ≤ 286mm and the partition is removed, the PSU length is limited to 200mm. SFX power supplies require an SFX adapter bracket.
5. გრაფიკული ბარათის (GPU) ინსტალაცია: The case supports GPUs up to 365mm in length. Utilize the detachable PCI-E position for easier insertion. Use the included adjustable graphics card support bracket to prevent sag for longer cards.
6. დააინსტალირეთ მეხსიერების დისკები: Install 2.5" SSDs or 3.5" HDDs in the designated drive bays. The case offers flexible storage configurations.
7. Install Case Fans: Optimize airflow by installing fans in the top (2x 120mm/140mm), rear (1x 120mm), and bottom (3x 120mm/2x 140mm) positions.

Figure 3.3: Fan configuration options for optimal cooling within the D32 PRO case.

3.3. კაბელის მენეჯმენტი

The D32 PRO includes an adjustable motherboard cable management cover to conceal complex wires, enhancing the visual appeal of your build. Utilize cable ties and routing channels to maintain a tidy interior, which also improves airflow.

4. ოპერაციული მოსაზრებები

Once assembled, ensure all connections are secure and the case panels are properly reinstalled. The perforated panels on the top, bottom, and side (depending on model) are designed for optimal airflow. Monitor component temperatures, especially during initial operation, to ensure adequate cooling.

5. მოვლა

რეგულარული მოვლა ხელს უწყობს თქვენი კომპონენტების სიცოცხლის გახანგრძლივებას და უზრუნველყოფს ოპტიმალურ მუშაობას.

• მტვრისგან გაწმენდა: Periodically clean dust filters located on the top, bottom, and side panels. These can be removed and cleaned with compressed air or a soft brush.
• ინტერიერის გაწმენდა: Use compressed air to remove dust from internal components such as CPU cooler fins, GPU heatsinks, and fan blades. Ensure the system is powered off and unplugged before cleaning.
• Panel Care: Clean the tempered glass side panel with a soft, lint-free cloth and a mild glass cleaner. Avoid abrasive materials that could scratch the surface.

6. Დიაგნოსტიკა

This section addresses common issues that may arise during or after building your PC in the JONSBO D32 PRO case.

• კომპონენტები არ ჯდება:
  • GPU too long: Verify your GPU length does not exceed 365mm. Ensure the power compartment partition is adjusted or removed if necessary.
  • CPU Cooler too tall: Check if you are in the correct A/B mode for your cooler height. A mode supports up to 170mm, B mode up to 164mm.
  • PSU not fitting: Ensure your PSU length is within 200mm. Note that 16A plugs are not compatible.
• ცუდი ჰაერის ნაკადი/მაღალი ტემპერატურა:
  • Verify all fans are installed correctly and spinning in the intended direction (intake/exhaust).
  • Ensure dust filters are clean and not obstructing airflow.
  • Check for proper cable management to avoid blocking airflow paths.
• წინა შემავალი/გამომავალი პორტები არ მუშაობს:
  • Confirm that all front I/O cables (USB, Audio) are securely connected to the correct headers on your motherboard.

7. სპეციფიკაციები

8. ვიდეო დემონსტრაცია

Watch the official product video for a visual guide on the JONSBO D32 PRO Micro ATX PC Case features and design.

9. გარანტია და მხარდაჭერა

For warranty information and technical support, please refer to the official JONSBO webსაიტზე ან პირდაპირ დაუკავშირდით მათ მომხმარებელთა მომსახურების სამსახურს. შეინახეთ თქვენი შესყიდვის ქვითარი, როგორც შეძენის დამადასტურებელი საბუთი გარანტიის ნებისმიერი მოთხოვნის შემთხვევაში.

Official JONSBO Store: JONSBO Amazon Store
