Rinetiy WW10H 120dB Window and Door Alarm Sensors Instruction Manual

შესავალი

The Rinetiy WW10H Window and Door Alarm Sensors provide an effective and easy-to-install security solution for your home or business. Designed to alert you to unauthorized entry, these sensors can function as a loud alarm or a welcoming chime. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and security.

Image: Rinetiy 120dB Security Alarm with Chime, illustrating the product and its primary function.

პროდუქტის მახასიათებლები

• Door/Window Open Alarm: Alerts you when a door or window is opened, suitable for security or as a customer entry notification.
• Home Security Solution: Ideal for burglar alerts, protecting children's rooms, or preventing unauthorized exits/entries.
• 120 dB Loud Alarm: Produces a powerful sound audible over 800 feet, ensuring immediate attention.
• Mishap Prevention: Helps keep children away from restricted areas like cabinets, pools, or windows, and monitors wandering individuals.
• მარტივი ინსტალაცია: Simple peel-and-stick application with double-sided tape, requiring no drilling or tools.

სურათი: მეტიview of product features including Chime/Alarm, Wireless, 120 dB loud, Slim & Small, Easy to install, and Battery-powered, shown with a burglar illustration.

პაკეტის შიგთავსი

• 10 x Rinetiy WW10H Alarm Units
• 10 x Magnetic Sensors
• AG13 (LR44) Button Cell Batteries (4 per unit, pre-installed or included)
• Double-sided Adhesive Tape for Installation

სპეციფიკაციები

დაყენება

1. ბატარეის მონტაჟი

The Rinetiy WW10H sensors come with 4 AG13 (LR44) button cell batteries already installed. If replacement is needed, gently slide open the battery cover located at the bottom of the main alarm unit and insert new batteries, ensuring correct polarity.

2. სიგნალიზაციის მონტაჟი

1. ზედაპირის გაწმენდა: Ensure the door/window frame and the door/window itself are clean and dry where the alarm and magnetic sensor will be placed.
2. წებოვანი მასალის დამაგრება: Peel off the backing from the double-sided tape on both the main alarm unit and the smaller magnetic sensor.
3. მთავარი ბლოკის განთავსება: Affix the main alarm unit to the door or window frame.
4. Position the Magnetic Sensor: Affix the magnetic sensor to the door or window itself, aligning it with the main alarm unit.
5. Ensure Proper Gap: The critical distance between the main alarm unit and the magnetic sensor must be within 0.4 inches (approximately 1 cm) when the door/window is closed. A larger gap will prevent the alarm from functioning correctly.

სურათი: დეტალური view of the Rinetiy WW10H alarm unit and magnetic sensor, highlighting dimensions (3.0 in x 1.5 in x 0.5 in) and battery compartment.

Image: Diagram showing the alarm unit's components including the 120dB alarm, working/low battery indicator, CHIME-ALARM-OFF mode switch, magnetic part, and batteries cover, with examples of placement on a door, window, fridge, and cabinet.

Setup and Operation Video

Video: An official Rinetiy video demonstrating the setup process and how the alarm and chime modes function when the sensor is triggered.

ოპერაციული ინსტრუქციები

რეჟიმის შერჩევა

Each alarm unit features a three-position switch: CHIME, სიგნალიზაცია, და გამორთულია. Select the desired mode based on your security needs.

განგაშის რეჟიმი

When the switch is set to სიგნალიზაცია, the unit will emit a loud 120 dB siren if the magnetic sensor is separated from the main unit by more than 0.4 inches. This mode is ideal for deterring intruders or alerting you to unauthorized access.

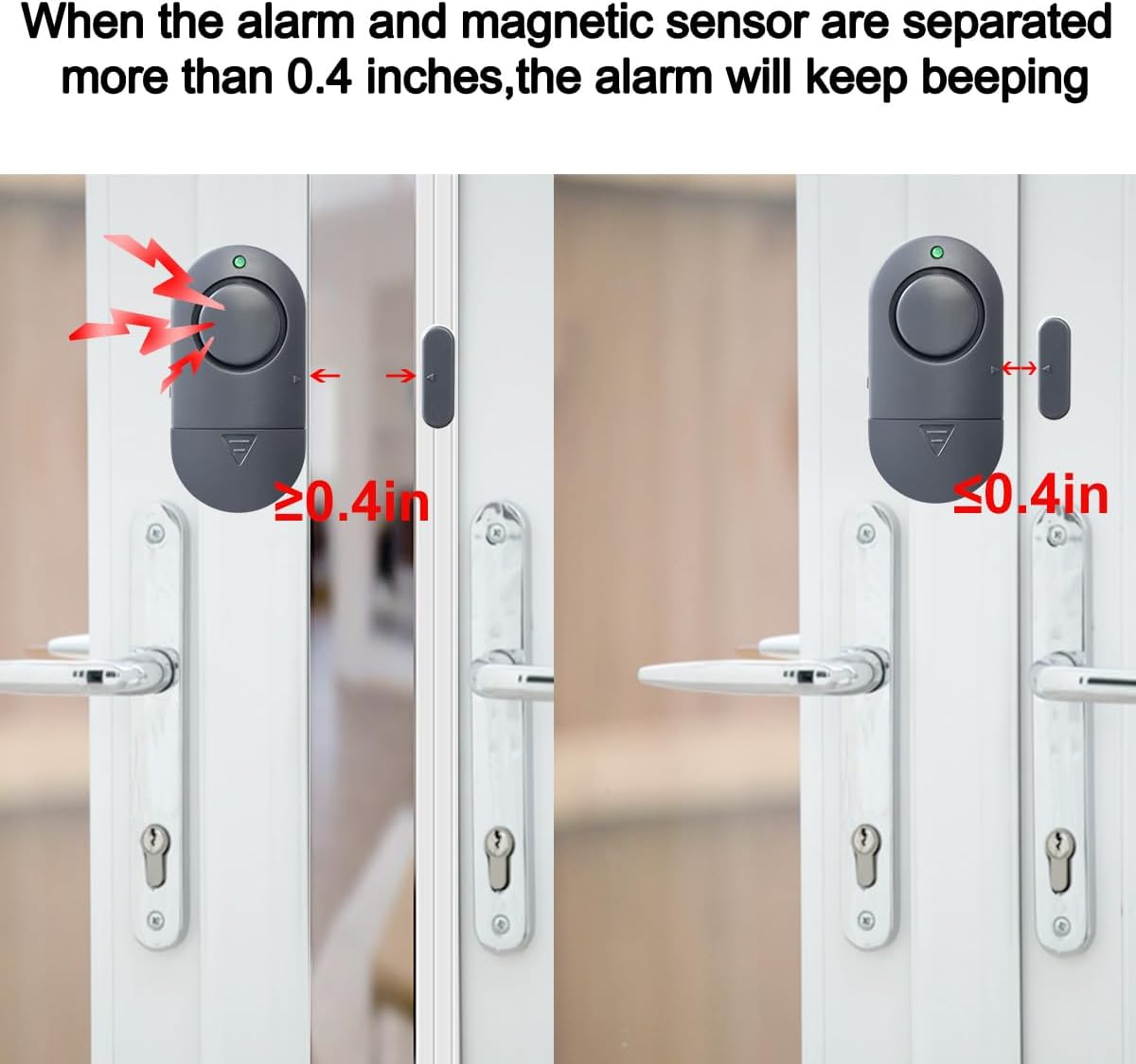

Image: Illustration showing the alarm triggering when the main unit and magnetic sensor separate by more than 0.4 inches.

Image: A burglar attempting to open a door, triggering the alarm, demonstrating its use as a burglar alert.

ზარის რეჟიმი

When the switch is set to CHIME, the unit will produce a pleasant chime sound each time the magnetic sensor separates from the main unit. This mode is useful for knowing when a door or window is opened, such as for customer entry in a store or monitoring children's movements.

Image: A person entering a store, triggering the door chime, illustrating its use as a welcoming notification.

გამორთული რეჟიმი

Setting the switch to გამორთულია deactivates the alarm unit, preventing any sound output. This is useful when you need to open the door or window frequently without triggering an alert.

განაცხადი მაგamples

• Window Alarm: Secure windows against unauthorized opening.
• Pool Alarm: Place on pool gates or doors to alert when opened, enhancing child safety.

Image: A child looking out a window with an alarm unit installed, demonstrating its use as a window alarm.

Image: An alarm unit installed on a door leading to a pool area, illustrating its function as a pool alarm.

მოვლა

ბატარეის გამოცვლა

When the indicator light on the alarm unit flashes continuously or the sound becomes weak, it's time to replace the batteries. Each unit requires 4 AG13 (LR44) button cell batteries. Ensure proper disposal of old batteries according to local regulations.

დასუფთავება

Wipe the alarm units and magnetic sensors with a soft, dry cloth. Do not use abrasive cleaners or immerse the units in water.

პრობლემების მოგვარება

• Alarm not sounding/chime not working:
  • Check if the mode switch is set to OFF. Set it to CHIME or ALARM.
  • Ensure the gap between the main unit and the magnetic sensor is less than 0.4 inches when closed.
  • Replace batteries if the indicator light is flashing or the sound is weak.
• Alarm sounds continuously:
  • Verify that the main unit and magnetic sensor are properly aligned and within 0.4 inches when the door/window is closed.
  • Check for any obstructions preventing the door/window from closing completely.

უსაფრთხოების ინფორმაცია

• Keep out of reach of small children to prevent choking hazards from small parts or batteries.
• Do not attempt to disassemble or modify the alarm units.
• Avoid exposing the units to extreme temperatures, direct sunlight, or moisture.
• This device is intended as an alert system and should not be considered a substitute for comprehensive security measures.

გარანტია და მხარდაჭერა

For warranty information or technical support, please refer to the product packaging or contact Rinetiy customer service through your purchase platform. Keep your purchase receipt for warranty claims.
