FOHERE 15QT Commercial Food Mixer Instruction Manual

1. შესავალი

Thank you for choosing the FOHERE 15QT Commercial Food Mixer. This heavy-duty stand mixer is designed for commercial use in various settings such as bakeries, pizzerias, restaurants, and hotels. It features a powerful 600W motor, a large 15-quart stainless steel bowl, and three adjustable speeds to handle a wide range of mixing tasks. This manual provides essential information for safe and efficient operation, maintenance, and troubleshooting.

Image 1.1: FOHERE 15QT Commercial Food Mixer highlighting its powerful motor and durable, food-grade stainless steel construction.

2. უსაფრთხოების ინსტრუქციები

Please read all safety instructions carefully before operating the mixer to prevent injury or damage to the appliance.

• ელექტრო უსაფრთხოება: Ensure the mixer is connected to a grounded 110V power outlet. Do not operate with wet hands or in wet conditions.
• პირადი უსაფრთხოება: Keep hands, hair, and clothing away from moving parts during operation. Always use the safety guard.
• უსაფრთხოების მცველი: The mixer is equipped with a safety guard that auto-locks during operation. The machine will shut off if the guard is opened accidentally or is loose. Ensure the safety guard is properly closed before starting the mixer.
• სიჩქარის შეცვლა: Always stop the mixer before changing speeds or attachments. Refer to the speed control lever for appropriate settings for each attachment.
• სტაბილურობა: The mixer features non-slip feet to reduce vibration and noise. Ensure the mixer is placed on a stable, level surface.
• გადაუდებელი გაჩერება: Familiarize yourself with the separate START and STOP buttons for safe control. The red STOP button can be pulled out to reset the system after an emergency stop or power outage.
• ბავშვები და არაავტორიზებული პირები: Keep children and unauthorized personnel away from the mixer during operation.

Video 2.1: Demonstrates the power-on sequence and safety features of a commercial mixer, including the start/stop buttons and bowl lift mechanism.

3. პროდუქტის კომპონენტები და მახასიათებლები

The FOHERE 15QT Commercial Food Mixer is built with high-quality materials and thoughtful design for optimal performance.

• ძლიერი 600 W ძრავა: Gear-driven motor ensures durability and consistent performance for heavy-duty tasks.
• 15QT უჟანგავი ფოლადის თასი: Food-grade 304 stainless steel, rust-resistant, corrosion-proof, and easy to clean. Designed to handle large quantities.
• 3-სიჩქარიანი კონტროლი: Three precision speeds for various mixing needs:
  • Low (135 RPM): Ideal for kneading heavy dough.
  • საშუალო (220 RPM): Suitable for mixing fillings and batters.
  • მაღალი (409 RPM): Perfect for whipping cream and egg whites.
• 3-in-1 Mixing Attachments: Includes a spiral dough hook, a flat beater, and a wire whisk.
• 60 წუთიანი ტაიმერი: Allows for hands-free operation and precision control.
• Adjustable Bowl: Features a crank handle to easily raise and lower the mixing bowl.
• არ მოცურების ფეხები: Equipped with anti-slip silicone suction cups for stable operation and reduced vibration.

Image 3.1: The 15QT high-capacity stainless steel bowl, capable of mixing large quantities of ingredients.

Image 3.2: Visual representation of the three-speed adjustment settings (Low, Medium, High) and their recommended uses with different attachments.

Image 3.3: Close-up of thoughtful details including the security shield, 60-minute timer, adjustable bowl mechanism, and non-slip feet.

4. დაყენება

Follow these steps to set up your FOHERE Commercial Food Mixer:

1. შეფუთვა: ფრთხილად ამოიღეთ ყველა კომპონენტი შეფუთვიდან. შეამოწმეთ დაზიანებისთვის.
2. განთავსება: Place the mixer on a clean, stable, and level surface. Ensure there is adequate space around the mixer for operation and ventilation.
3. თასის დამონტაჟება: Lower the bowl lift using the crank handle. Align the bowl's rear pin with the hole in the mixer's support bracket, then push the bowl into place. Secure the bowl by engaging the side clamps.
4. აქსესუარის მიმაგრება: Select the appropriate mixing attachment (dough hook, flat beater, or wire whisk) for your task. Slide the attachment onto the mixer shaft and rotate it until it locks into place.
5. Raise Bowl: Use the crank handle to raise the mixing bowl until it is securely in the operating position.
6. Close Safety Guard: Ensure the wire safety guard is properly closed over the bowl. The mixer will not operate if the guard is open.

Video 4.1: Demonstrates the installation of attachments, bowl, and the process of raising the bowl and closing the safety shroud.

Video 4.2: Shows the process of adding ingredients, installing the bowl, and securing it to the mixer.

5. საოპერაციო ინსტრუქციები

Operating your FOHERE Commercial Food Mixer is straightforward once properly set up.

1. დაამატეთ ინგრედიენტები: With the mixer off and the bowl lowered, add your ingredients to the mixing bowl.
2. აირჩიეთ სიჩქარე: Use the speed control lever to select the desired speed (Low, Medium, or High) based on your recipe and attachment. Remember to stop the mixer before changing speeds.
3. ტაიმერის დაყენება: Turn the timer knob to the desired mixing duration (up to 60 minutes). The mixer will automatically stop when the timer runs out.
4. მიქსერის დაწყება: შერევის დასაწყებად დააჭირეთ მწვანე დაწყებას.
5. მიქსერის გაჩერება: To stop the mixer at any time, press the red STOP button.

Video 5.1: Demonstrates how to turn on the mixer, including setting the timer and pressing the start button.

Video 5.2: Shows the mixer in operation, highlighting the speed control and mixing process.

6. მოვლა და დასუფთავება

რეგულარული გაწმენდა და მოვლა უზრუნველყოფს თქვენი მიქსერის ხანგრძლივობას და ოპტიმალურ მუშაობას.

• გაწმენდის წინ გამორთეთ: Always unplug the mixer from the power outlet before cleaning or performing any maintenance.
• Clean Bowl and Attachments: The stainless steel bowl and mixing attachments are removable for easy cleaning. Hand wash them with warm, soapy water and dry thoroughly.
• Clean Mixer Body: Wipe down the exterior of the mixer body with a damp ქსოვილი. არ ჩაყოთ მიქსერის კორპუსი წყალში.
• შეზეთვა: Periodically check for any unusual noises. If the mixer seems to be struggling or making high-pitched sounds, it may require lubrication or professional inspection.

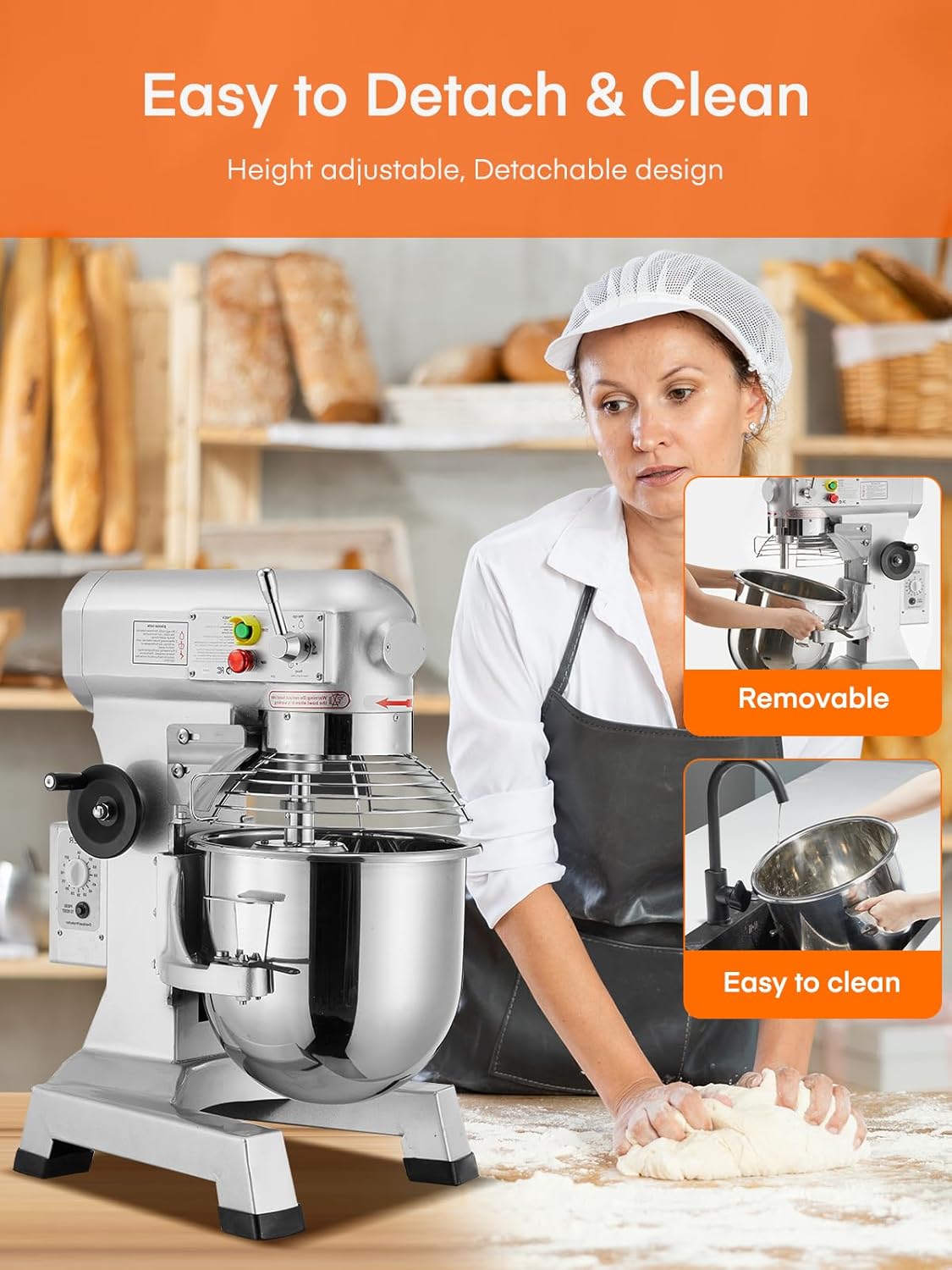

Image 6.1: Illustrates the easy-to-detach and clean design of the mixing bowl and attachments.

7. Დიაგნოსტიკა

თუ თქვენს მიქსერთან დაკავშირებით რაიმე პრობლემა შეგექმნათ, გაეცანით შემდეგ რჩევებს:

• მიქსერი არ ირთვება:
  • დარწმუნდით, რომ დენის კაბელი საიმედოდ არის ჩართული სამუშაო განყოფილებაში.
  • Check if the safety guard is properly closed and the bowl is raised and locked. The mixer has a safety interlock that prevents operation if these conditions are not met.
  • If the red STOP button is pushed in, twist and pull it outwards to reset the system before pressing the green START button.
• არაჩვეულებრივი ხმები:
  • Stop the mixer immediately.
  • Check if attachments are correctly installed and not scraping the bowl.
  • Ensure the mixer is on a stable surface.
  • If noises persist, contact customer support.
• გადატვირთვის დამცავი: If the mixer stops unexpectedly, it might be due to an overload. Press the black 'PRESS TO RESET' button located near the timer to reset the overload protector. Reduce the load if necessary.

Video 7.1: Demonstrates the correct procedure to ensure the mixer starts, including checking the safety guard and resetting the stop button.

8. სპეციფიკაციები

9. გარანტია და მხარდაჭერა

For warranty information or technical support, please refer to the product packaging or contact FOHERE customer service directly. Keep your purchase receipt for any warranty claims.
