1. შესავალი
The Shelly 3EM-63T Gen3 is a smart energy meter designed for monitoring three-phase electrical systems or three independent single-phase circuits. This device provides precise measurements, real-time data, and data logging capabilities, making it suitable for both home and business energy management, as well as solar energy monitoring. It integrates seamlessly into various smart home and professional setups.
Key features include 4-quadrant measurement, optical pulse indication, Accuracy Class B, and support for photovoltaic systems. The Gen3 series incorporates Matter Version 1.2, an ESP-Shelly-C38F chip with 8 MB Memory, and Virtual Components for enhanced integration.
2. უსაფრთხოების ინფორმაცია
WARNING: Installation of this device involves working with high voltage electricity. To avoid risk of electric shock or death, installation must be performed by a licensed electrician or qualified professional in accordance with all applicable electrical codes and regulations.
- Always disconnect the main power supply before performing any installation or maintenance.
- დარწმუნდით, რომ ყველა კავშირი უსაფრთხო და სათანადოდ იზოლირებულია.
- არ დაუშვათ მოწყობილობა წყალში ან ექსტრემალურ ტემპერატურაზე.
- გამოიყენეთ მოწყობილობა მხოლოდ მისი დანიშნულებისამებრ.
3. პროდუქტი დასრულდაview
The Shelly 3EM-63T Gen3 is a compact device designed for DIN rail mounting within an electrical panel. It features indicators for connection status and energy flow, along with a reset button.
Image: The Shelly 3EM-63T Gen3 energy meter shown with its product packaging. The device is white with indicators for Connection and Energy, and a Reset button. It has three flat terminals for current measurement.
3.1 Dimensions and Connectivity
Image: A diagram illustrating the dimensions of the Shelly 3EM-63T Gen3 (1.65 in x 2.13 in x 1.22 in) and its wireless connectivity ranges. Wi-Fi range is up to 100 ft indoors and 160 ft outdoors. Bluetooth range is up to 33 ft indoors and 100 ft outdoors.
The device dimensions are approximately 1.65 x 2.13 x 1.22 inches. It supports Wi-Fi for network communication and Bluetooth for initial inclusion and as a gateway for Shelly BLU series devices.
4. დაყენება და ინსტალაცია
The Shelly 3EM-63T Gen3 is designed for installation within an electrical panel. Due to the nature of electrical work, installation must be performed by a licensed electrician or qualified professional.
4.1 გაყვანილობა
The 3EM-63T Gen3 uses flat terminals for current measurement and is typically mounted above or below the circuit breaker. Ensure correct phase alignment and secure connections.
Image: A visual comparison between Shelly 3EM-63T Gen3 and 3EM-63W Gen3, highlighting their wiring and mounting differences. The 3EM-63T Gen3 features flat terminals and mounts above or below the circuit breaker, while the 3EM-63W Gen3 uses color-coded wires and mounts below the circuit breaker. A detailed wiring diagram for the 3EM-63T is also shown.
4.2 Initial Power-Up and Device Inclusion
- After professional installation and power restoration, the device will power on.
- ჩამოტვირთეთ Shelly-ის ჭკვიანი კონტროლის აპლიკაცია თქვენი მოწყობილობის აპლიკაციების მაღაზიიდან (iOS ან Android).
- Follow the in-app instructions to add your Shelly 3EM-63T Gen3 to your Wi-Fi network and Shelly account. Bluetooth is used for the initial inclusion process.
5. საოპერაციო ინსტრუქციები
The Shelly 3EM-63T Gen3 provides comprehensive energy monitoring and management capabilities through the Shelly Smart Control App and various integrations.
5.1 Energy Monitoring
Image: The Shelly 3EM-63T Gen3 device installed within an electrical panel, demonstrating its compact integration for energy metering.
მოწყობილობა ზომავს ტომსtages from 220-240 V AC and currents up to 63 A per phase. Real-time data is accessible via the Shelly Smart Control App, allowing you to monitor energy consumption across three-phase systems or individual circuits.
5.2 მონაცემთა ხელახლა აღრიცხვა
The Shelly 3EM-63T Gen3 includes built-in data storage for up to 7 days at 1-minute intervals. This historical data can be accessed through the Shelly app for detailed analysis of energy usage patterns.
5.3 Energy Management Applications
Image: The Shelly 3EM-63T Gen3 depicted in a business environment, illustrating its use for home and business energy management to identify high-energy-consuming devices and optimize usage.
Home Energy Management: Gain insights into appliance or circuit consumption to identify high-usage devices. Support efficient scheduling and enable local automation to reduce costs.
Cost Optimization for Businesses: Track energy use across three circuits to monitor machines, departments, or processes. This helps identify inefficiencies and allocate costs accurately.
Image: The Shelly 3EM-63T Gen3 shown in a solar panel field, representing its capability for solar energy monitoring to track production and consumption.
Solar Energy Monitoring: Ideal for photovoltaic (PV) systems, the device tracks both energy production and consumption, helping to align usage with generation and maximize renewable energy benefits.
5.4 Smart Control App and Integrations
The Shelly Smart Control App allows remote control, notifications for automated events, device configuration, and creation of personalized scenes. The device is compatible with various smart home platforms including Alexa, Google Home, Home Assistant, Smart Things, Apple HomeKit, Homey, and supports MQTT.
6. მოვლა
The Shelly 3EM-63T Gen3 requires minimal maintenance. Ensure the device is kept clean and free from dust. Periodically check for available firmware updates through the Shelly Smart Control App to ensure optimal performance and access to new features.
7. Დიაგნოსტიკა
If you encounter issues with your Shelly 3EM-63T Gen3, consider the following:
- ძალა არ არის: Verify that the main power supply is on and all wiring connections are secure.
- Wi-Fi კავშირი არ არის: Check your Wi-Fi router and network settings. Ensure the device is within range of your Wi-Fi signal. Shielded electrical enclosures can sometimes interfere with Wi-Fi signals.
- მოწყობილობა არ რეაგირებს: Press the reset button on the device. If the issue persists, try power cycling the device by temporarily disconnecting and reconnecting its power supply.
- არასწორი წაკითხვები: Ensure the current transformer connections are correctly installed and aligned with the phase wires.
Refer to the LED indicators (Connection, Energy) on the device for status information. Consult the Shelly support resources for more detailed troubleshooting guides.
8. სპეციფიკაციები

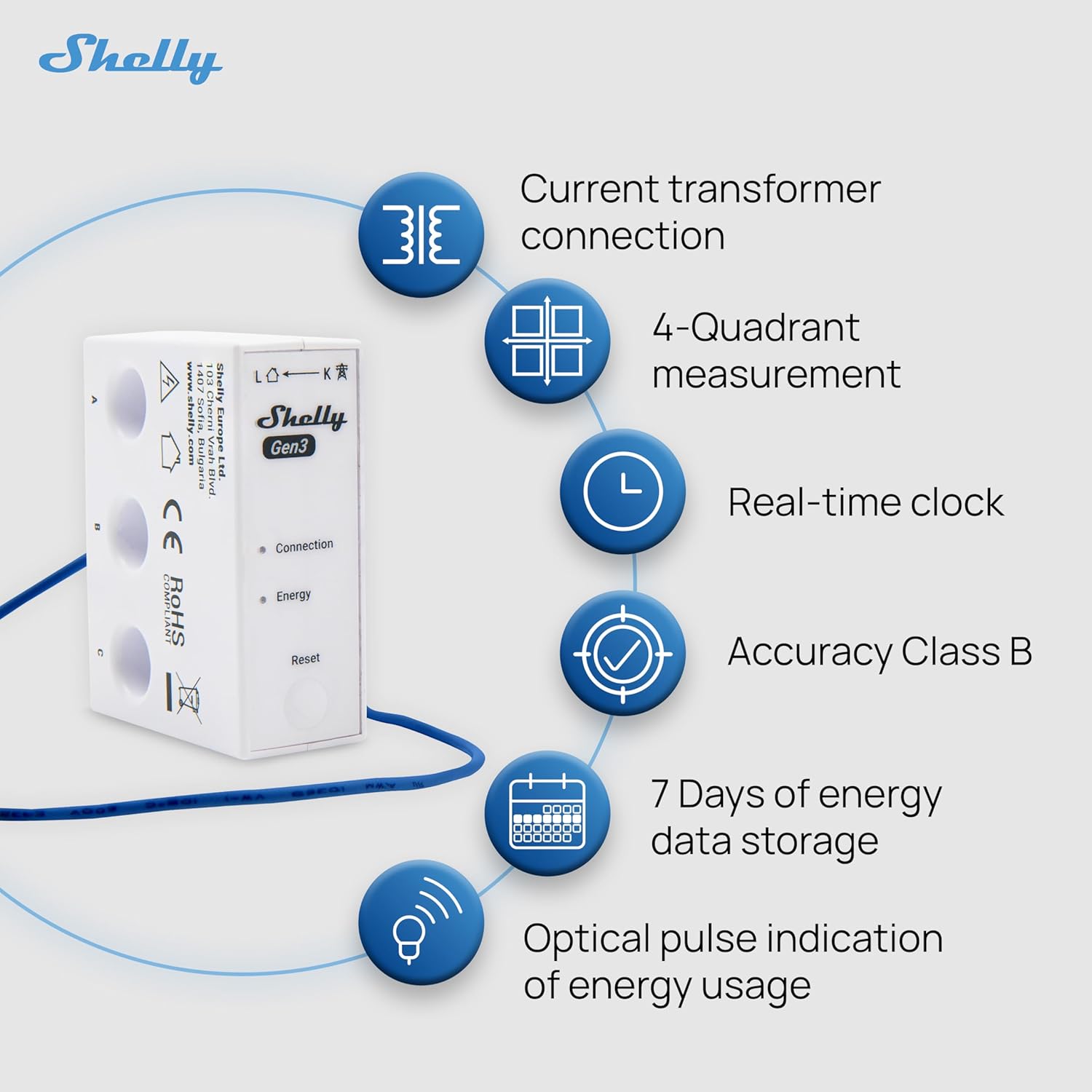

Image: An infographic listing key features of the Shelly 3EM-63T Gen3, including current transformer connection, 4-quadrant measurement, real-time clock, Accuracy Class B, 7 days of energy data storage, and optical pulse indication of energy usage.
| ფუნქცია | დეტალი |
|---|---|
| მოდელი | 3EM-63T Gen3 |
| შეყვანის მოცულობაtage | 220-240 ვ AC |
| Max Current per Phase | 63 Amps |
| გაზომვის ტიპი | 3-Phase Energy Meter, 4-Quadrant Measurement |
| სიზუსტის კლასი | კლასი B |
| მონაცემთა აღრიცხვა | 7 days at 1-minute intervals |
| დაკავშირება | Wi-Fi, Bluetooth |
| ჩიპსეტი | ESP-Shelly-C38F with 8 MB Memory |
| მატერიის მხარდაჭერა | ვერსია 1.2 |
| პროდუქტის ზომები | 1.65 x 2.13 x 1.22 ინჩი |
| წონა | 1.83 უნცია |
| სამონტაჟო ტიპი | პანელის მთა |
| საქონლის მოდელის ნომერი | 3800235261941 |
9. გარანტია
The Shelly 3EM-63T Gen3 comes with a 3-year device warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use conditions. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
10. მხარდაჭერა
For further assistance, technical support, or to access additional resources, please contact Shelly Customer Service or visit our online support channels.
- Online Knowledge Base: Access product specifications, guidelines, and FAQs.
- ტექნიკური მხარდაჭერა: Contact our professional support team for personalized assistance.
- საზოგადოების ფორუმი: Join Facebook Support Groups and the Reddit community to connect with other users and share experiences.
- Shelly Academy: Explore video tutorials and webinars for in-depth learning.
Visit the Shelly Support Portal: https://support.shelly.cloud/en/support/home
