1. შესავალი
This manual provides detailed instructions for the assembly, operation, and maintenance of your new DWVO Vanity Desk Set. Please read this manual thoroughly before use to ensure proper function and safety. Keep this manual for future reference.
Image 1.1: The DWVO Vanity Desk Set, featuring a large LED mirror, multiple drawers, and a matching stool.
2. პროდუქტის მახასიათებლები
- Elegant Lighting & Spacious Mirror: Features a 46-inch LED mirror with 3 adjustable light colors (Warm White, Cool White, Warm Yellow) and dimmable brightness. Includes a removable magnifying mirror for detailed tasks.
- მოსახერხებელი დატენვა: Equipped with 1 Type-C port, 1 Type-A port, and 2 AC outlets to keep your devices charged and beauty tools powered.
- Ampშენახვა: Includes 10 drawers of two different sizes for organizing skincare, cosmetics, and accessories. The accompanying stool offers hidden storage, and a built-in hair dryer rack provides convenient access.
- Sturdy & Chic Design: Constructed from engineered wood with a tempered glass top, ensuring durability and a modern aesthetic.
- Effortless Assembly & Safety Features: Designed for straightforward assembly with pre-labeled parts and clear instructions. Includes non-tipping kits for enhanced stability and safety.
3. უსაფრთხოების ინფორმაცია
გაფრთხილება: ამ უსაფრთხოების ინსტრუქციების შეუსრულებლობამ შეიძლება გამოიწვიოს დაზიანება ან პროდუქტის დაზიანება.
- Always follow the assembly instructions carefully for safe setup and use.
- Utilize the provided non-tipping kits to securely anchor the vanity to a wall, preventing accidental tipping.
- Keep the vanity away from direct heat sources and open flames.
- Do not place excessively heavy objects on the mirror or glass surfaces to prevent breakage.
- Do not use the vanity if the power cord is damaged, or if it emits unusual noises or odors. Immediately unplug the unit if such conditions occur.
- Unplug the vanity from the power outlet when not in use and before cleaning.
- Do not use the vanity if the mirror is cracked or broken. Contact customer support for replacement parts.
- ეს პროდუქტი განკუთვნილია მხოლოდ შიდა გამოყენებისთვის.
4. მონტაჟი და აწყობა
The DWVO Vanity Desk Set requires assembly. All necessary parts and easy-to-follow instructions are included. It is recommended to have a clear, spacious area for assembly.
4.1 გახსნა და ნაწილის იდენტიფიკაცია
Carefully unpack all components and verify against the parts list in your instruction manual. The product may arrive in two separate boxes.
Image 4.1: All components laid out for assembly.
4.2 აწყობის პროცესი
Follow the step-by-step instructions provided in the included manual. Ensure all screws and bolts are tightened securely. The drawers are designed to slide easily into place. The mirror component is typically installed last.
Video 4.1: Assembly demonstration of the DWVO Vanity Desk Set, showing the process of putting together the desk and mirror components.
4.3 Securing the Vanity
Attach the non-tipping kits to the back of the vanity and to a wall stud using appropriate hardware. This step is crucial for safety, especially in households with children or pets.
Image 4.2: Product dimensions for placement planning.
5. საოპერაციო ინსტრუქციები
5.1 LED სარკის მუშაობა
The integrated LED mirror features a touch-sensitive button for control:
- ჩართვა/გამორთვა: Tap the touch button once to turn the LED lights on or off.
- სინათლის ფერის დარეგულირება: With the lights on, tap the button repeatedly to cycle through the three available light colors: Warm White, Cool White, and Warm Yellow.
- სიკაშკაშის კორექტირება: To dim or brighten the lights, press and hold the touch button. The brightness will gradually adjust. Release the button when the desired brightness is achieved.

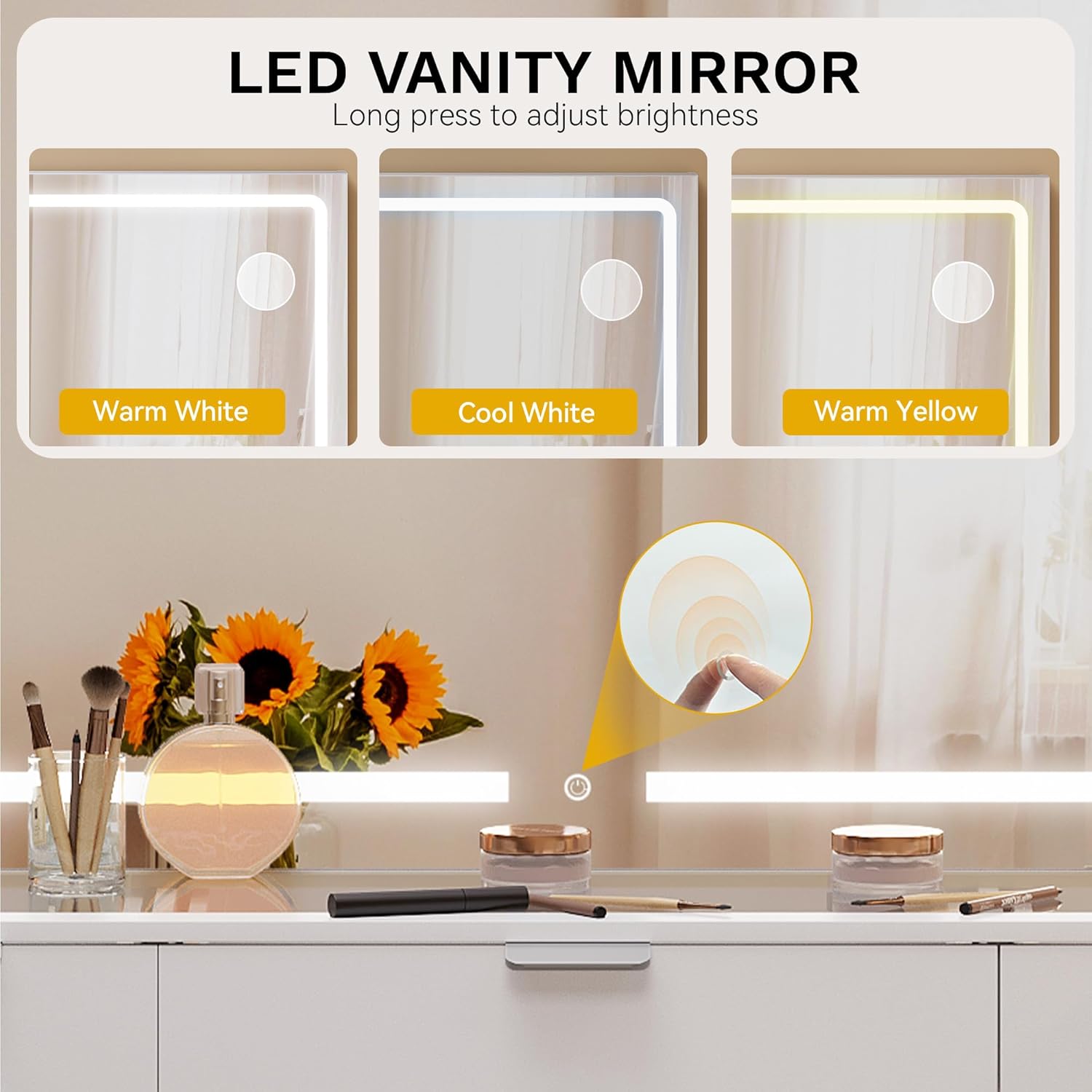

Image 5.1: LED mirror controls for light color and brightness adjustment.
5.2 Power Outlets and USB Ports
The vanity desk includes a built-in power strip with 2 standard AC outlets, 1 USB Type-A port, and 1 USB Type-C port. These are located on the side of the desk for convenient access.
- შეაერთეთ თმის საშრობი, გurling iron, phone charger, or other electronic devices as needed.
- დარწმუნდით, რომ მოწყობილობები თავსებადია მოწოდებულ მოცულობასთანtage and current ratings (125V/12A for AC, 5V/2A for USB).
Image 5.2: Integrated power outlets and hair dryer rack.
5.3 Magnifying Mirror
A removable magnifying mirror is included, which attaches to the main mirror surface via suction cups. This allows for precise application of makeup or detailed grooming tasks.
- Attach the magnifying mirror to any desired position on the main mirror.
- Ensure the suction cups are clean and dry for optimal adhesion.
5.4 Storage Drawers and Stool
The vanity features 10 drawers for organizing various items. The accompanying stool also provides hidden storage space.
- Utilize the different drawer sizes to categorize and store your cosmetics, skincare products, and accessories.
- Lift the cushioned top of the stool to access its internal storage compartment.
ვიდეო 5.1: დასრულდაview of the vanity desk, demonstrating drawer functionality, mirror lighting, and the stool's hidden storage.
6. მოვლა
6.1 დასუფთავება
- ზედაპირები: გაწმინდეთ ყველა ზედაპირი რბილი, დamp ქსოვილი. მოერიდეთ აბრაზიულ საწმენდებს ან უხეში ქიმიკატებს, რამაც შეიძლება დააზიანოს ზედაპირი.
- სარკე: სარკე გაწმინდეთ მინის საწმენდი საშუალებით და უბუსუსო ქსოვილით. არ შეასხუროთ საწმენდი საშუალება პირდაპირ სარკეზე; ჯერ ქსოვილზე წაისვით.
- შუშის ზედაპირი: For the tempered glass top, use a glass cleaner. Be careful not to let liquids seep into the drawers below.
6.2 ზოგადი მოვლა
- Regularly check all screws and connections to ensure they remain tight. Tighten if necessary.
- Avoid exposing the vanity to excessive moisture or direct sunlight for prolonged periods.
- Do not drag the vanity when moving it; always lift to prevent damage to the legs and floor.
7. Დიაგნოსტიკა
| პრობლემა | შესაძლო მიზეზი | გამოსავალი |
|---|---|---|
| LED სარკის განათება არ ინთება. | Power cord unplugged; power outlet not working; faulty connection. | Ensure the power cord is securely plugged into a functional outlet. Check the connection between the mirror and the desk. |
| Lights are not dimming/changing color. | Incorrect operation of touch button. | Tap the button to change color. Press and hold the button to adjust brightness. |
| დენის წყაროები/USB პორტები არ მუშაობს. | Power cord unplugged; device not compatible; circuit overload. | Verify the main power cord is plugged in. Check device compatibility. Avoid overloading the outlets. |
| უჯრები ხისტია ან შეუფერხებლად არ სრიალებს. | Improper assembly; obstruction in drawer slides. | Recheck assembly instructions for drawer slides. Remove any obstructions. |
| ამაოება არასტაბილურად გამოიყურება. | Loose connections; non-tipping kit not installed. | Tighten all assembly screws. Ensure the non-tipping kit is properly installed and anchored to a wall. |
8. სპეციფიკაციები
- მოდელის ნომერი: MADWVgVmC7
- პროდუქტის ზომები: 15.7" სიღრმე x 46" სიგანე x 55.9" სიმაღლე (39.9 სმ სიღრმე x 116.8 სმ სიგანე x 142 სმ სიმაღლე)
- ნივთის წონა: 122.4 ფუნტი (55.5 კგ)
- ჩარჩო მასალა: ინჟინერიული ხე
- სარკის ტიპი: LED Mirror with 3 Dimmable Light Colors
- დენის განყოფილებები: 2 AC Outlets (125V/12A), 1 USB Type-A Port (5V/2A), 1 USB Type-C Port (5V/2A)
- შენახვა: 10 Drawers, Hidden Storage Stool, Hair Dryer Rack
- ასამბლეა საჭიროა: დიახ
9. გარანტია და დახმარება
Your DWVO Vanity Desk Set is covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty details, including duration and coverage, please refer to the warranty card included with your product or contact DWVO customer support.
მომხმარებელთა მხარდაჭერა
If you encounter any issues with your product, require replacement parts, or have questions not addressed in this manual, please contact DWVO customer support through the retailer where the product was purchased or visit the official DWVO webსაიტი საკონტაქტო ინფორმაციისთვის.
Please have your model number (MADWVgVmC7) and purchase date ready when contacting support.
